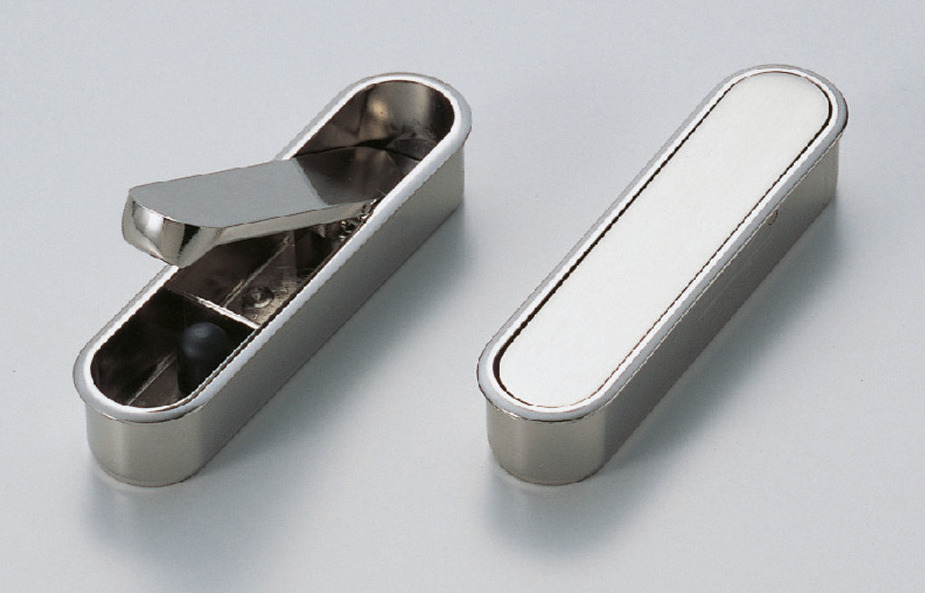

High quality zinc cast alloy ZDC handle for recessing. Inlet handle FH-100AM-00 and FH-100BM-00 from Sugatsune / LAMP® (Japan)

$ 24,99$ 25,99

Description

High quality handle FH-100AM-00 and FH-100BM-00 made of zinc casting alloy (ZDC)

Application:

This beautiful handle fits perfectly with all doors, as well as sliding doors in particular, as it can be folded when not in use.

The minimum thickness of the door is 25 mm.

The handle can also be used as a hook.

The high quality inlet handle FH-100 from Sugatsune / LAMP® (Japan) is available in two different versions:

  • Without spring (FH-100AM-00) – the handle remains in any position during opening
  • With spring (FH-100BM-00) – the handle automatically returns to the closed position when released

Incl. Flat round head screws for easy installation.

Can also be installed in the sheet metal – this requires a separate bracket.

Features:

  • High quality design
  • High quality
  • Long service life

Assembly:

The FH-100 inlet handle is milled into the door surface (see drawing).

blank
Installation of the inlet handle FH-100AM-00 and FH-100BM-00 from Sugatsune / LAMP



The fastening is done with the help of flat round head screws included in the scope of delivery.

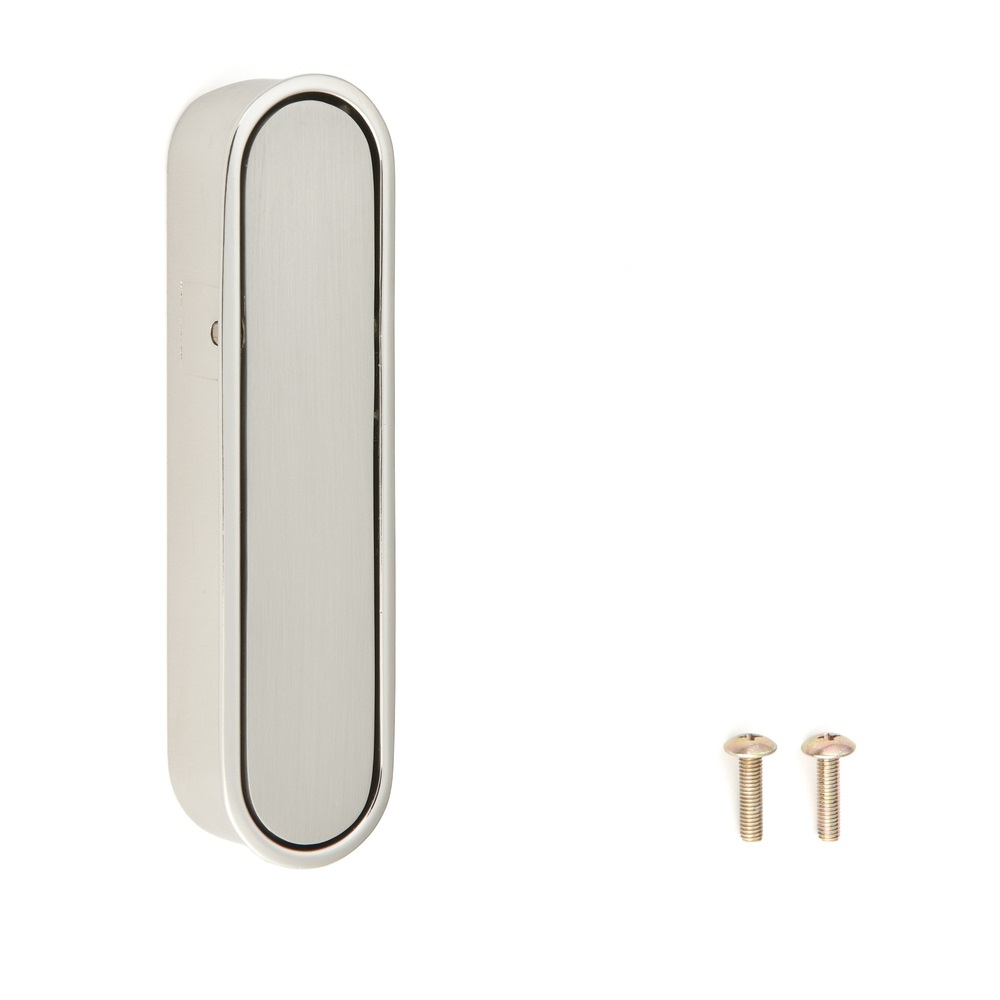

Included in delivery:

  • 1 piece inlet handle FH-100AM-00 or FH-100BM-00
  • 2 pcs flat round head screws (M3 × 14)

Material:

  • Housing: Zinc casting alloy (ZDC)

Technical data:

  • Length: 97 mm
  • Mounting depth: 14.5 mm
  • Weight: 103.5 g
  • Distance between screws: 42 mm

Surface:

  • Housing: nickel plated
  • Handle: nickel plated, matt

Dimensions, see drawing:

blank
Inlet handle FH-100AM-00 and FH-100BM-00 from Sugatsune / LAMP, drawing



Manufacturer’s reference number:

Article description Item number
FH-100AM-00 100-010-444
FH-100BM-00 100-010-445



Manufacturer: SUGATSUNE / LAMP® (Japan)

SUGATSUNE, The manufacturer of the brand LAMP®

Additional information

Type

FH-100AM-00: without spring, FH-100BM-00: with spring
