Description

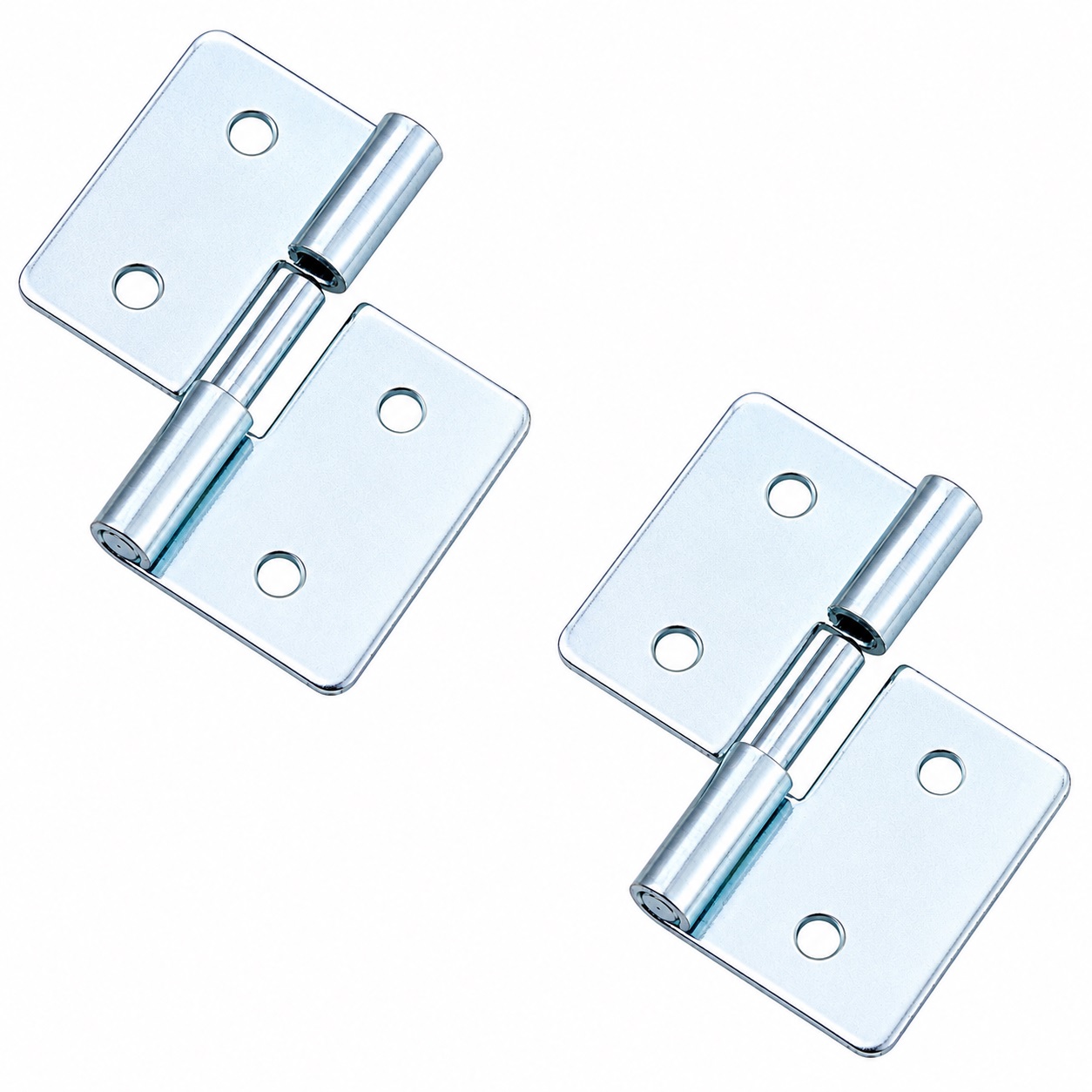

2 pieces compact lifting hinge, made of robust steel, surface: galvanized, yellow, B-56-L (10149), height: 35 mm (1-3/8″), version: left, load capacity: 2 kg (5 lbs)

Application:

Robust plug-in hinge for small doors, maintenance hatches, electronics housings and much more.

The compact push-in hinge B-56-L is used for the movable connection of small doors, flaps and housing parts.

Thanks to the two-part plug-in construction, the door can be lifted off the permanently mounted hinge part if necessary without having to unscrew the hinge.

The left-hand version enables targeted use with doors and equipment flaps hinged accordingly to the left.

With a height of only 35 mm (1-3/8″), the hinge is particularly suitable for compact device housings, measuring instruments as well as electronic and technical equipment.

The cold-rolled steel sheet ensures a stable construction, while the galvanized and chromated surface protects the steel from corrosion.

When using two hinges mounted on top of each other, the B-56-L lifting hinge is suitable for lightweight doors with a reference weight of 2 kg.

Version: left. For left-hinged doors and flaps.

The high-quality B-56-L suspension hinges are ideal for, among other things:

• Device Enclosures
• Audio Devices
• Communication Devices
• Measuring instruments
• Small doors
• Maintenance hatches
• Housing

Material:

• The B-56-L flagship hinges are made of robust steel
• Steel is ideal for furniture fittings and industrial fittings because it is both robust and durable, which ensures high resilience and long service life of the fittings

Surface:

• Galvanized, yellow
• The galvanized surface protects against rust and corrosion

Assembly:

• The fastening is done with screws with approx. ⌀2.3 to 2.5 mm, preferably with a lens or round head (not included)
• The B-56-L push-in hinge is positioned on the door or flap and the associated frame or housing
• Pay attention to the left-hand version so that the hinge is mounted to match a left-hinged door or equipment flap
• First, the positions of the four mounting holes must be marked according to the hole pattern
• Depending on the material used, suitable fastening holes or pre-drillings must then be drilled
• The two hinge halves are attached to the movable and fixed component with suitable screws
• The hinge axes of at least two hinges mounted on top of each other must align exactly
• Then the moving part is attached to the hinge pin from above
• To remove the door or flap, it is lifted and removed from the permanently mounted hinge part

Features:

• Version: left
• Weight: 8 g (for 2 pieces: 16 g)
• Load capacity (load capacity): 2 kg (5 lbs) – for 2 pieces
• Height: 35 mm (1-3/8″)
• Available in 2 versions: left (B-56-L) and right (B-56-R)
• Easy installation, stable
• Compact push-in hinge for small doors
• Detachable two-piece construction
• Door or flap can be removed without unscrewing the hinge
• Material thickness: 0.8 mm (1/32″)
• Surface treatment MFZn-C
• 4 mounting holes
• ⌀3 mm (1/8″) hinge pin
• Suitable for measuring instruments and technical devices
• RoHS10 compliant
• Galvanized, yellow
• steel, robust
• High brand quality from TAKIGEN®

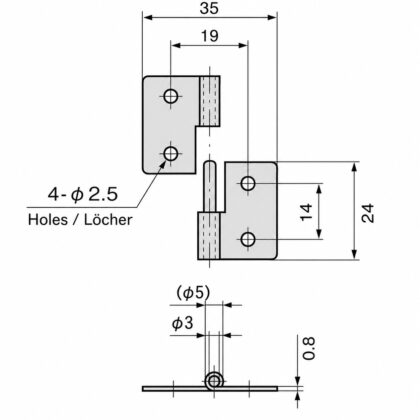

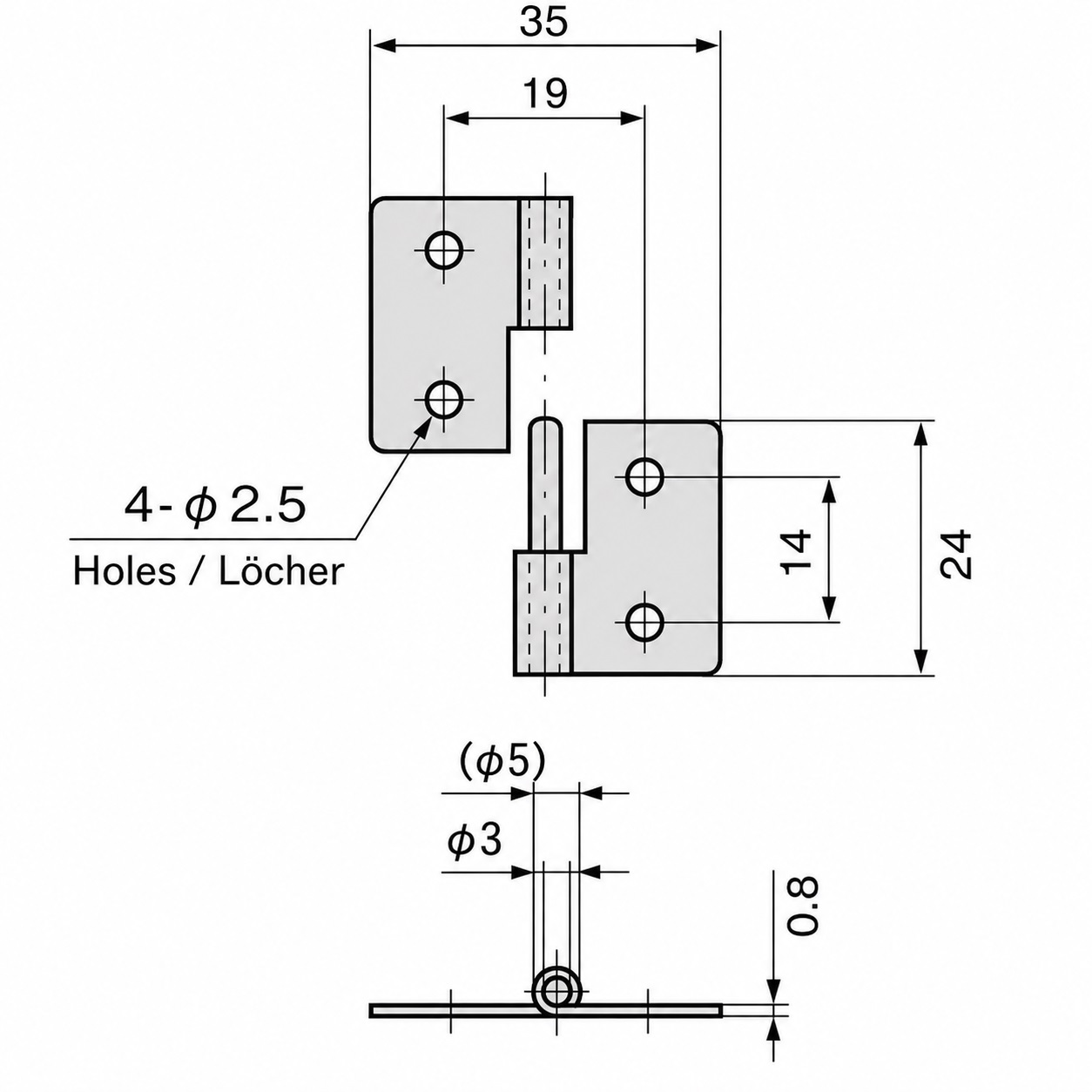

For more dimensions and details , see technical drawing.

The dimensions:

• Total height of the lifting hinge B-56-L: 35 mm (1-3/8″)
• Overall width, unfolded: 24 mm (15/16″)
• Material thickness: 0.8 mm (1/32″)
• Vertical hole spacing: 19 mm (3/4″)
• Horizontal hole spacing: 14 mm (35/64″)
• Mounting holes: 4 x ⌀2.5 mm (3/32″)
• Hinge pin: ⌀3 mm (1/8″)
• Outer diameter of the hinge roller: approx. ⌀5 mm



Included in delivery:

• 2 pieces plug-in hinge B-56-L (10149) made of robust steel, galvanized, yellow, 35 mm (1-3/8″), version: left
• This item does not include mounting screws

Manufacturer’s reference numbers:

• Article ID: 10149
• Item number: B-56-L

Manufacturer: TAKIGEN (Japan)
