Description
2pcs 3mm thick mounting bracket, made of solid stainless steel (SUS304, V2A), surface: glossy polished, SU-60M, size: 60mm (2.4″)
Application: Shelf brackets for shelves, shelves and much more.
The SU-60M mounting brackets are made of solid 3 mm (1/8″) thick SUS304 stainless steel.
The SU-60M shelving brackets combine the high load capacity with excellent corrosion resistance.
The SU-60M shelf bracket is very stable, has an excellent load capacity of 8 kg, and a contact surface length of 60 mm (2.4″).

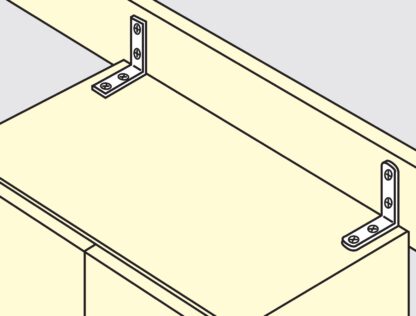

The high-quality SU-60M mounting brackets are ideal for, among other things:
- Partition
- Shelf
- yachts
- boats
- Ships
- outdoor area
- Shelf
- Tray
Material:
- The SU-60M mounting brackets are made of solid stainless steel (SUS304, V2A)
- SUS304 stainless steel is characterized by its high corrosion resistance and durability, which makes it ideal for use in demanding environments
- In addition, it offers an attractive, polished or satin finish that is both modern and easy to maintain
Surface:
- Polished to a shine
- Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
- In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and dirt
Assembly:
- Fastening is done using the screws included in the scope of delivery (countersunk lens screw 3.5 x 20 mm)
- The fastening screws are also made of stainless steel
- The SU-60M mounting brackets have four mounting holes with a diameter of ⌀4 mm (5/32″), with countersink
Features:
- Weight: 43 g
- Load capacity (load capacity): 8 kg (for two pieces)
- Size: 60mm (2.4″)
- Available in three sizes: 30 mm, 45 mm and 60 mm, as well as with two finishes: satin matt and glossy polished
- Easy to assemble
- Practical
- stable
- Material thickness: 3 mm (1/8″)
- glossy polished
- weatherproof
- Stainless (corrosion-free)
- high brand quality of Sugatsune / LAMP®
For more dimensions and details , see technical drawing. The dimensions:
- Mounting Bracket Height: 60 mm (2.4″)
- Width: 15 mm (19/32″)
- Depth: 60 mm (2.4″)
- Material thickness: 3 mm (1/8″)
Included in delivery:
- two pieces mounting bracket SU-60M made of solid stainless steel, polished to a glossy finish
- 4 pieces countersunk screw 3.5 x 20 mm made of stainless steel
Manufacturer’s reference number:
- Article ID: 120-030-067
- Item number: SU-60M
- EAN number: 4510932730129
Manufacturer: Sugatsune / LAMP® (Japan)
