Description
Two pieces of practical pressure latch, with mounting housing, made of robust plastic (plastic), surface: anthracite grey, 1900223, version: non-magnetic
Application:
Stable push-to-open door opener for furniture doors, cabinet doors, flaps and much more.
The Push-To-Open door opener 1900223 enables the convenient opening and closing of handle-free furniture doors by pressure.

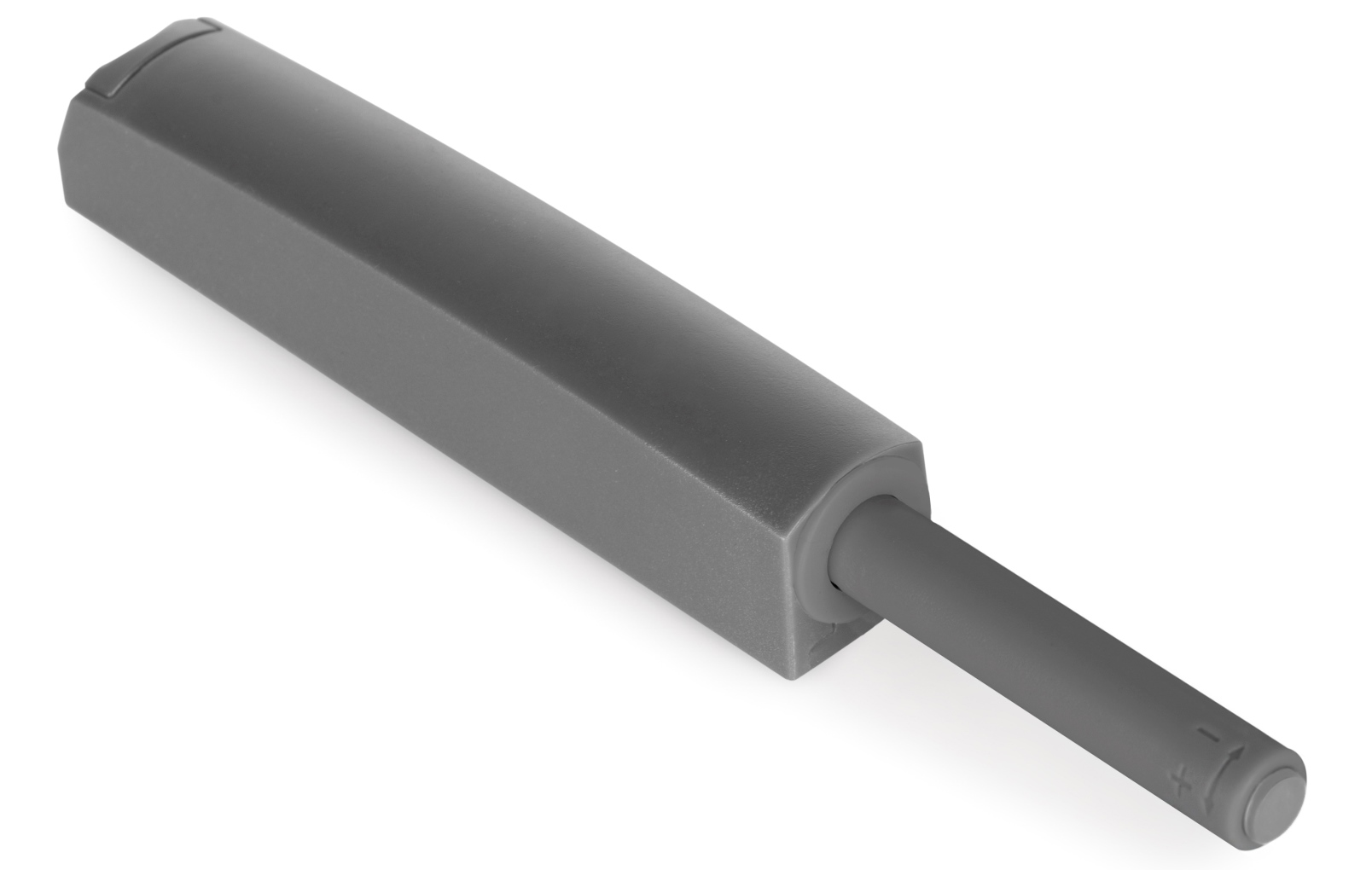

The pressure latch 1900223 has a wide plunger extension of 37 mm (1-29/64″).
Thanks to its compact plastic housing, the pressure latch can 1900223 be screwed inconspicuously to the side of the carcass.
The system is low-wear and is particularly suitable for kitchens and bathrooms, where frequent operation is common.
The practical mounting housing of the 1900223 slide lock allows for relaxed installation.
It is also possible to drill the door opener 1900223 directly into the side of the carcass without having to use the mounting housing.
For use with hinges with recoil spring.
The high-quality snap fasteners 1900223 are ideal for, among other things:
- Kitchen fronts
- Bathroom
- Furniture doors
- Doors
- Work out
Material:
- The snap closures 1900223 are made of robust plastic (plastic)
- Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability
- It is corrosion-resistant, making it particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
- In addition, the flexible formability of plastic enables a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines
Surface:
- Anthracite grey
- Anthracite grey fittings and components look modern and discreet at the same time, which means that they can be harmoniously integrated into different living styles
- The hard-wearing surface conceals fingerprints and minor signs of use
Assembly:
- Fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included)
- The pressure latch 1900223 has four mounting holes
- The distance between the first and last mounting holes is 52 mm (2-3/64″)

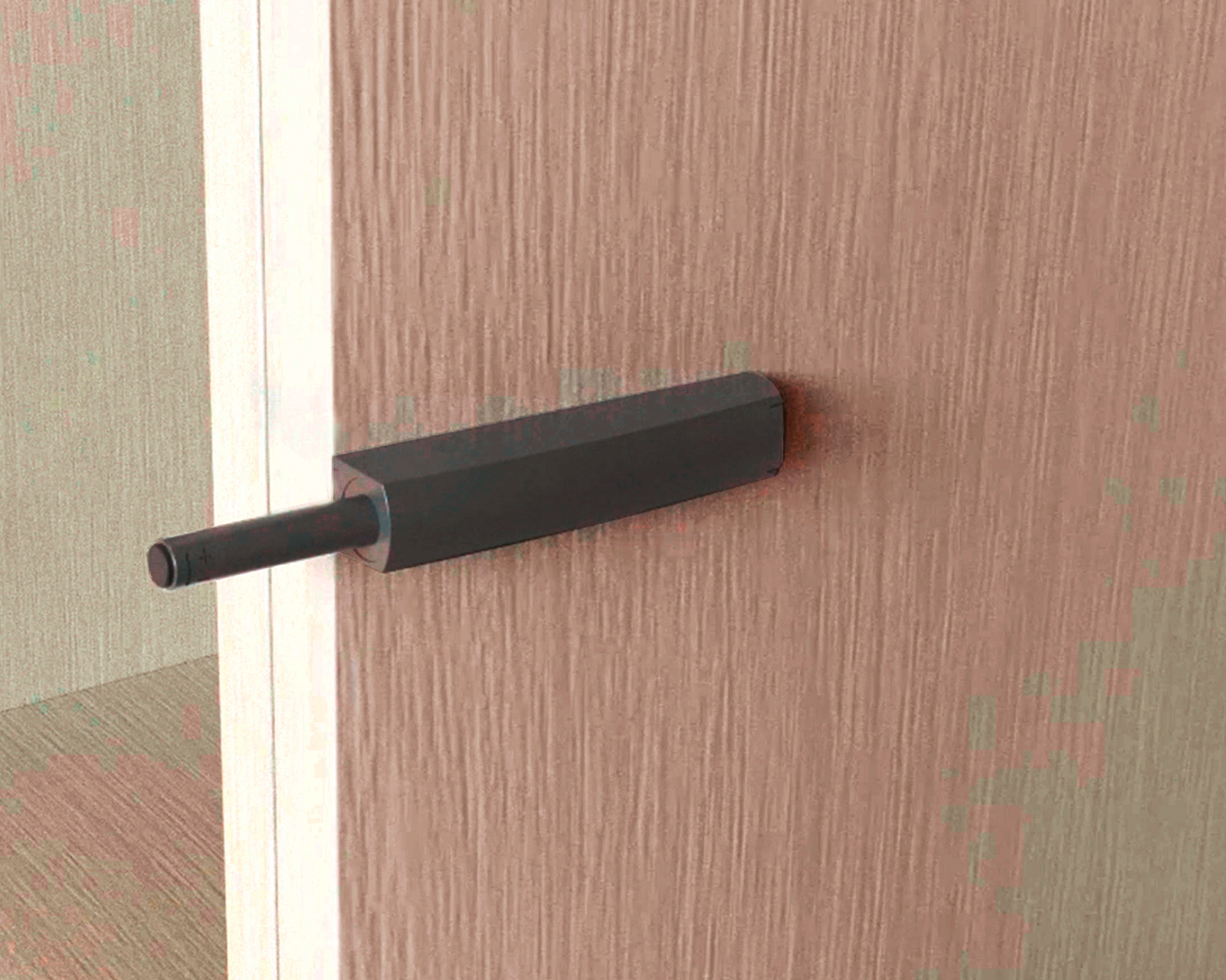

- The latch is screwed onto the side of the body

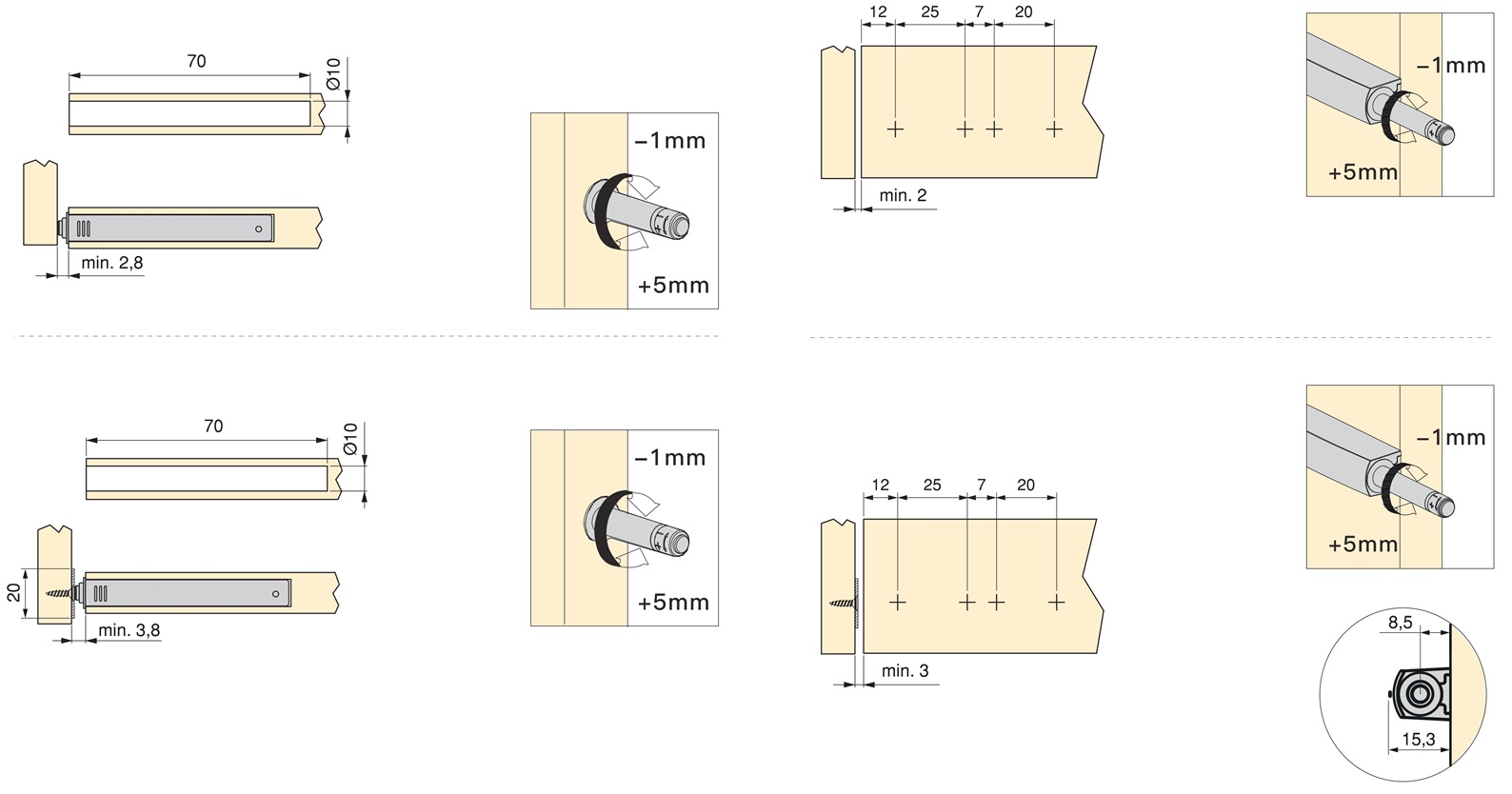

- The distance between the push-to-open door opener 1900223 and the door edge is 12 mm (15/32″) (for more details, see assembly drawing)
Features:
- Type: non-magnetic
- Weight: 26 g
- Load capacity (load capacity): 2.5 kg (6 lbs)
- Size: 70 mm (2-3/4″)
- Easy installation, practical, stable
- Extension distance of ram: 37 mm (1-29/64″)
- Minimum door gap: 2.8 mm (7/64″)
- anthracite grey
- robust
- high brand quality of UMAXO®

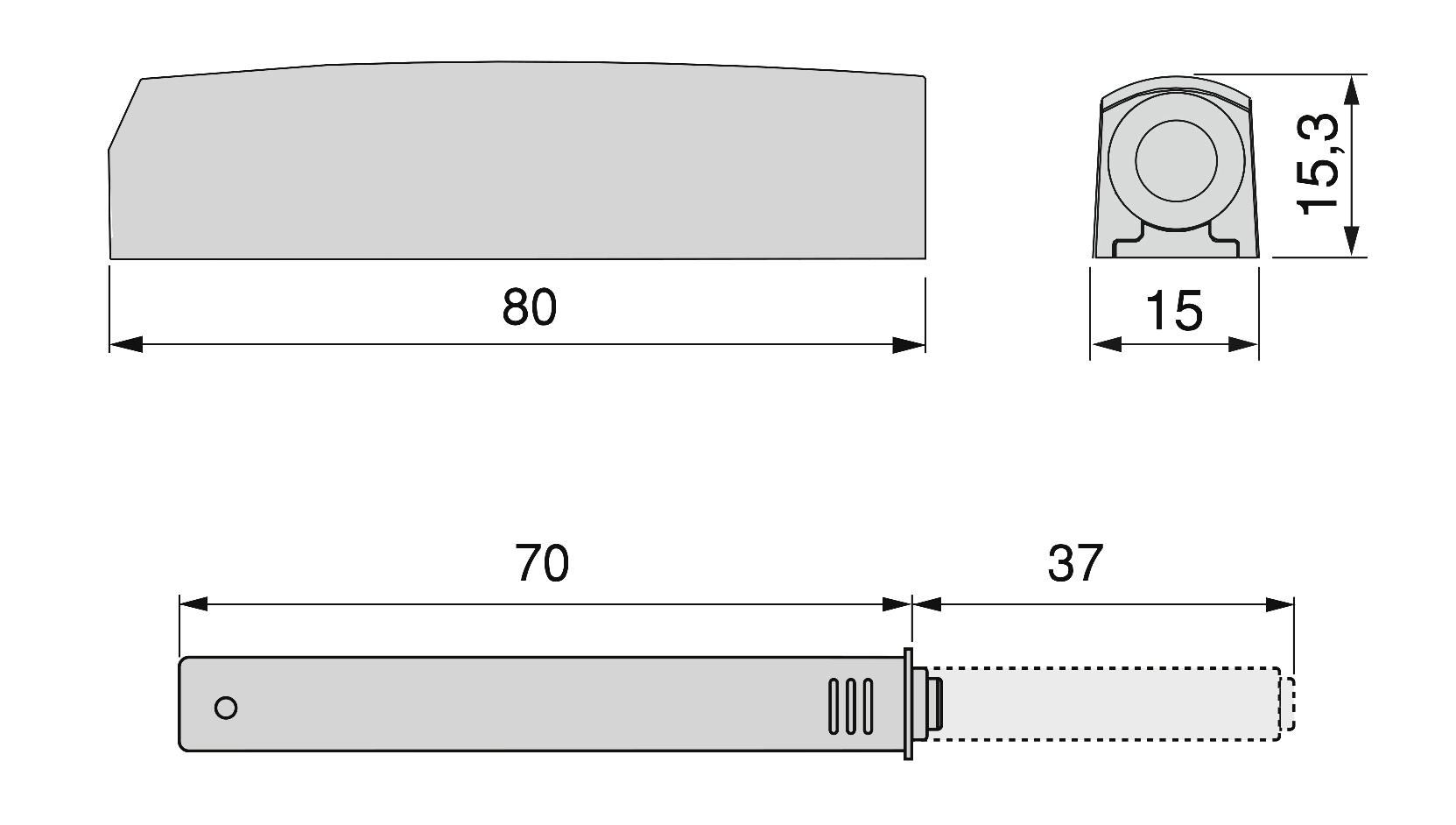

For more dimensions and details, see technical drawing.
The dimensions:
- Total Slide Lock Length: 70 mm (2-3/4″)
- Mounting plate width: 15 mm (19/32″)
- Case Height: 15.3 mm (39/64″)
Included in delivery:

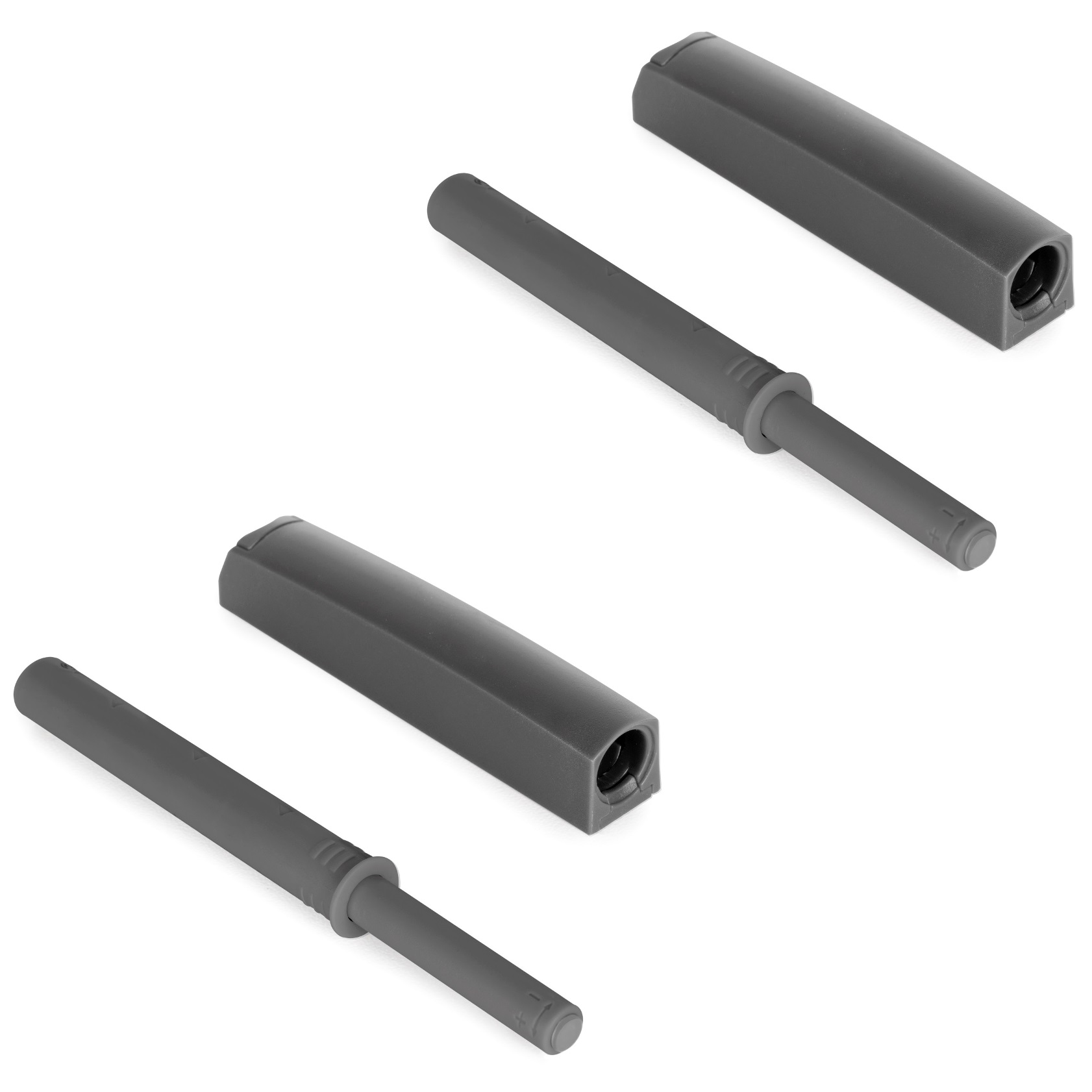

- Two pieces of pressure latches 1900223 made of robust plastic, anthracite grey, version: non-magnetic
- Two piece housing
Watch product video:
Additional Information:
Manufacturer’s reference number:
- Article ID: 1900223
- EAN number: 8432393298825
Manufacturer: EMUCA
