Description

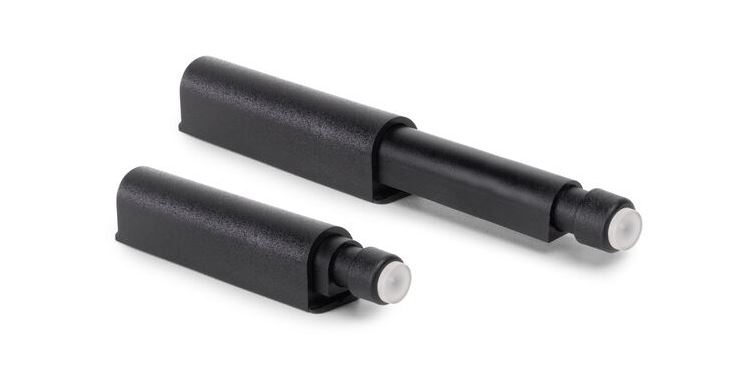

Two pieces of practical pressure latch, made of robust plastic (plastic), surface: black, 2033817, size: 62 mm (2-7/16″), version: non-magnetic
Application:
Sturdy push-to-open closure for furniture doors, cabinet doors, flaps and much more.
The Push-To-Open closure 2033817 enables the convenient opening and closing of handle-free furniture doors at the touch of a button.
The pressure latch 2033817 has a wide plunger extension of 40 mm (1-37/64″).
Thanks to its compact plastic housing, the snap latch can 2033817 be screwed inconspicuously to the side of the carcass.
The system is low-wear and is particularly suitable for kitchens and bathrooms, where frequent operation is common.
The practical mounting plate of the snap lock 2033817 allows relaxed installation
For use with hinges with recoil spring
The high-quality snap closures 2033817 are ideal for, among other things:
- Kitchen fronts
- Bathroom
- Furniture doors
- Doors
- Work out
Material:
- The snap fasteners 2033817 are made of robust plastic (plastic)
- The base and cover cap are made of black plastic (PA 6); The plastic cover protects sensitive floor coverings and ensures a non-slip grip
- Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability
- It is corrosion-resistant, making it particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
- In addition, the flexible formability of plastic enables a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included)
- The pressure latch 2033817 has four mounting holes
- The distance between the first and last mounting holes is 53.5 mm (2-7/64″)
- The latch is screwed onto the side of the body
- The distance between the push-to-open closure 2033817 and the door edge is 22 mm (55/64″) (for more details, see assembly drawing)
Features:
- Type: non-magnetic
- Weight: 23g
- Size: 62 mm (2-7/16″)
- Easy installation, practical, stable
- Extension distance of ram: 40 mm (1-37/64″)
- Permissible door gap: 0 – 6 mm (15/64″)
- black
- robust
- high brand quality of UMAXO®

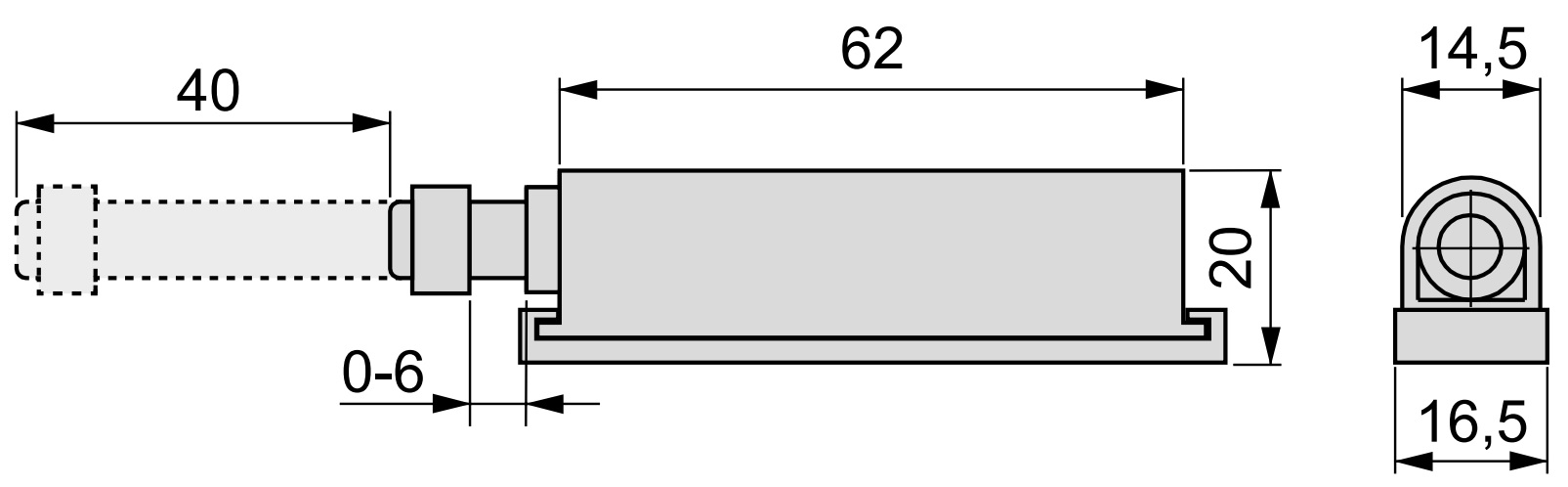

For more dimensions and details, see technical drawing.
The dimensions:
- Total Slide Lock Length: 62 mm (2-7/16″)
- Mounting plate width: 16.5 mm (21/32″)
- Case height: 20 mm (25/32″)
Included in delivery:
- Two pieces of pressure latches 2033817 made of robust plastic, black, version: non-magnetic
- Two pieces of mounting plate
Manufacturer’s reference number:
- Article ID: 2033817
- EAN number: 8432393103020
Manufacturer: EMUCA
