Description
Two pieces of practical snap latches, made of robust plastic (plastic), surface: grey, 2033821, size: 62 mm (2-7/16″), version: non-magnetic
Application:
Sturdy push-to-open closure for furniture doors, cabinet doors, flaps and much more.
The Push-To-Open closure 2033821 enables the convenient opening and closing of handle-free furniture doors at the touch of a button.
The pressure latch 2033821 has a wide ram extension of 40 mm (1-37/64″).
Thanks to its compact plastic housing, the pressure latch can 2033821 be screwed inconspicuously to the side of the body.
The system is low-wear and is particularly suitable for kitchens and bathrooms, where frequent operation is common.
The practical mounting plate of the snap lock 2033821 allows for relaxed installation.
For use with hinges with recoil spring.
The high-quality snap fasteners 2033821 are ideal for, among other things:
- Kitchen fronts
- Bathroom
- Furniture doors
- Doors
- Work out
Material:
- The snap fasteners 2033821 are made of robust plastic (plastic)
- Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability
- It is corrosion-resistant, making it particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
- In addition, the flexible formability of plastic enables a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines
Surface:
- Gray
- Grey offers a versatile and elegant base that combines well with other colours and materials, creating a calm, timeless atmosphere in both modern and classic spaces
- In addition, grey has the ability to highlight accents in a room without being dominant itself, making it ideal for creating harmonious and balanced interiors
Assembly:
- Fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included)
- the 2033821 has four mounting holes
- The distance between the first and last mounting holes is 53.5 mm (2-7/64″)
- The latch is screwed onto the side of the body

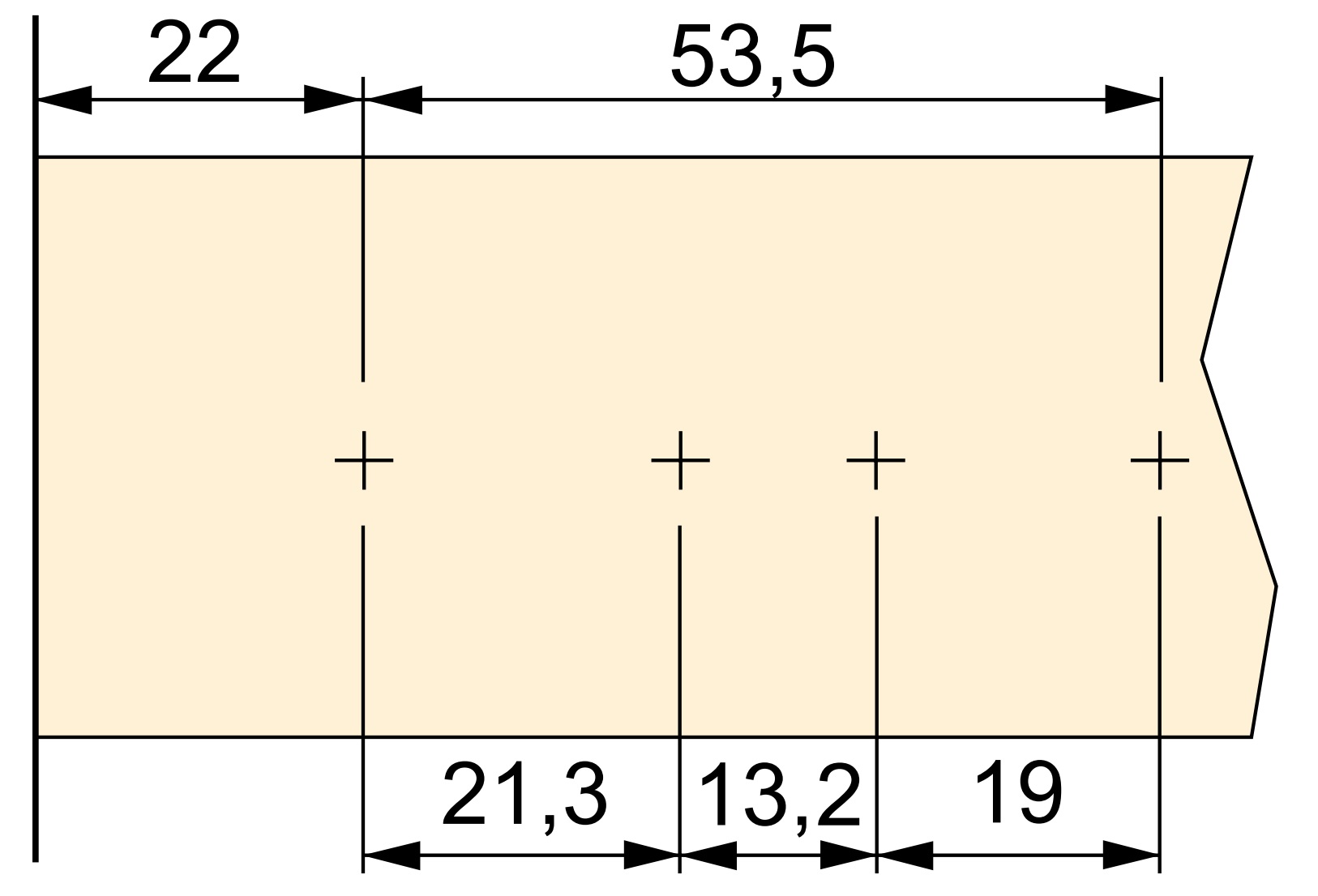

- The distance between the r push-to-open closure 2033821 and the door edge is 22 mm (55/64″) (for more details, see assembly drawing)
Features:
- Type: non-magnetic
- Weight: 23g
- Size: 62 mm (2-7/16″)
- Easy installation, practical, stable
- Extension distance of ram: 40 mm (1-37/64″)
- Permissible door gap: 0 – 6 mm (15/64″)
- grey
- robust
- high brand quality of UMAXO®

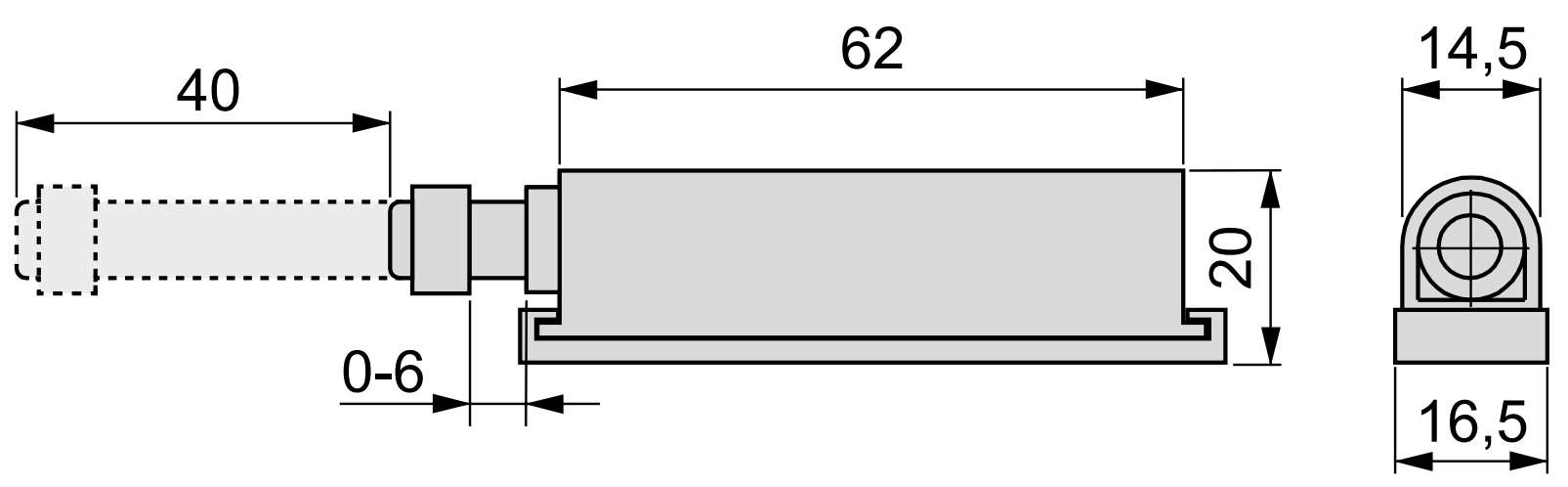

For more dimensions and details, see technical drawing.
The dimensions:
- Total Slide Lock Length: 62 mm (2-7/16″)
- Mounting plate width: 16.5 mm (21/32″)
- Case height: 20 mm (25/32″)
Included in delivery:

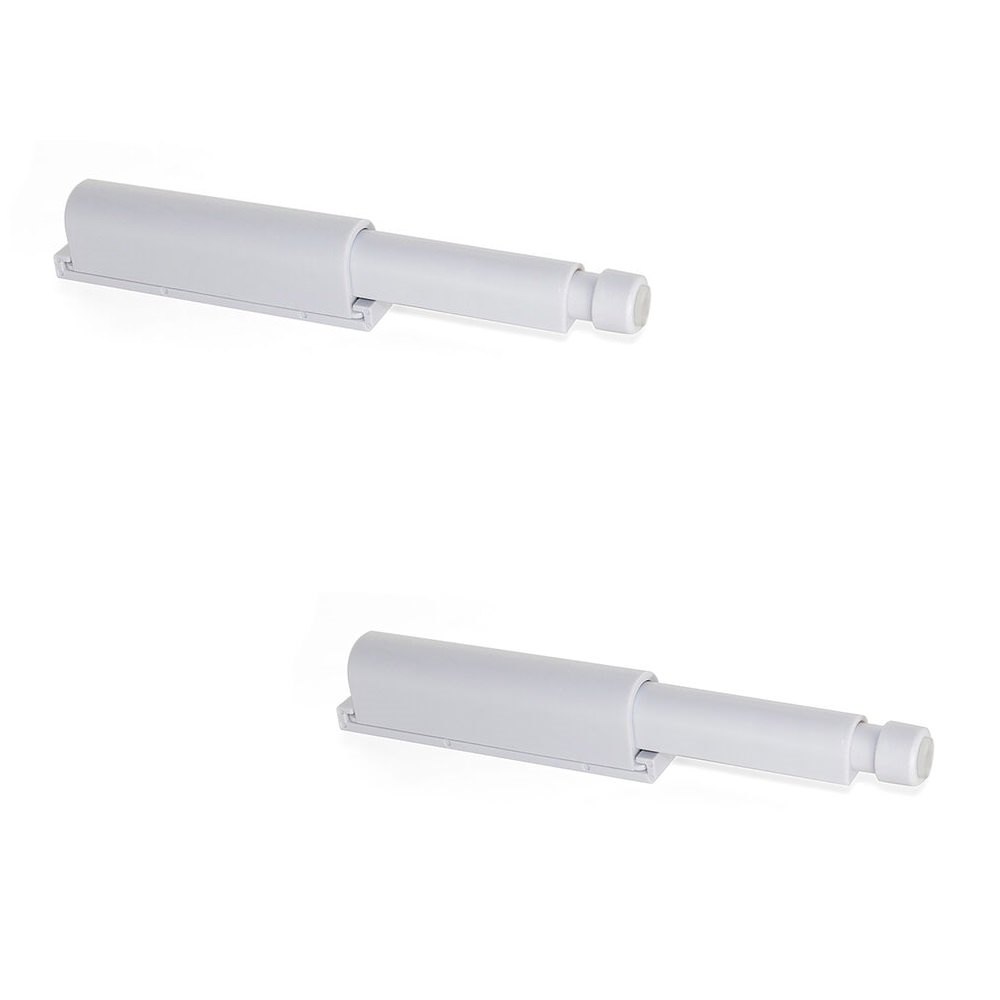

- Two pieces of pressure latches 2033821 made of robust plastic, grey, version: non-magnetic
- Two pieces of mounting plate
Manufacturer’s reference number:
- Article ID: 2033821
- EAN number: 8432393103037
Manufacturer: EMUCA
