Description

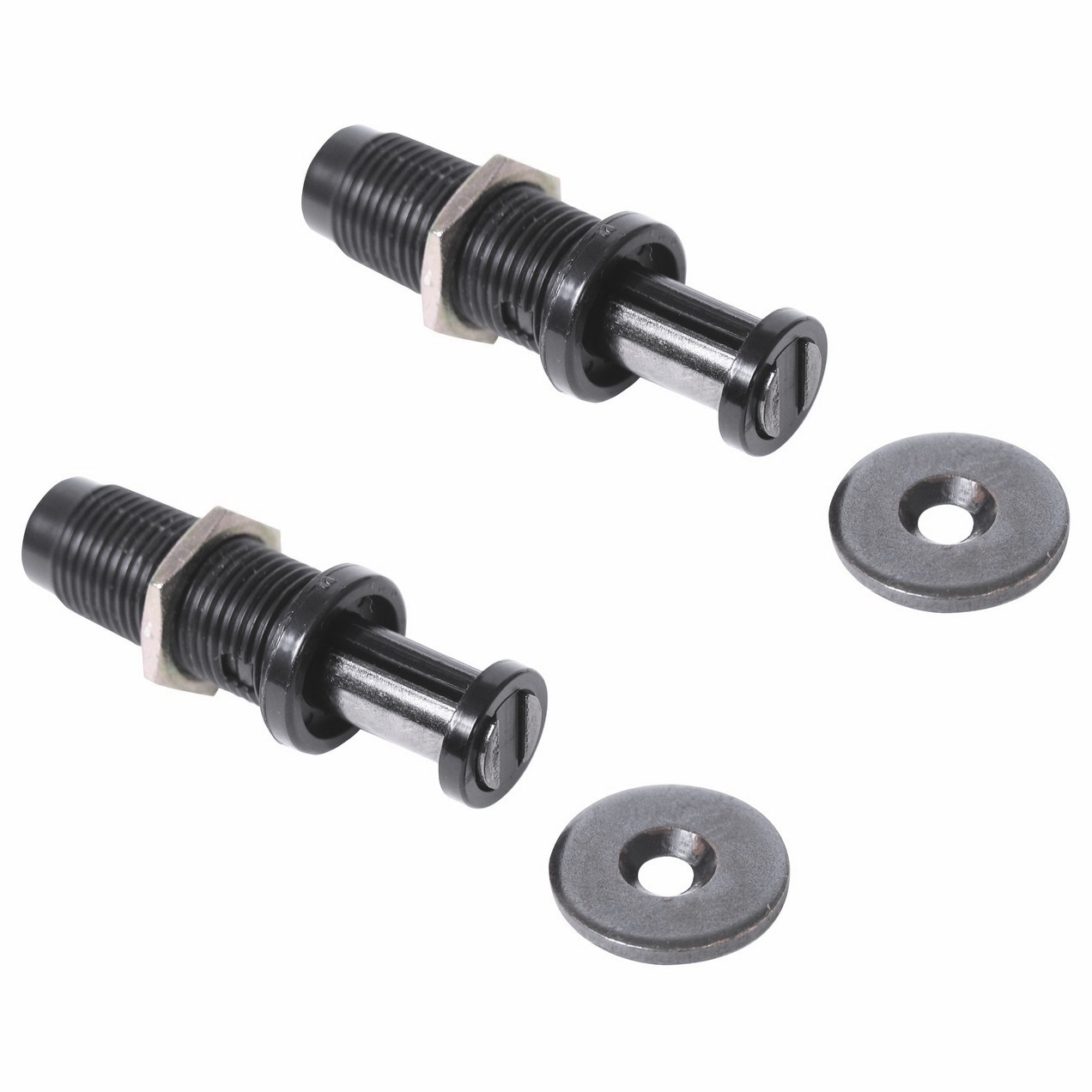

2 pieces of magnetic snap latches, with M11 thread, incl. M11 nut and mating plate, made of robust plastic (plastic), surface: black, PM-4N HB
Application:
Push-to-open door opener for sheet metal, wooden panel, maintenance door, metal cabinet and much more.
The PM-4N HB magnetic snap latch enables the convenient opening and closing of handle-free furniture doors by printing.
The PM-4N HB push-to-open door opener has a plunger extension distance of 9 mm (23/64″).
The peculiarity of the PM-4N HB magnetic snap latch is the easy way to attach it to virtually any surface using its M11 thread.
The high-quality magnetic snap latches 140-059-147 are ideal for, among other things:
- Devices
- machinery
- Sheet metal
- Wooden panel
- maintenance door
- Metal cabinet
Material:
- The magnetic snap latches 140-059-147 are made of robust plastic (plastic)
- Magnet: made of ferrite
- Counterpart: made of steel
- M11 nut: made of steel
- Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability
- It is corrosion-resistant, making it particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
- In addition, the flexible formability of plastic enables a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:

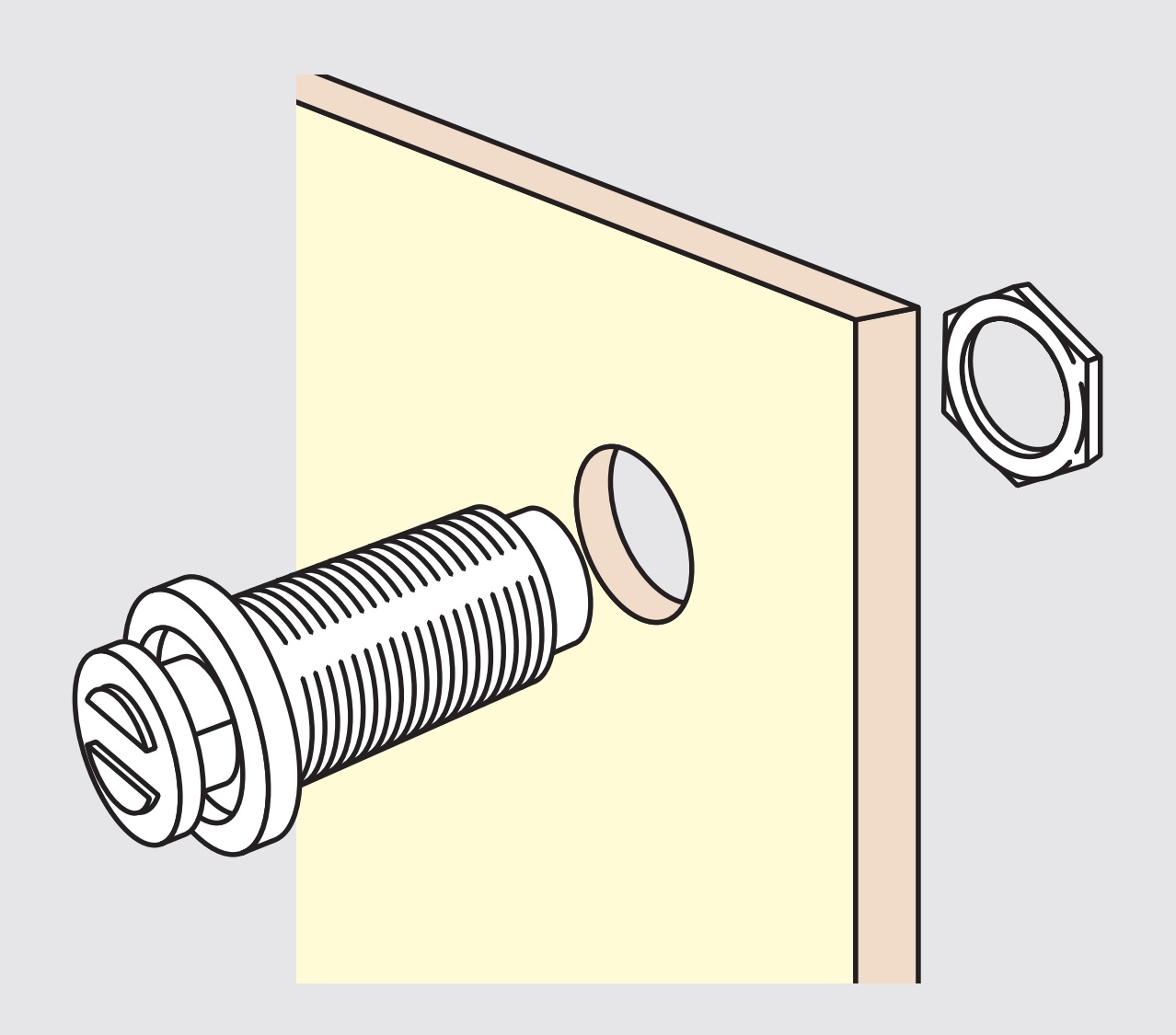

- To mount the PM-4N HB magnetic snap catcher, a hole with a diameter of ⌀12 mm (15/32″) must be drilled in the body wall
- The PM-4N HB magnetic snap latch is inserted into the bore and screwed into place by the supplied M11 nut
- The minimum distance between the door and the furniture body is 5 mm (13/64″)
- The counterpart can be recessed into the door to reduce the gap between the door and the body (for more details, see assembly drawing)
Features:
- Weight: 9 g
- Load capacity (load capacity): 1.3 kg (3 lbs)
- Size: 33.5 mm (1-5/16″)
- The housing has an M11 thread for easy attachment
- Easy installation, practical, stable
- Minimum door gap: 5 mm (13/64″)
- black
- robust
- high brand quality of Sugatsune / LAMP®

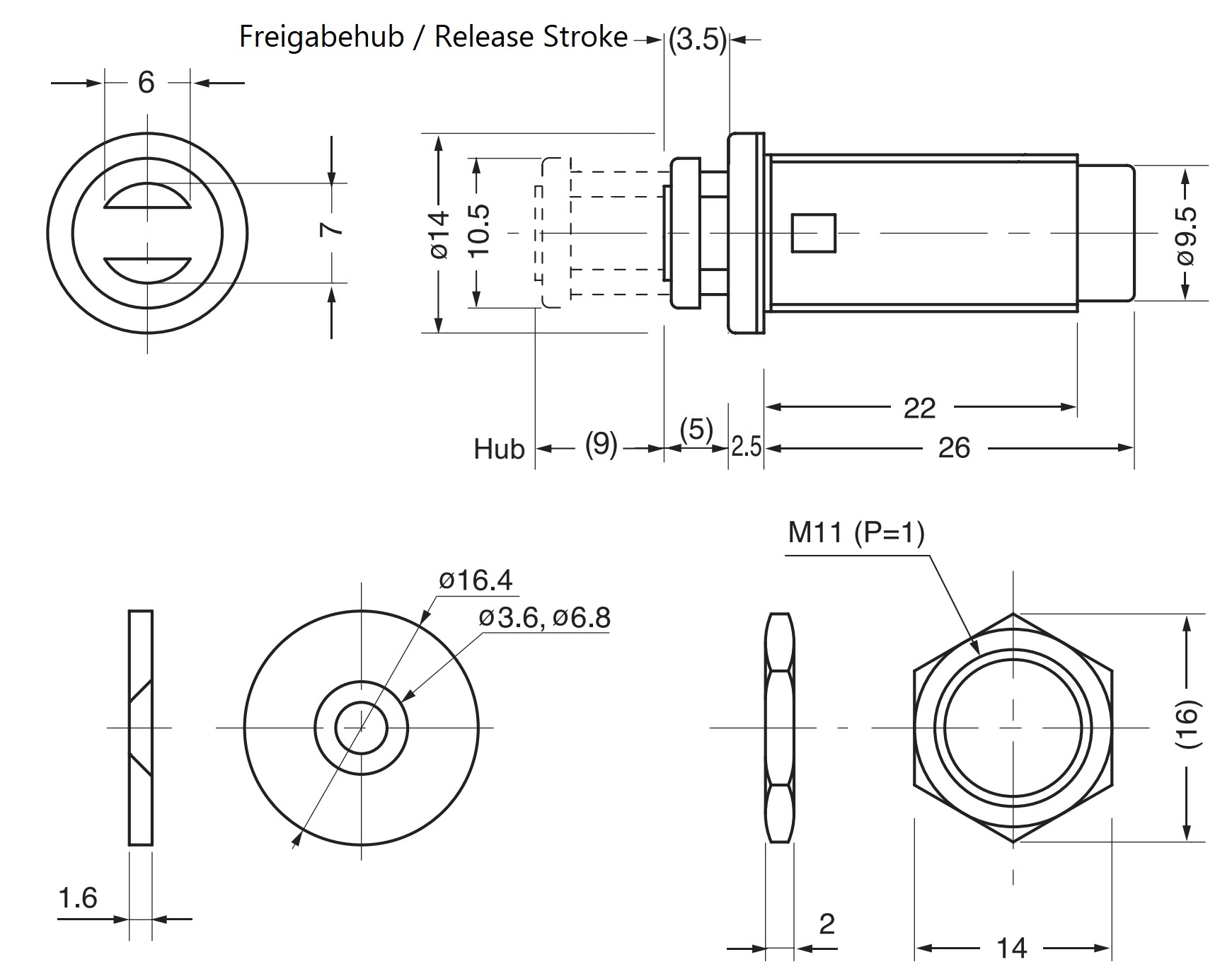

For more dimensions and details, see technical drawing.
The dimensions:
- Diameter of the magnetic snap catcher: ⌀14 mm (35/64″)
- Depth of the magnetic snap catcher: 33.5 mm (1-5/16″)
- Counterpart Diameter: ⌀16.4 mm (41/64″)
- Counterpart Material Thickness: ⌀1.6 mm (1/16″)
Included in delivery:
- 2 pieces magnetic snap latches 140-059-147 made of robust plastic, black
- 2 pieces of steel counter plate
- 2 pieces of M11 steel nut
- Attention: the mounting screws are not included in the scope of delivery
Manufacturer’s reference number:
- Article ID: 140-059-147
- SKU: PM-4N HB
- EAN number: 4510932217316
Manufacturer: Sugatsune / LAMP® (Japan)
