2 pieces of high-quality heavy-duty mounting bracket, load capacity: 56 kg (124 lbs), surface: black, 240 mm (9.5″), BTK-240B. Heavy-duty shelving bracket for shelf, partition, shelf, corner connection and much more, by Sugatsune / LAMP® (Japan)

Description

2 pieces high-quality 8 mm heavy duty mounting bracket, made of robust steel, surface: black, BTK-240B, size: 240 mm (9.5″), load capacity: 56 kg (124 lbs)

Application:

Heavy-duty shelf brackets for shelves, partitions, shelves, corner joints and much more.



The BTK-240B heavy-duty mounting brackets are made of solid 8 mm (5/16″) thick steel. The BTK-240B shelf brackets combine high load capacity and modern design.



The supplied screws also have the surface colour black, matching the surface colour of the heavy-duty mounting bracket. One of the special features of the BTK-240B Heavy Duty Mounting Bracket is that the angle between the wall and the shelf is not rounded, and it is exactly 90 degrees, which means that there is no gap in the corner between the Heavy Duty Shelf Bracket and the wall.

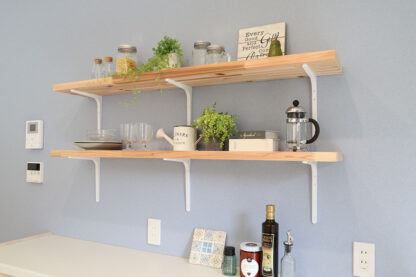

The BTK-240B heavy-duty shelf bracket is very stable, has an excellent load capacity of 56 kg (124 lbs), and a contact surface length of 240 mm (9.5″). The high-quality BTK-240B heavy-duty mounting brackets are ideal for, among other things:

• Shelf
• Tray
• Partition
• Shelf
• Corner connection

Material:

• The BTK-240B heavy-duty mounting brackets are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Surface:

• Black
• Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
• While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
• Black finishes can be used in different rooms, be it the kitchen, living room, or office



Assembly:

• The fastening is done using the screws included in the scope of delivery (countersunk wood screws: two pieces 3.5 × 16 mm, 1 piece 3.5 × 20 mm, 1 piece 3.5 × 25 mm and two pieces 3.8 × 32 mm)
• The BTK-240B heavy-duty shelving brackets can be mounted both vertically and horizontally, e.g. for partition walls (see the drawing for horizontal mounting below)
• The BTK-240B heavy-duty mounting brackets have six mounting holes with a diameter of ⌀4 mm (5/32″), with countersink (for more details, see assembly drawing)





Features:

• Weight: 237 g
• Load capacity (load capacity): 56 kg (124 lbs) – for two pieces
• Size: 240mm (9.5″)

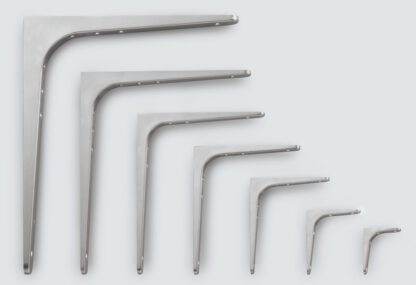

• Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm, as well as four colours: matt stainless steel, white, black and umber
• Easy to assemble
• Practical
• stable
• Material thickness: 8 mm (5/16″)
• Clean image due to the black surface color of the screws, which is identical to the surface color of the heavy-duty mounting bracket
• black
• Steel
• robust
• high brand quality of Sugatsune / LAMP®

For more dimensions and details, see technical drawing.

The dimensions:

• Heavy-duty mounting bracket height: 9.5″ (240 mm)
• Width: 18 mm (45/64″)
• Depth: 199 mm (7-53/64″)
• Material thickness: 8 mm (5/16″)



Included in delivery:

• Two Pieces Heavy-Duty Mounting Bracket BTK-240B Made of Robust Steel, Black
• Six pieces of countersunk wood screws: two pieces of 3.5 × 16 mm, 1 piece of 3.5 × 20 mm, 1 piece of 3.5 × 25 mm and two pieces of 3.8 × 32 mm made of steel

Manufacturer’s reference number:

• Article ID: 120-030-175
• Item number: BTK-240B
• EAN number: 4510932730167

Manufacturer: Sugatsune / LAMP® (Japan)
