2 pieces of high-quality heavy-duty mounting bracket, load capacity: 70 kg (155 lbs), surface: umber, 301 mm (11.9″), BTK-300UM. Heavy-duty shelving bracket for shelf, partition, shelf, corner connection and much more, by Sugatsune / LAMP® (Japan)

Description

2 pieces of high-quality 8 mm heavy duty mounting bracket, made of robust steel, surface: umber, BTK-300UM, size: 301 mm (11.9″), load capacity: 70 kg (155 lbs)

Application:

Heavy-duty shelf brackets for shelves, partitions, shelves, corner joints and much more.



The BTK-300UM heavy-duty mounting brackets are made of solid 8 mm (5/16″) thick steel. The BTK-300UM shelving brackets combine high load capacity and modern design.



The supplied screws also have the surface colour umber, matching the surface colour of the heavy-duty mounting bracket. One of the special features of the BTK-300UM Heavy Duty Mounting Bracket is that the angle between the wall and the shelf is not rounded and is exactly 90 degrees, which means that there is no gap in the corner between the Heavy Duty Shelf Bracket and the wall.



The BTK-300UM heavy-duty shelf bracket is very stable, has an excellent load capacity of 70 kg (155 lbs), and a contact surface length of 301 mm (11.9″). The high-quality BTK-300UM heavy-duty mounting brackets are ideal for:

• Shelf
• Tray
• Partition
• Shelf
• Corner connection

Material:

• The BTK-300UM heavy-duty mounting brackets are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Surface:

• Umbra
• The color umber is an earthy, warm brown with a slightly reddish or grayish undertone reminiscent of natural materials such as earth or stone
• Umber creates a warm, grounded atmosphere and gives rooms a calming, natural feel
• The colour Umber can be combined in many ways and harmonises with both neutral and bold colours, making it ideal for stylish, timeless interiors



Assembly:

• The fastening is done using the screws included in the scope of delivery (countersunk wood screws: 1 piece 3.5 x 16 mm, two pieces 3.5 x 25 mm, 1 piece 3.5 x 32 mm and two pieces 3.8 x 38 mm)

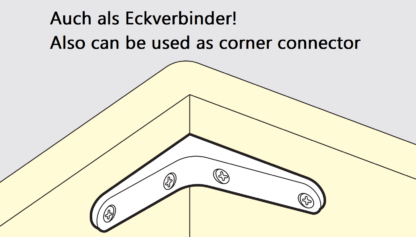

• The BTK-300UM heavy-duty shelving brackets can be mounted both vertically and horizontally, e.g. for partition walls (see the drawing for horizontal mounting below)
• The BTK-300UM heavy-duty mounting brackets have six mounting holes with a diameter of ⌀4 mm (5/32″), with countersink (for more details, see mounting drawing)





Features:

• Weight: 323 g
• Load capacity (load capacity): 70 kg (155 lbs) – for two pieces
• Size: 301 mm (11.9″)

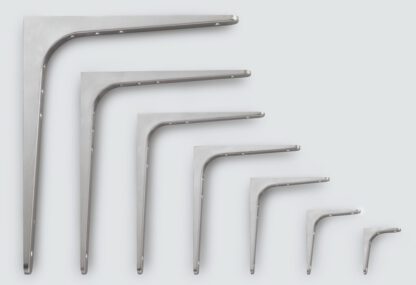

• Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm, as well as four colours: matt stainless steel, white, black and umber
• Easy to assemble
• Practical
• stable
• Material thickness: 8 mm (5/16″)
• Clean image due to the surface color umber of the screws, which is identical to the surface color of the heavy-duty mounting bracket
• Umbra
• Steel
• robust
• high brand quality of Sugatsune / LAMP®

For more dimensions and details, see technical drawing.

The dimensions:

• Heavy-duty mounting bracket height: 301 mm (11.9″)
• Width: 20mm (25/32″)
• Depth: 238.5 mm (9-25/64″)
• Material thickness: 8 mm (5/16″)



Included in delivery:

• Two Pieces Heavy Duty Mounting Bracket BTK-300UM Made of Sturdy Steel, Umber
• Six pieces countersunk wood screws: 1 piece 3.5 x 16 mm, two pieces 3.5 x 25 mm, 1 piece 3.5 x 32 mm and two pieces 3.8 x 38 mm made of steel

Manufacturer’s reference number:

• Article ID: 120-030-193
• Item number: BTK-300UM
• EAN number: 4510932730907

Manufacturer: Sugatsune / LAMP® (Japan)
