Description
Two pieces of high-quality 2 mm thick shelf support, made of solid stainless steel (SUS304, V2A), surface: satin matt, SSA-380H, size: 380 mm (15″), load capacity: 130 kg (287 lbs)
Application:

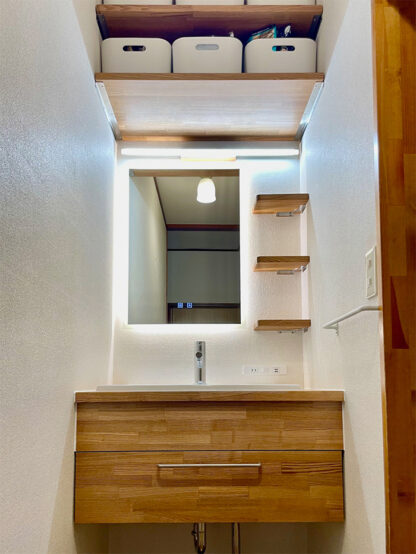

Shelf support for bathroom, hotel, sauna, outdoor area and much more.
The SSA-380H shelf brackets are made of solid 2 mm (5/64″) thick SUS304 stainless steel. The SSA-380H rack brackets combine the high load capacity with excellent corrosion resistance. The SSA-380H shelf support is very strong, has an excellent load capacity of 130 kg (287 lbs), and a contact surface length of 380 mm (15″). The high-quality SSA-380H shelf brackets are ideal for, among other things:
- Shelf
- Boat
- yacht
- Ship
- Swimming pool
- bathroom
- Hotel
- Sauna
- outdoor area
Material:
- The SSA-380H shelf brackets are made of solid stainless steel (SUS304, V2A)
- SUS304 stainless steel is characterized by its high corrosion resistance and durability, which makes it ideal for use in demanding environments
- In addition, it offers an attractive, polished or satin finish that is both modern and easy to maintain
Surface:
- Satin matt
- Matte surfaces are less sensitive to fingerprints and dirt, which makes them easier to maintain
- They also give objects a modern, noble look and harmonise well with different materials and colours
Assembly:
- Fastening is done using the seven screws included in the scope of delivery (countersunk sheet metal screws: three pieces 3.5 x 16 mm and four pieces 3.5 x 12 mm)
- The SSA-380H shelf supports can be mounted both horizontally and vertically, e.g. for partition walls
- The SSA-380H shelf brackets have seven mounting holes with a diameter of ⌀5.5 mm (7/32″), with countersink
- The distances between the mounting holes are 116 mm (4-9/16″) and 165 mm (6-1/2″)
- A height adjustment of +2 mm / -2 mm is possible via the slotted hole in the middle (for further details see assembly drawing)
Features:
- Weight: 247 g
- Load capacity (load capacity): 130 kg (287 lbs) – for two pieces
- Size: 380 mm (15″)
- Available in six sizes: 100 mm, 150 mm, 200 mm, 280 mm, 380 mm and 480 mm
- Easy to assemble
- Practical
- stable
- With height adjustment +2 mm / -2 mm over slotted hole
- Material thickness: 2 mm (5/64″)
- satin matt
- weatherproof
- Stainless (corrosion-free)
- high brand quality of Sugatsune / LAMP®
For more dimensions and details, see technical drawing.
The dimensions:
- Shelf beam width: 380 mm (15″)
- Height: 16 mm (5/8″)
- Depth: 25 mm (63/64″)
- Material thickness: 2 mm (5/64″)
Included in delivery:
- Two pieces shelf bracket SSA-380H made of solid stainless steel, satin matt finish
- Twice: Seven pieces of countersunk self-tapping screws: three pieces of 3.5 x 16 mm and four pieces of 3.5 x 12 mm made of stainless steel
Manufacturer’s reference number:
- Article ID: 120-053-496
- Item number: SSA-380H
- EAN number: 4510932222679
Manufacturer: Sugatsune / LAMP® (Japan)
