Description
2 pieces of magnetic snap latches, for drilling, incl. counter plate, made of high-quality plastic, surface: brown, MC-U60
Application:
Push-to-open door openers for furniture doors, cabinet doors, cabinet doors and much more.
The MC-U60 magnetic snap latch enables the convenient opening and closing of handle-free furniture doors by pressure.
The MC-U60 push-to-open door opener has a ram extension distance of 16 mm (2-3/64″).
The high-quality magnetic snap latches 140-050-016 are ideal for, among other things:
- Kitchen cabinet doors
- Bathroom furniture doors
- Furniture doors
- Doors
- Cabinet flaps
Material:
- The magnetic snap latches 140-050-016 are made of high-quality plastic
Surface:
- Brown
- Brown gives a feeling of warmth and comfort, which creates a cozy and inviting atmosphere, ideal for living and dining areas
- Brown pairs well with wood, and is a versatile, neutral color that pairs well with other colors and materials, exuding timeless elegance
Assembly:
- The fastening is done using the three screws included in the scope of delivery (wood screws (2 pieces of flat-head wood screws 2.9 x 13 mm and 1 piece of flat-head wood screws 3.8 x 16 mm))
- To mount the MC-U60 magnetic snap latch, a hole with a diameter of ⌀14 mm (35/64″) must be drilled in the body wall
- The depth of the hole should be at least 52 mm (2-3/64″)
- The MC-U60 magnetic snap latch has a mounting plate with 2 mounting holes
- The distance between the mounting holes is 24 mm (15/16″)
- The minimum distance between the door and the furniture body is 6 mm

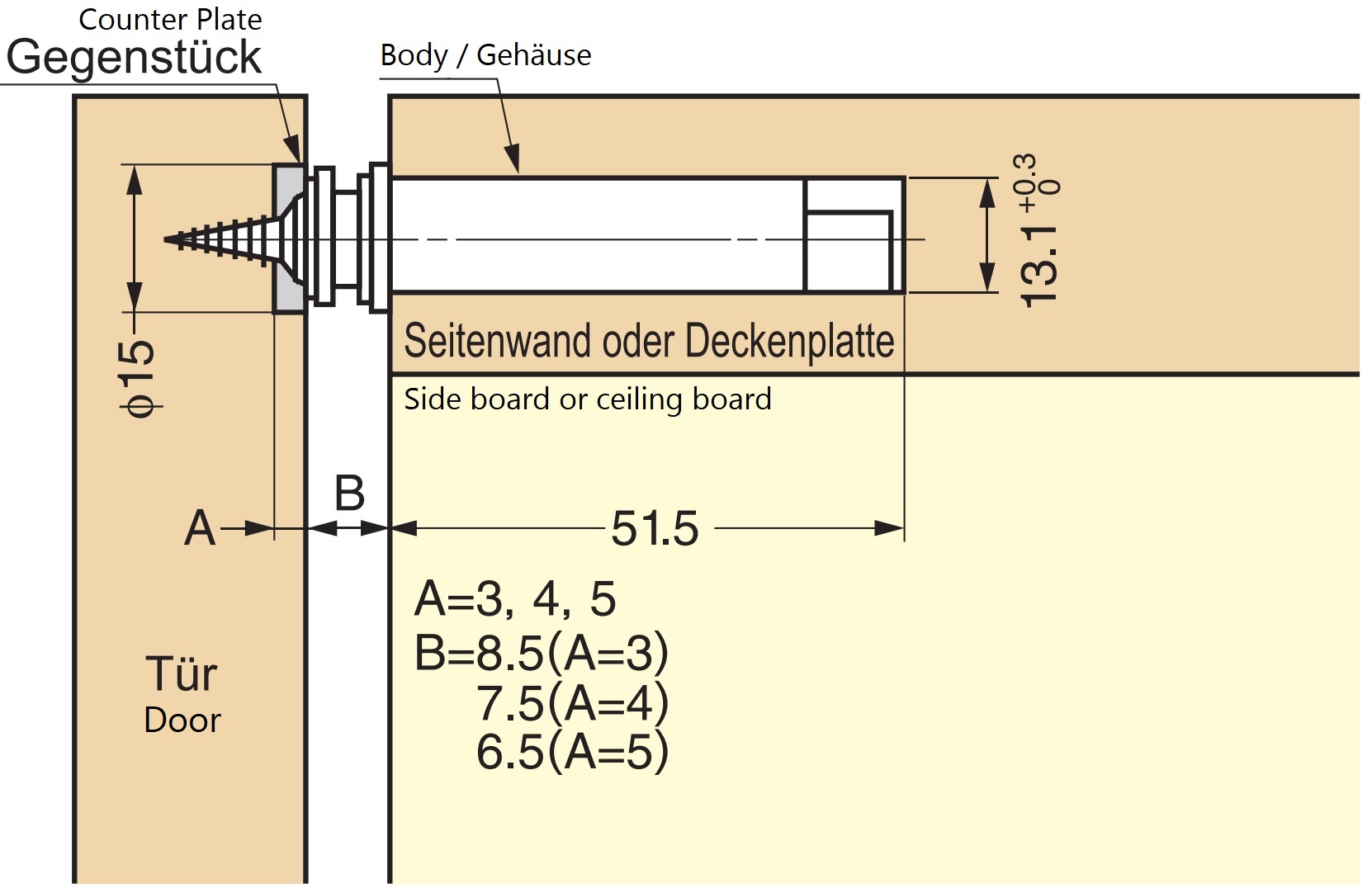

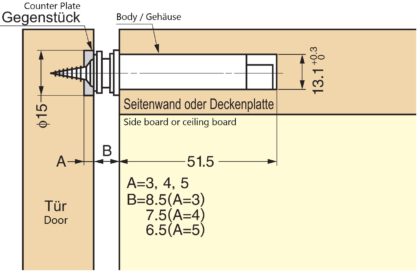

- The counterpart can be drilled into the door to shorten the release stroke (for more details, see assembly drawing)
Features:
- Weight: 19g
- Load capacity (load capacity): 10.8 N (1.2 kp)
- Size: 59 mm (2-21/64″)
- Easy installation, practical, stable
- Extension distance of the ram: 16 mm
- Tool-free depth adjustment
- Minimum door gap: 6 mm
- brown
- high brand quality of Sugatsune / LAMP®

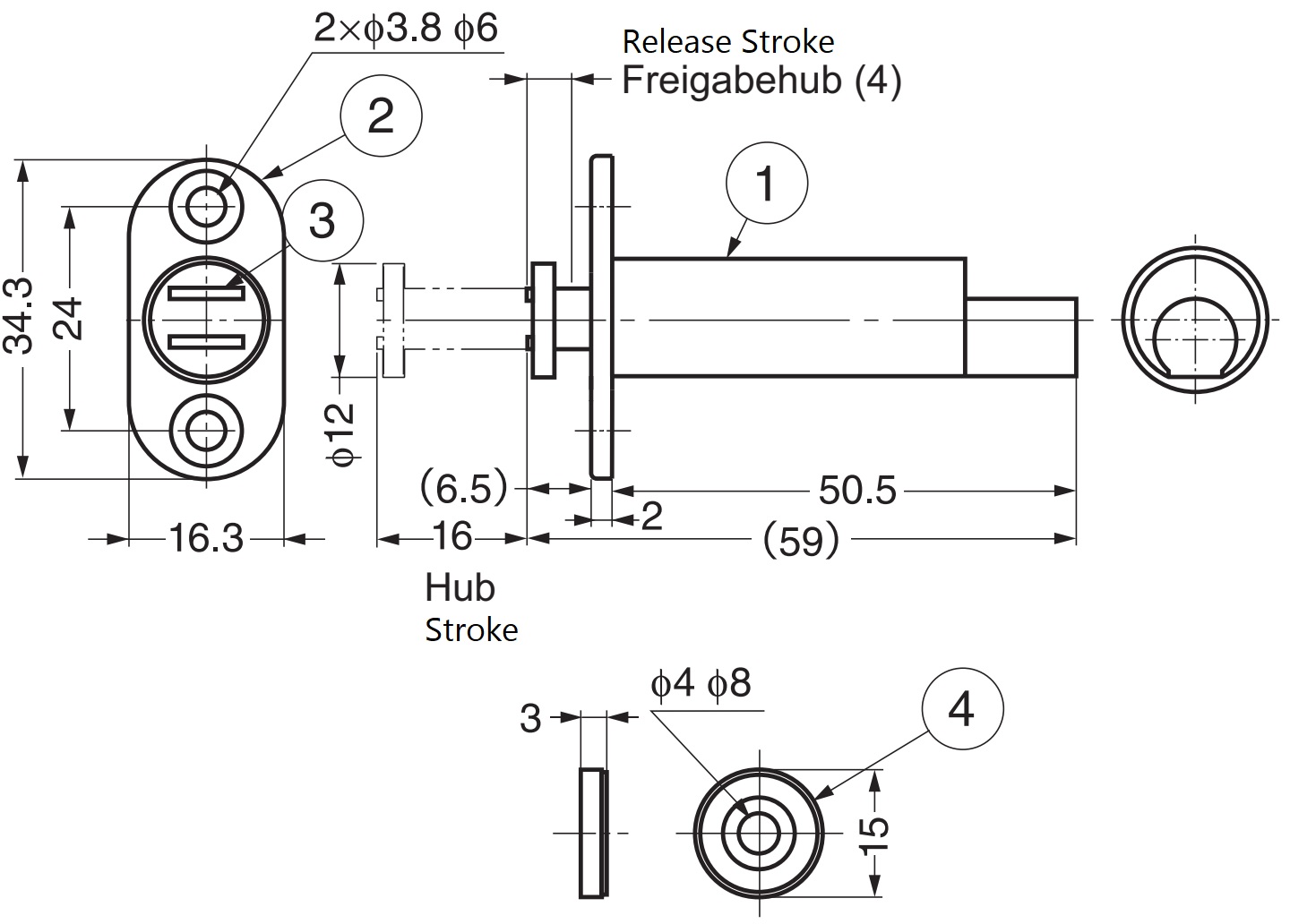

For more dimensions and details, see technical drawing.
The dimensions:
- Width of the magnetic snap catcher: 16.3 mm (41/64″)
- Depth of magnetic snapper: 59 mm (2-21/64″)
- Height: 34.3 mm (1-11/32″)

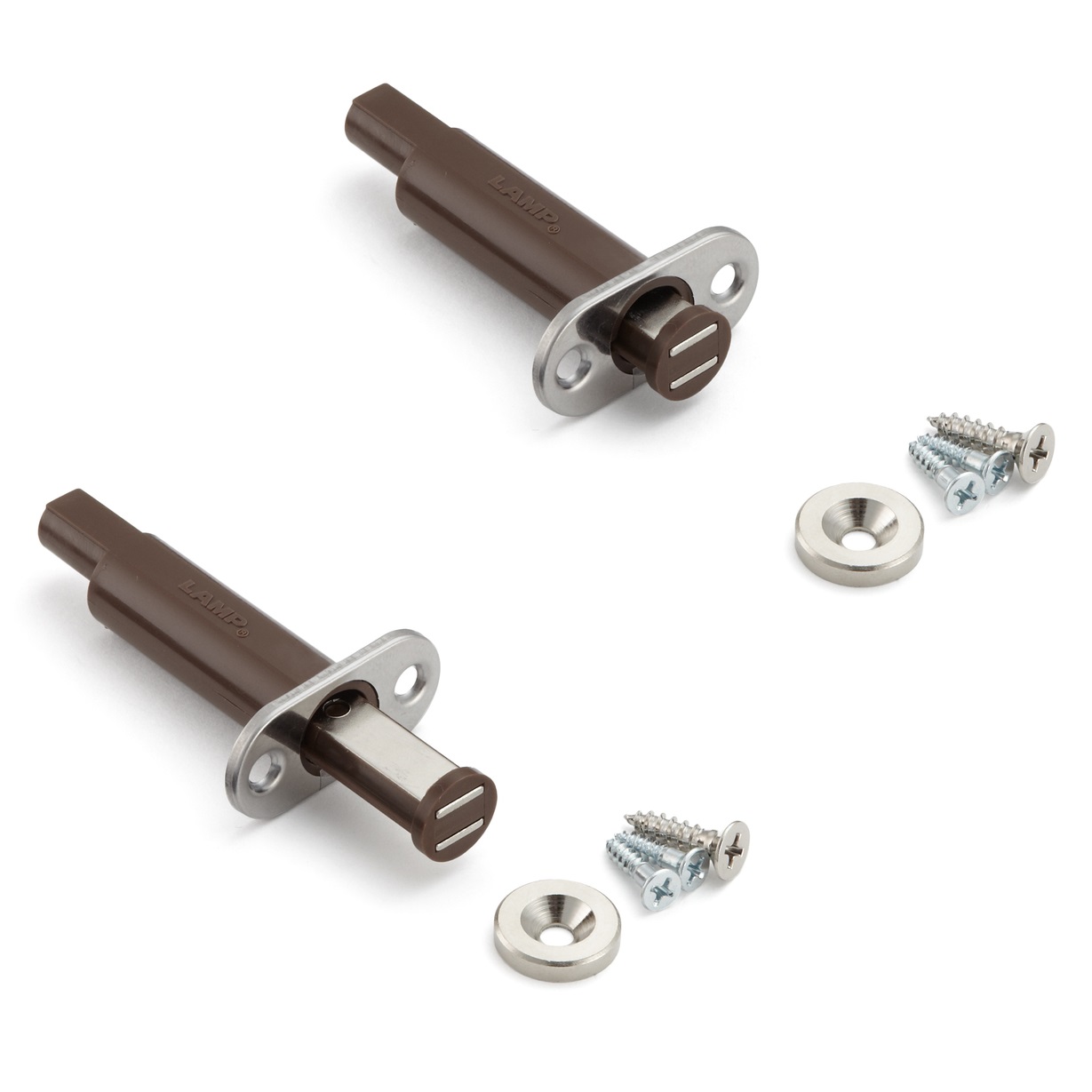

Included in delivery:
- 2 pieces of magnetic snap latches 140-050-016 made of high-quality plastic, brown
- 2 pieces counter plate made of steel, nickel-plated
- 2 times: 3 pieces of wood screws (2 pieces of flat-head wood screws 2.9 x 13 mm and 1 piece of flat-head wood screws 3.8 x 16 mm)
Manufacturer’s reference number:
- Article ID: 140-050-016
- Item number: MC-U60
- EAN number: 4510932016995
Manufacturer: Sugatsune / LAMP® (Japan)
