2 pieces of magnetic snap latches, incl. counter plate, surface: brown, 38 mm (1-1/2″), version: with long plunger, ML-120BR. Push-to-open door opener for furniture doors, cabinet doors and much more, by Sugatsune / LAMP® (Japan)

Description

2 pieces of high-quality magnetic snap latches, made of metal and robust plastic (metal and plastic), surface: brown, ML-120BR, size: 38 mm (1-1/2″), version: with long plunger

Application:

Push-to-open door openers for furniture doors, cabinet doors and much more.



The ML-120BR magnetic pressure latch enables the convenient opening and closing of handle-free furniture doors by pressure.

The ML-120BR push-to-open door opener has a ram extension of 15 mm (19/32″).

Thanks to its compact plastic housing, the ML-120BR magnetic slide latch can be inconspicuously screwed to the side of the carcass.

The counter plate of the ML-120BR magnetic snap latch has 4 pointed pins at the corners, which mortise into the wood surface. This allows the counter plate to be securely attached with just one screw.

The long ram increases the lifting distance, so that the door is opened further.

The high-quality magnetic snap latches 140-050-338 are ideal for, among other things:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Doors

Material:

• The magnetic snap latches 140-050-338 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Brown
• Brown gives a feeling of warmth and comfort, which creates a cozy and inviting atmosphere, ideal for living and dining areas
• Brown pairs well with wood, and is a versatile, neutral color that pairs well with other colors and materials, exuding timeless elegance



Assembly:

• Fastening is done using the six screws included in the scope of delivery (countersunk self-tapping screw, 4 x 16 mm)
• The magnetic snap latch ML-120BR has 2 mounting holes
• The distance between the mounting holes is 28 mm (1-7/64″)
• The latch is screwed onto the side of the body
• The minimum distance between the door and the furniture body is 3.5 mm (for more details, see assembly drawing)



Features:

• Version: with long plunger
• Weight: 53 g
• Load capacity (load capacity): 23.5 N (2.4 kp)
• Size: 38 mm (1-1/2″)
• Available in 3 colours: black, white and brown
• Easy installation, practical, stable
• Extension distance of ram: 15 mm (19/32″)
• Minimum door gap: 3.5 mm
• brown
• robust
• high brand quality of Sugatsune / LAMP®

For more dimensions and details, see technical drawing.

The dimensions:

• Width of the magnetic snappy: 36 mm (1-27/64″)
• Magnetic Fillet Depth: 38 mm (1-1/2″)
• Height: 15 mm (19/32″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

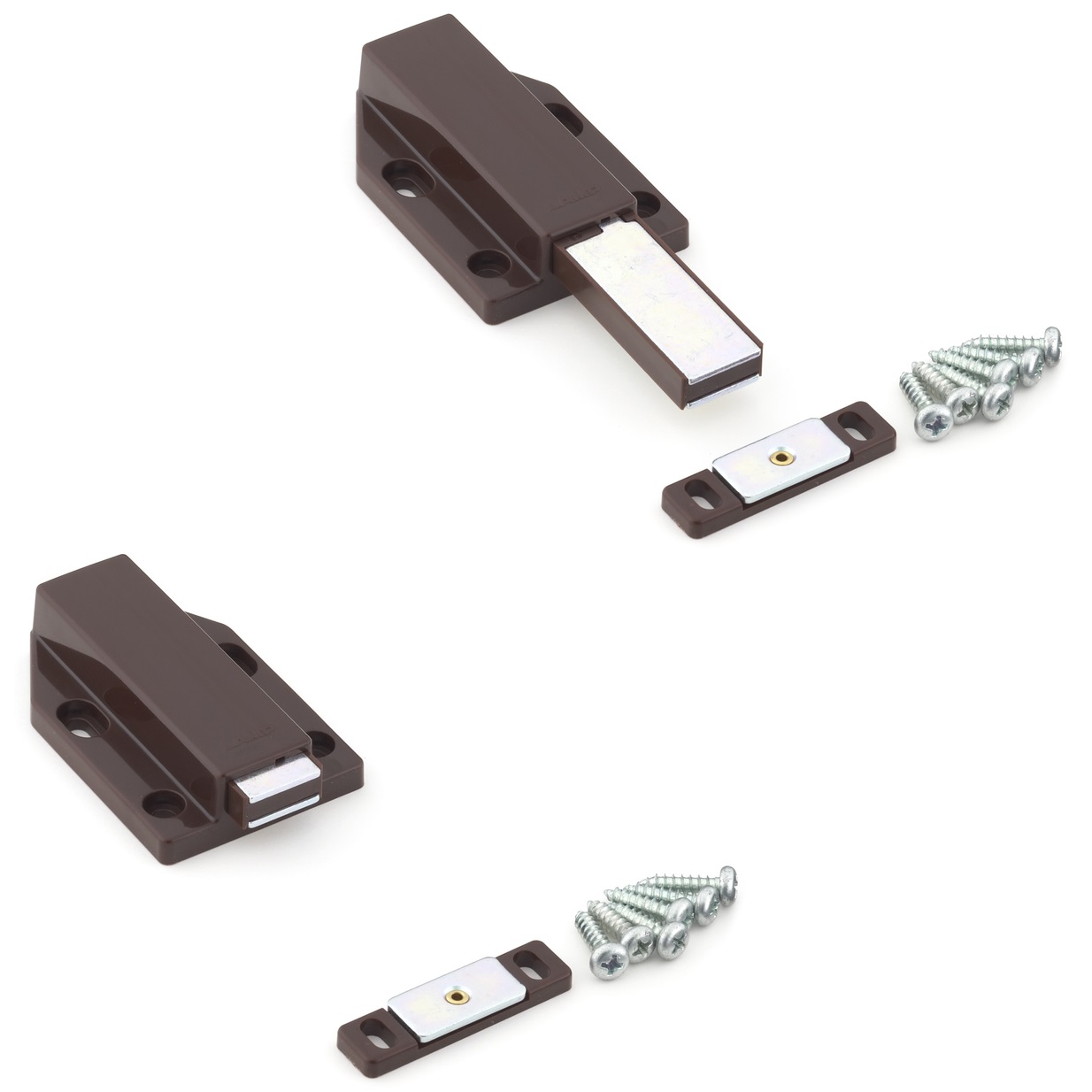

Included in delivery:

• 2 pieces of magnetic snap latches 140-050-338 made of metal and robust plastic, brown, version: with long plunger
• 2 pieces counter plate made of steel, nickel-plated
• 2 times: 6 pieces countersunk self-tapping screw 4 x 16 mm

Manufacturer’s reference number:

• Article ID: 140-050-338
• Item number: ML-120BR
• EAN number: 4510932004619

Manufacturer: Sugatsune / LAMP® (Japan)
