Description
2 pieces of magnetic snap latches, with stainless steel housing, incl. counter plate, made of high-quality stainless steel SUS430 (stainless steel), surface: satin matt, MC-S60
Application:
Push-to-open door openers for furniture doors, cabinet doors, cabinet doors and much more.
The MC-S60 magnetic snap latch enables the convenient opening and closing of handle-free furniture doors at the touch of a button.
The MC-S60 push-to-open door opener has a ram extension distance of 16 mm (5/8″).
Thanks to its compact plastic housing, the MC-S60 magnetic snap latch can be screwed inconspicuously to the side of the carcass.
The high-quality magnetic snap latches 140-050-129 are ideal for, among other things:
- Kitchen cabinet doors
- Bathroom furniture doors
- Furniture doors
- Doors
- Cabinet flaps
Material:
- The magnetic snap latches 140-050-129 are made of high-quality SUS430 stainless steel (stainless steel)
Surface:
- Satin matt
- Matte surfaces are less sensitive to fingerprints and dirt, which makes them easier to maintain
- They also give objects a modern, noble look and harmonise well with different materials and colours
Assembly:
- The fastening is done with the help of the three screws included in the scope of delivery (wood screws (1 piece flat head wood screw 3.1 x 13 mm and 2 pieces countersunk wood screw 3.8 x 16 mm))
- The MC-S60 magnetic flycatcher has 4 mounting holes
- The distance between the mounting holes is 26.6 mm (1-3/64″)

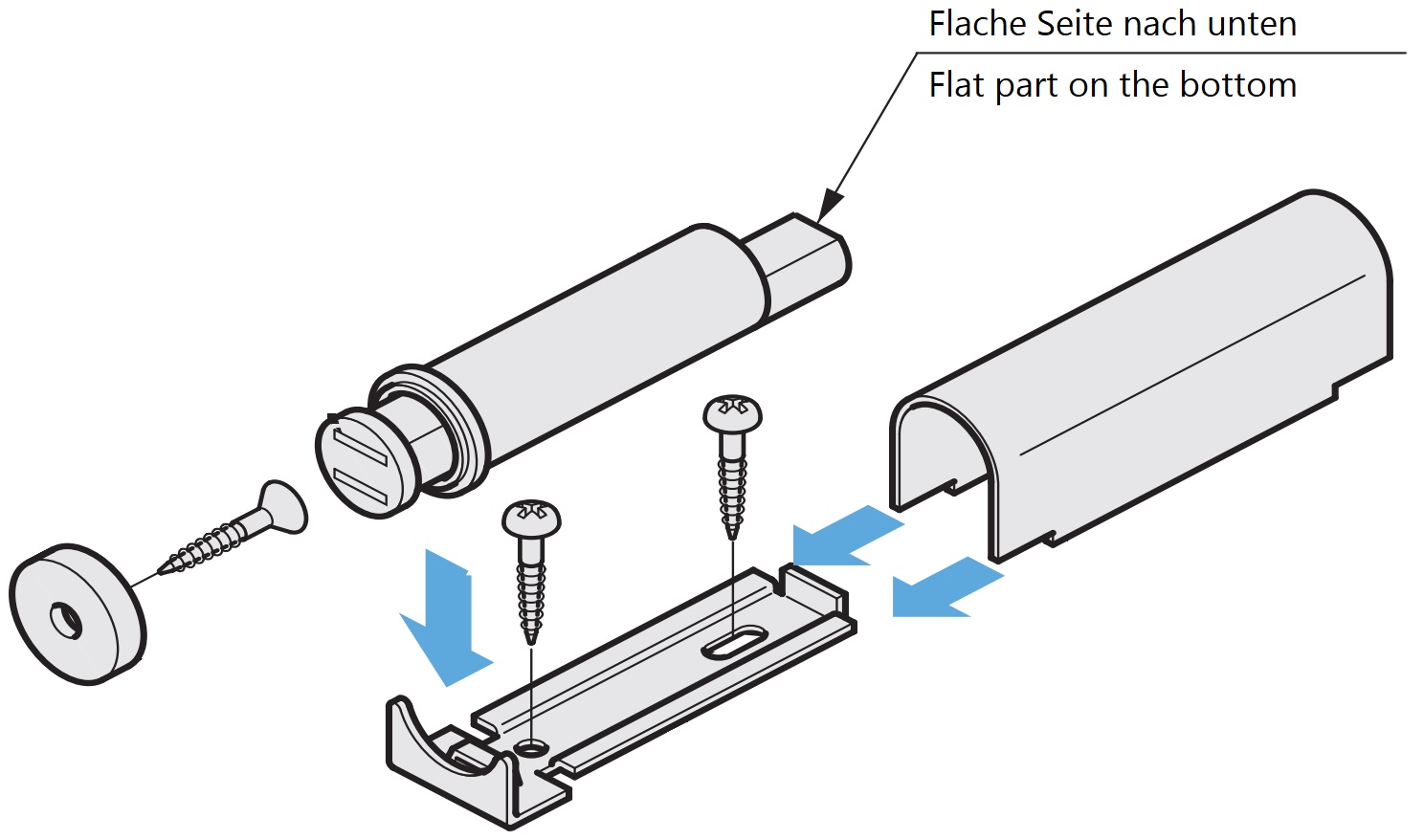

- The minimum distance between the door and the furniture body is 6 mm (for more details, see assembly drawing)
Features:
- Weight: 28.5 g
- Load capacity (load capacity): 10.8 N (1.2 kp)
- Size: 59.5 mm (2-11/32″)
- Easy installation, practical, stable
- Slide extension: 16 mm (5/8″)
- For recessed (internal) and surface-mounted (existing) doors
- Tool-free depth adjustment
- Minimum door gap: 6 mm
- satin matt
- Weather-resistant, rust-free or corrosion-resistant
- high brand quality of Sugatsune / LAMP®

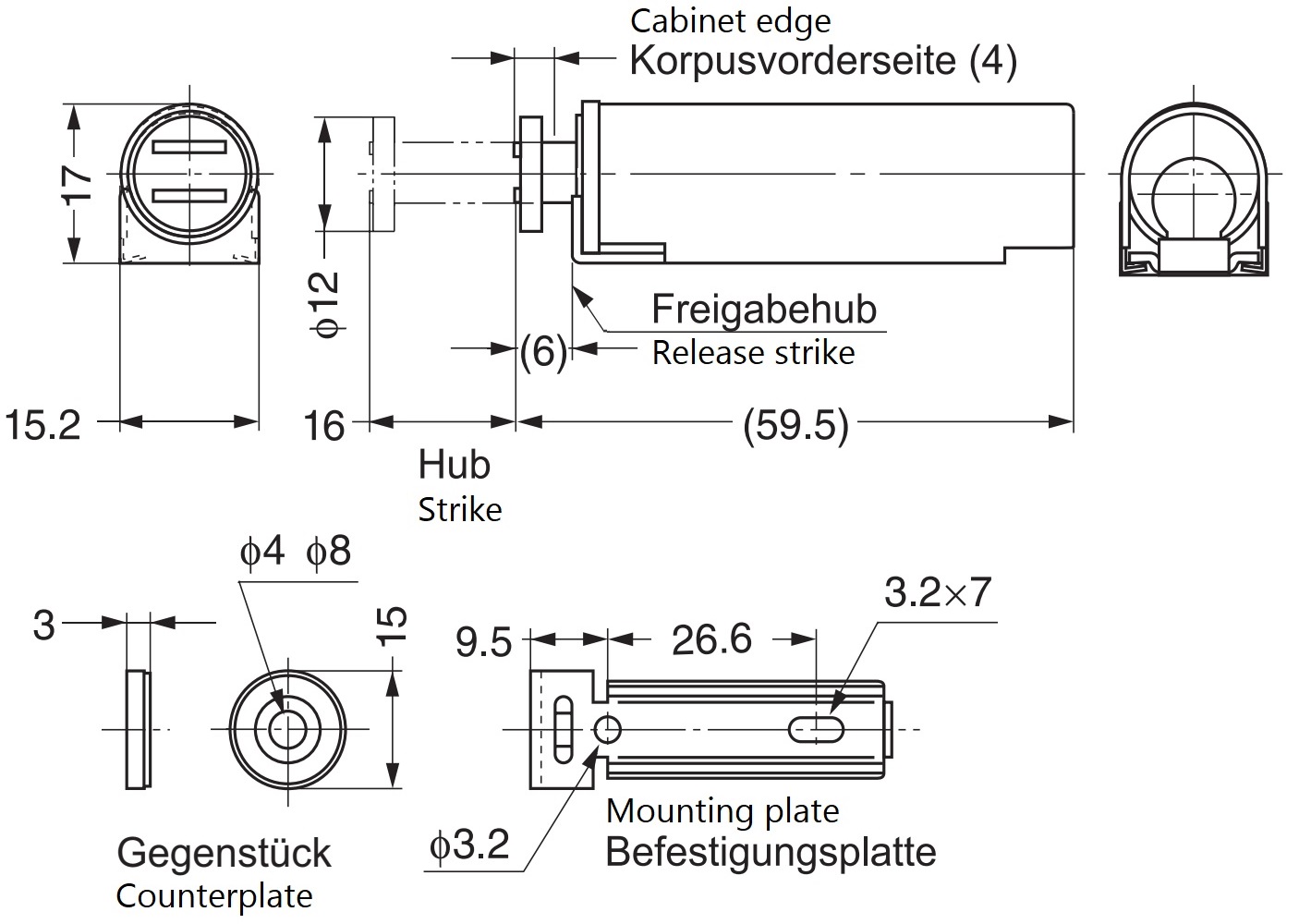

For more dimensions and details, see technical drawing.
The dimensions:
- Width of the magnetic snap catcher: 15.2 mm (19/32″)
- Magnetic Pressure Flap Depth: 59.5 mm (2-11/32″)
- Height: 17 mm (43/64″)
- Counterpart diameter: ⌀15 mm (19/32″)
- Counterpart Material Thickness: 3 mm (1/8″)

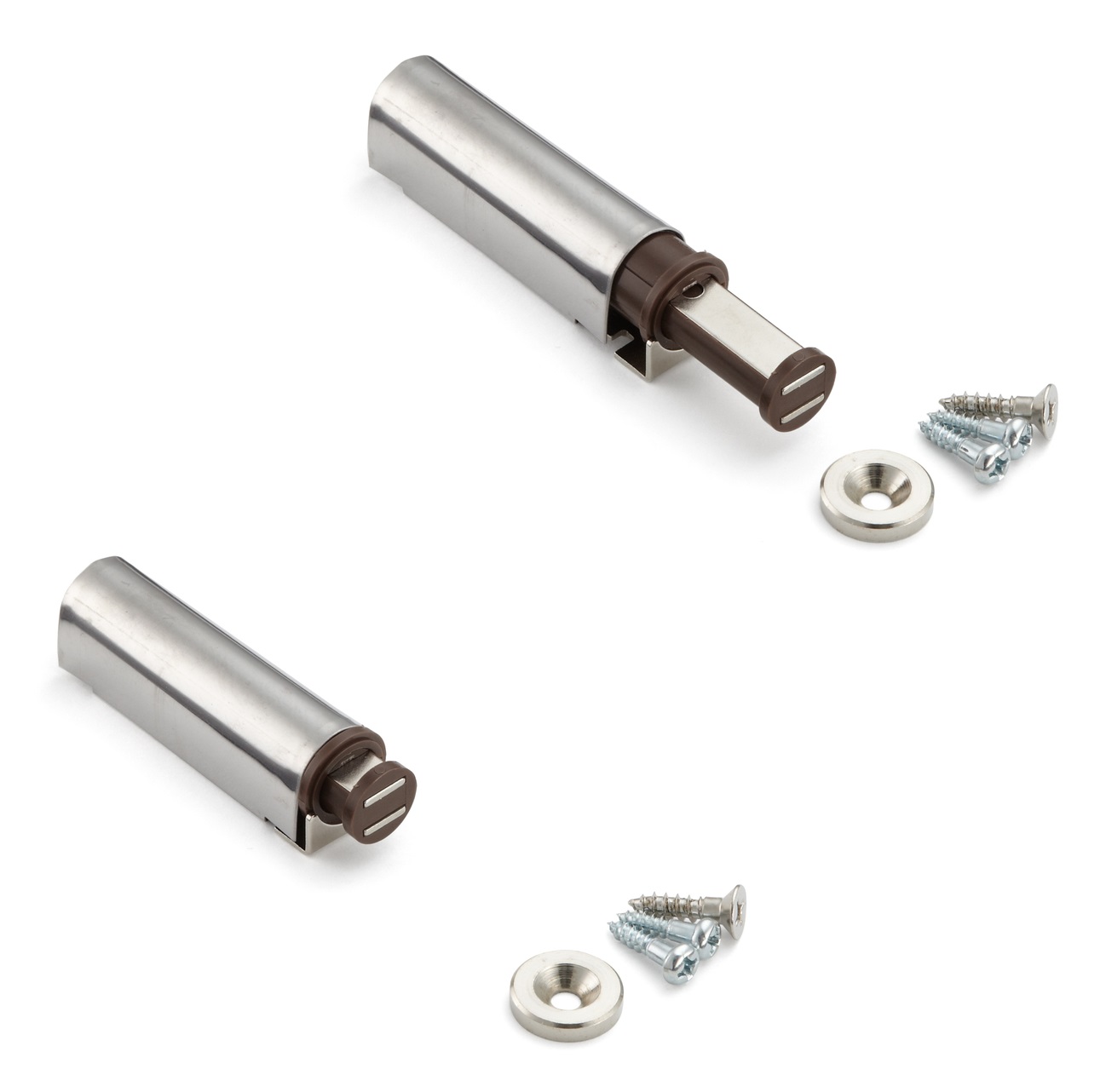

Included in delivery:
- 2 pieces of magnetic snap latches 140-050-129 made of high-quality stainless steel SUS430, satin matt
- 2 pieces counter plate made of steel, nickel-plated
- 2 times: 3 pieces of wood screws (1 piece of flat head wood screw 3.1 x 13 mm and 2 pieces of countersunk wood screw 3.8 x 16 mm)
Manufacturer’s reference number:
- Article ID: 140-050-129
- Item number: MC-S60
- EAN number: 4510932016988
Manufacturer: Sugatsune / LAMP® (Japan)
