Description
2 pieces round magnetic snap flap with adjustment option, incl. counter plate, made of robust polypropylene (PP), surface: black, MC-25BL
Application:
Push-to-open door openers for furniture doors, cabinet doors and much more.
The MC-25BL magnetic snap latch enables the convenient opening and closing of handle-free furniture doors at the touch of a button.
The MC-25BL push-to-open door opener has a ram extension distance of 10.5 mm (13/32″).
Thanks to its compact plastic housing, the MC-25BL magnetic pressure latch can be inconspicuously screwed onto the carcass side.
The depth of the MC-25BL magnetic snap latch can be adjusted by turning it without tools.
The high-quality magnetic snap latches 140-022-347 are ideal for, among other things:
- Cabinet flaps
- Kitchen cabinet doors
- Bathroom furniture doors
- Furniture doors
- Doors
Material:
- The magnetic snap latches 140-022-347 are made of robust polypropylene (PP)
- Polypropylene (PP) is lightweight, tough and resistant to moisture, many chemicals and corrosion – ideal for furniture and industrial fittings
- It offers high fatigue resistance and dampens noise and shocks on moving hardware parts
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- The fastening is done using the five screws included in the scope of delivery (wood screws 3.1 x 13 mm (4 pieces round head wood screw and 1 piece countersunk wood screw))
- The MC-25BL magnetic snap latch has 4 mounting holes
- The distance between the mounting holes is 28 mm (1-7/64″)
- The minimum distance between the door and the furniture body is 3 mm (for more details, see assembly drawing)
Features:
- Weight: 10g
- Load capacity (load capacity): 4.9 N (0.5 kp)
- Size: 44.8 mm (1-49/64″)

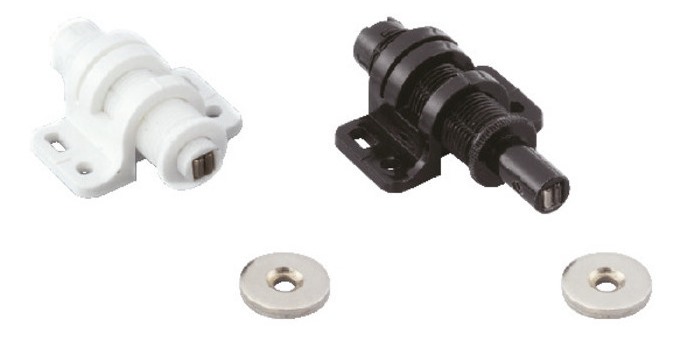

- Available in 2 colours: white and black
- Easy installation, practical, stable
- Extension distance of the ram: 10.5 mm (13/32″)
- Tool-free depth adjustment
- Minimum door gap: 3 mm
- black
- Robust, noise-damped
- high brand quality of Sugatsune / LAMP®

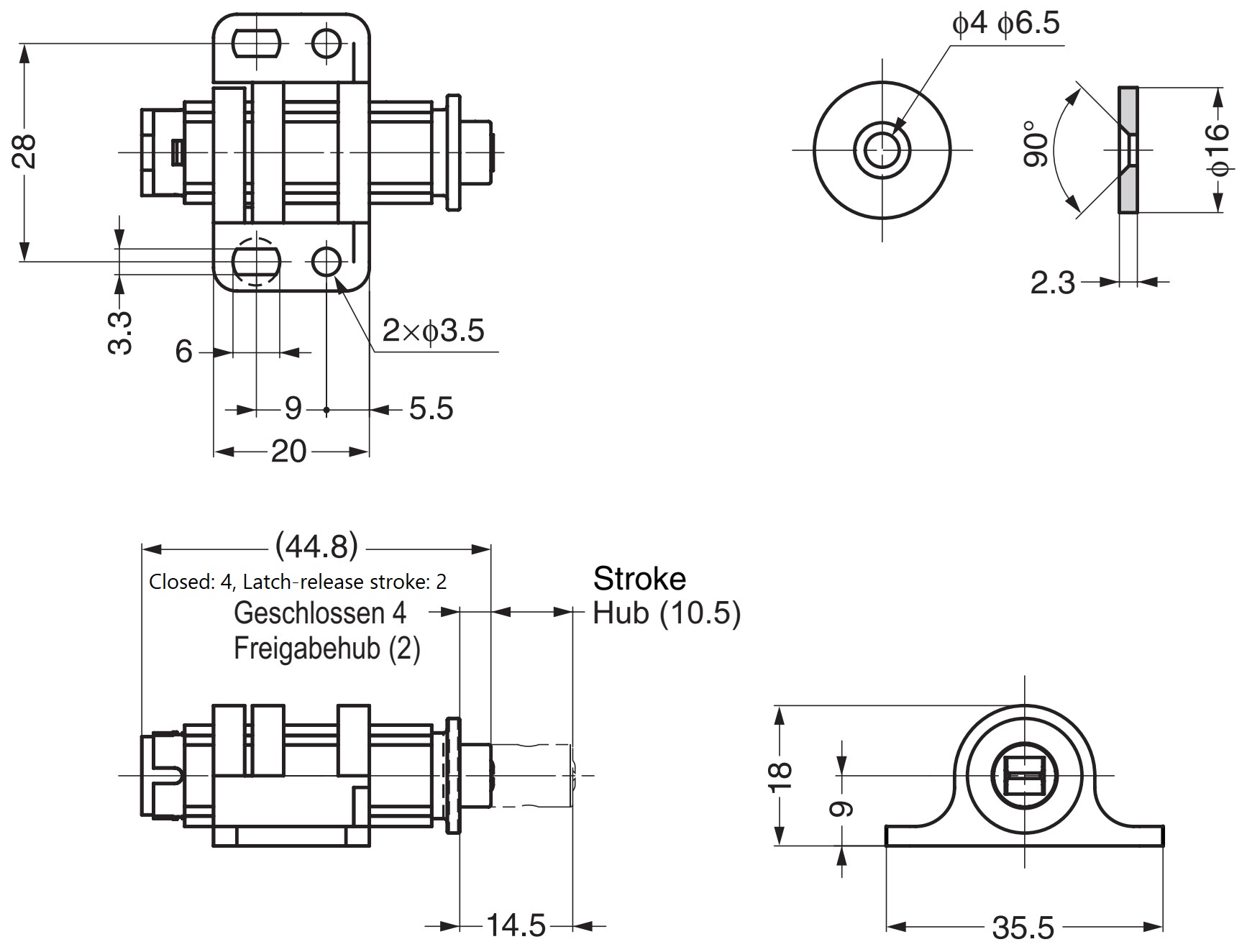

For more dimensions and details, see technical drawing.
The dimensions:
- Width of the magnetic snappy: 35.5 mm (1-25/64″)
- Depth of magnetic snapper : 44.8 mm (1-49/64″)
- Height: 18 mm (45/64″)
- Mounting plate diameter: ⌀16 mm (5/8″)

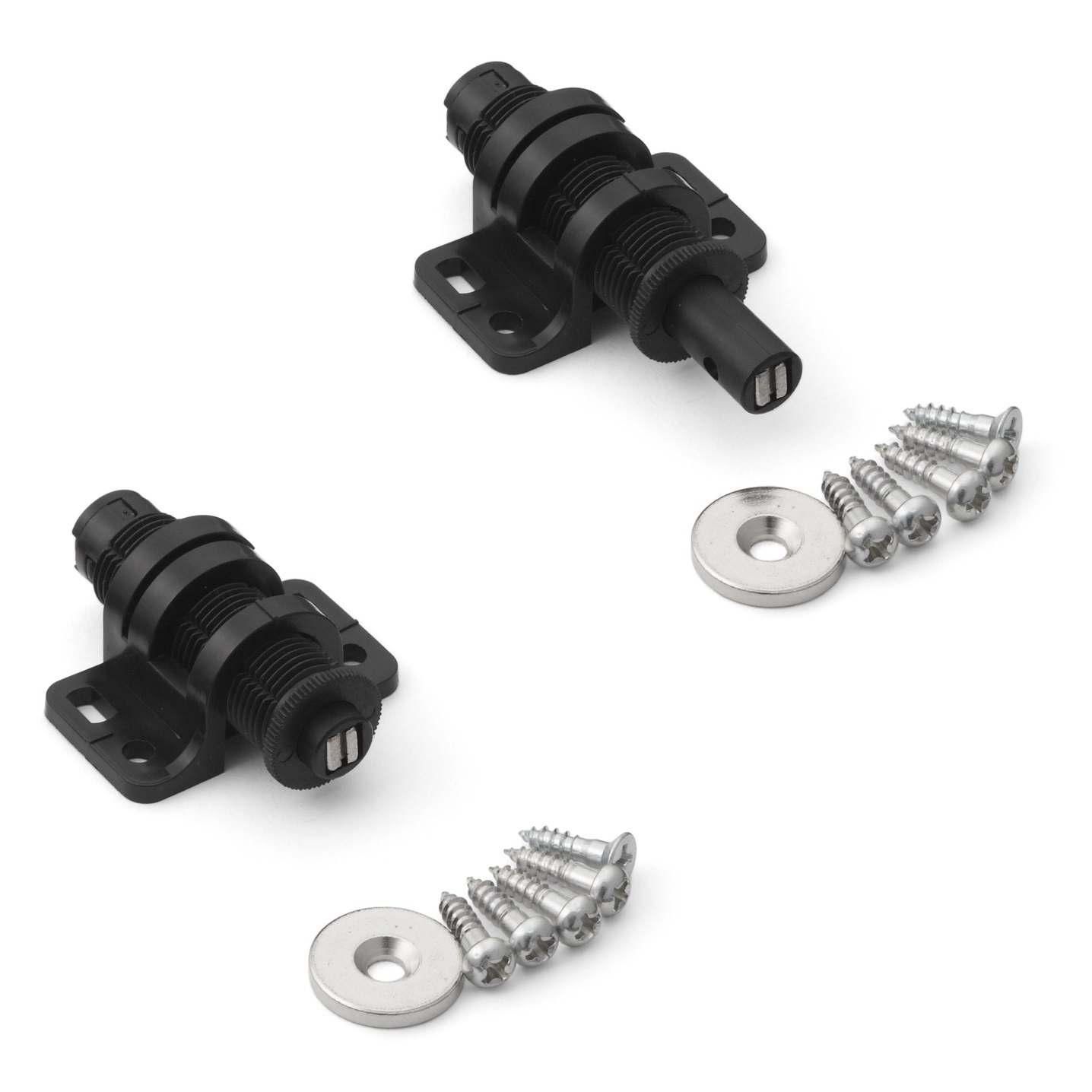

Included in delivery:
- 2 pieces of magnetic snap latches 140-022-347 made of robust polypropylene, black
- 2 pieces counter plate made of steel, nickel-plated
- 2 times: 5 pieces of wood screws 3.1 x 13 mm (4 pieces of round head wood screw and 1 piece of countersunk wood screw)
Manufacturer’s reference number:
- Article ID: 140-022-347
- Item number: MC-25BL
- EAN number: 4510932057608
Manufacturer: Sugatsune / LAMP® (Japan)
