Description
20 pieces robust self-clinching nut with internal thread M6, made of robust steel, surface: galvanized, 8066705, size: 13.6 mm (17/32″)
Application:
Practical impact sleeve with waistband for furniture connections and much more.
The practical impact sleeve with collar 8066705, with internal thread M6 and wide collar is ideal for resilient and detachable connections in wood-based materials such as chipboard, MDF or multiplex.
Thanks to the circumferential grooves, the self-clinching nut with internal thread M6 offers 8066705 secure hold in the drill hole and is particularly easy to install – by pressing in or driving in lightly, without any special tools.
Advantages:
– Quick and safe assembly
– No damage to the workpiece due to external threads
– Ideal for removable furniture connections- Rust protection due to zinc
plating- Flange prevents slipping into the material
The impact sleeves are also suitable for repairs or retrofits on existing furniture.
The high-quality impact joints 8066705 are ideal for, among other things:
- Shelving system
- Bed
- Carcass furniture
- DIY project with wooden panels
- Living room furniture
- Office furniture
- Furniture Connections
Material:
- The impact sleeves 8066705 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Galvanized
- The galvanized surface protects against rust and corrosion
Assembly:
- Press-fit nut with internal thread M6 8066705 is for press-fitting or driving

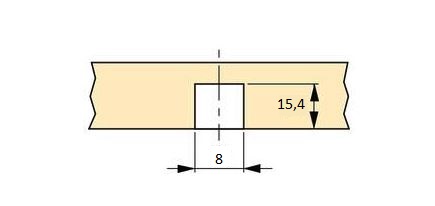

- To install the impact sleeve, a hole with a diameter of ⌀8.7 mm (11/32″) must be drilled (for more details, see assembly drawing)
Features:
- Weight: 5.2 g
- Size: 13.6 mm (17/32″)
- Easy installation, practical, stable
- Female thread: M6
- The socket is available in three thread variants: M6, M8 and M10
- With wide flange for high pull-out strength
- galvanized
- Steel
- robust
- high brand quality of UMAXO®

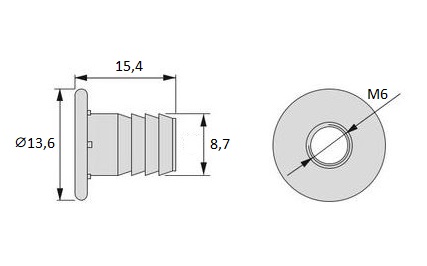

For more dimensions and details, see technical drawing.
The dimensions:
- Fret Outer Diameter: ⌀17/32″ (13.6 mm)
- Outer diameter of socket: ⌀8.7 mm (11/32″)
- Overall Length: 15.4 mm (39/64″)
Included in delivery:

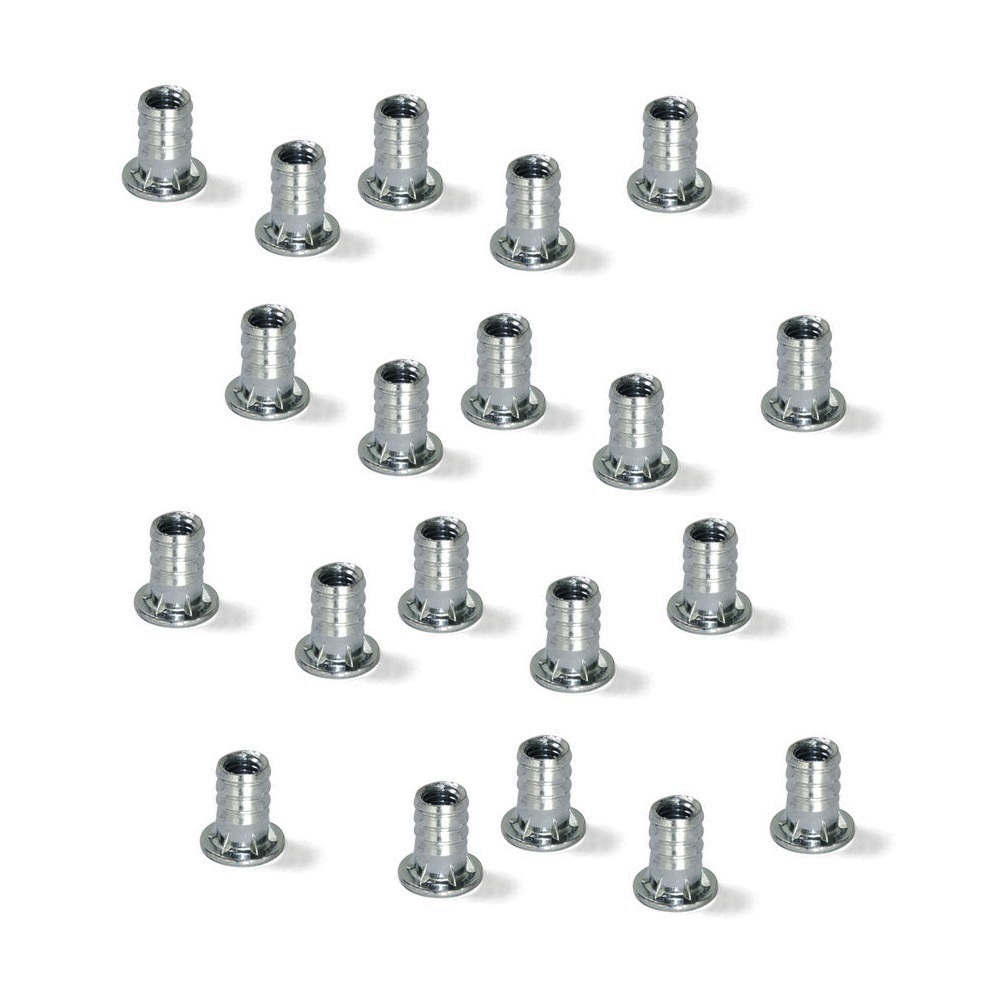

- 20 pieces press-fit nut with internal thread M6 8066705 made of robust steel, galvanized
Manufacturer’s reference number:
- Article ID: 8066705
- EAN number: 8432393120751
Manufacturer: EMUCA
