Description

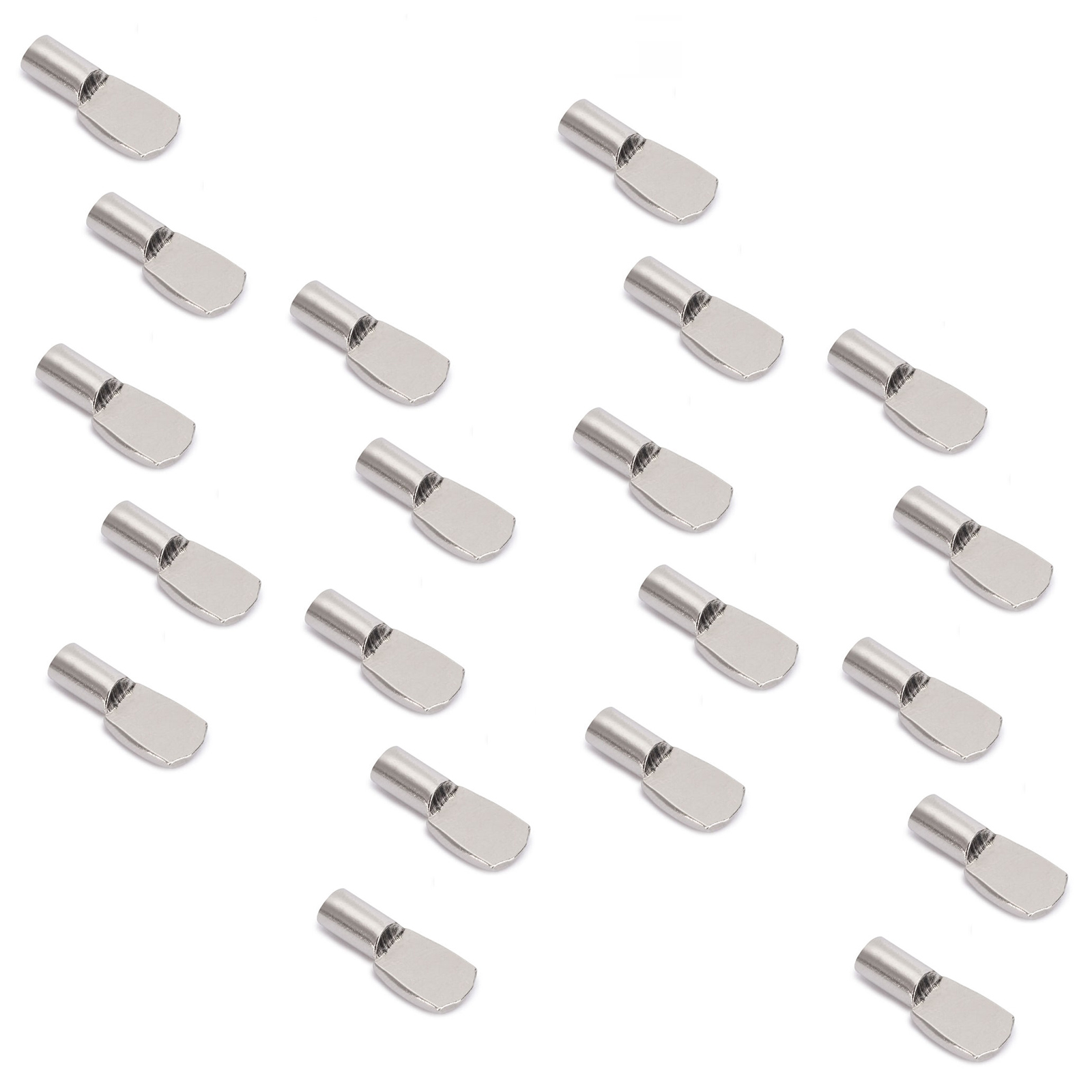

20 pieces of high-quality bucket base supports, made of robust steel, surface: nickel-plated, 5062107
Application:
Shelf supports for row of holes, shelves, shelves, cabinet shelves, shelves and much more.
This bucket shelf support 5062107 is suitable for the stylish attachment of shelves.
The 5062107 with a plug-in bolt diameter of ⌀5 mm (13/64″) is a discreet and reliable solution for fastening wooden shelves in shelving systems and furniture.
Thanks to the filigree design, the support remains almost invisible after assembly, thus underlining the purist design of modern furniture.
The “spoon shape” provides a stable and secure support surface for shelves.
The ⌀5 mm (13/64″) insertion bolt makes it compatible with standardised furniture holes.
The high-quality 5062107 tuck-in shelf supports are ideal for, among other things:
- kitchen cabinets
- bathroom furniture
- Home furniture
- cabinets
- Shelving
- Showcases
- Walls
- Row of holes
- Shelves
- Shelves
- Cabinet shelves
- Shelves
Material:
- The 5062107 insertion floor supports are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- nickel plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- The bottom support 5062107 is inserted into the pre-drilled mounting hole with a diameter of ⌀5 mm (13/64 “) and a depth of at least 8 mm (5/16”) in the body wall
- At least four plug-in shelf brackets are 5062107 necessary to attach a shelf
- The shelf is placed on the shelf supports 5062107 (for more details, see assembly drawing)
Features:
- Weight: 2.6 g
- Size: 19 mm (3/4″)
- practical, stable
- Suitable for 32 mm hole row systems
- Ideal for wooden shelves in cabinets, shelves or wall units
- The nickel-plated surface ensures corrosion resistance and an attractive appearance
- Easy to install: Inserts into pre-drilled ⌀5 mm (13/64″) holes in the sidewall
- No screws required
- nickel plated
- Steel (robust)
- high brand quality of UMAXO®
For more dimensions and details, see technical drawing.
The dimensions:
- Shelf beam length: 19 mm (3/4″)
- Bearing surface: 11 mm (7/16 “) x 7 mm (9/32”)
- Length of the plug-in part: 8 mm (5/16″)
- Mounting pin diameter: ⌀5 mm (13/64″)
- Thickness of the contact surface: 3 mm (1/8″)
Included in delivery:
- 20 pieces 5062107 bucket base supports made of robust steel, nickel-plated
Manufacturer’s reference number:
- Article ID: 5062107
- EAN number: 8432393111810
Manufacturer: EMUCA
