Description

4 pieces robust tea trolley castor, made of metal and robust plastic (metal and plastic), surface: nickel-plated, 08.01.110-1, diameter: ⌀75 mm (2-61/64″), load capacity: 60 kg (133 lbs)

Application:

High-quality serving trolley roll for tea trolleys, serving trolleys, side trolleys and much more.



The Serving Trolley Roll 08.01.110-1 is a classic furniture roll for lightweight, movable furniture and serving trolleys.

The metal pin allows for easy plug-in mounting in the matching plastic socket.

Due to the castor diameter of ⌀75 mm (2-61/64″), the castor is particularly suitable for furniture that needs to be moved easily and comfortably.

The nickel-plated surface goes well with bright, modern and classic furniture constructions.

The black polyamide wheel is robust and suitable for use on lightweight interior furniture.

The tea trolley roll 08.01.110-1 is a practical solution when tea trolleys, trolleys or small furniture are to be made mobile or repaired.

The high-quality tea trolley castors 08.01.110-1 are ideal for, among other things:

• Trolleys
• Small Furniture
• Mobile storage
• Wooden Racks
• light furniture
• Tea trolley
• Serving trolley
• Side trolley

Material:

• The tea trolley rollers 08.01.110-1 are made of metal and robust plastic (metal and plastic)
• Castor with black plastic tread
• Bushing: made of plastic
• The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• nickel plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that looks modern and timeless at the same time
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
• Castor: black
• Socket: black

Assembly:

• No screws required
• The roller is mounted via the metal pin with the plastic bushing
• For the mounting hole, a hole for the socket ⌀10 mm (25/64″) x 34 mm (1-11/32″) is suitable
• First of all, a suitable mounting hole for the plastic bushing must be prepared
• The plastic bushing is inserted into the bore
• After that, the metal pin of the tea trolley roll is inserted into the plastic bushing
• The castor is mounted in such a way that it can run freely and carry the piece of furniture safely

Features:

• Weight: 109 g (for 4 pieces: 436 g)
• Load capacity (load capacity): 60 kg (133 lbs) – for 4 pieces
• Diameter: ⌀75 mm (2-61/64″)
• Easy installation, stable
• Tea trolley roller with metal pin
• With black plastic bushing
• Roll diameter ⌀75 mm (2-61/64″)
• Overall Height: 86 mm (3-25/64″)
• Plug-in mounting without screws
• For lightweight mobile furniture
• Classic Roll Shape for Serving Trolleys
• nickel plated
• robust
• High brand quality from UMAXO®

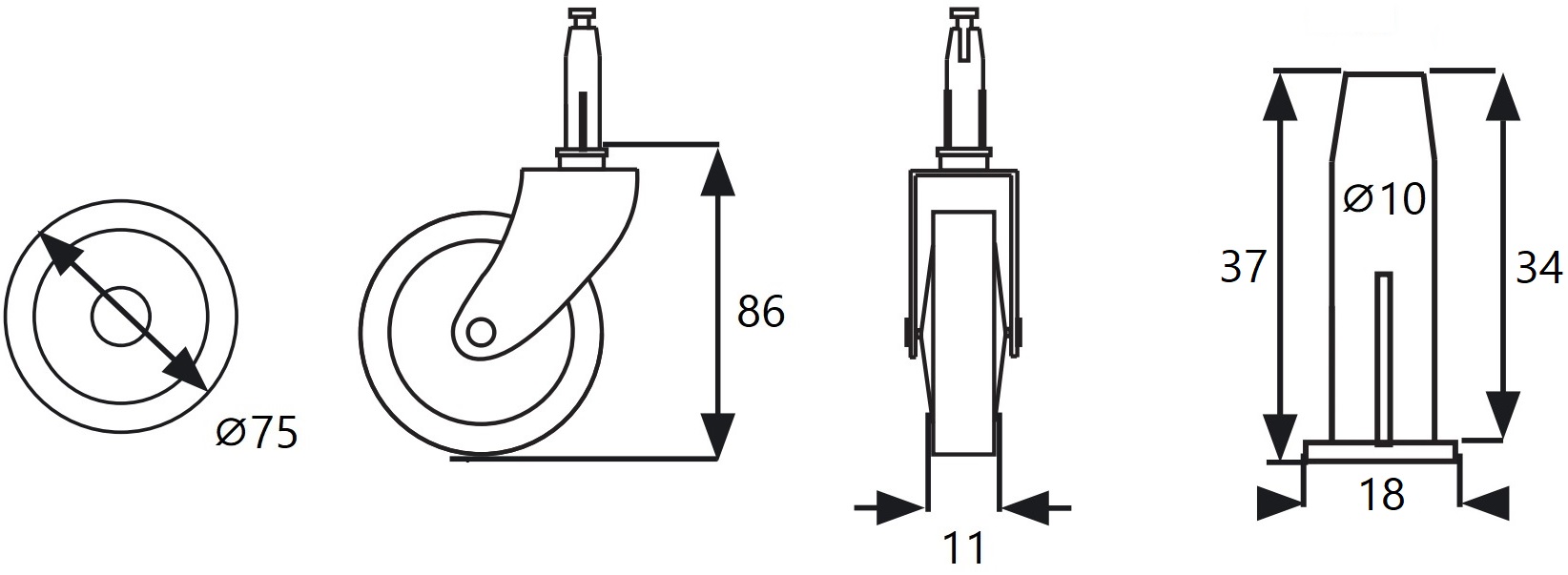

For more dimensions and details , see technical drawing.

The dimensions:

• Furniture castor diameter: ⌀75 mm (2-61/64″)
• Width: 11 mm (7/16″)
• Height: 86 mm (3-25/64″)
• Socket diameter: ⌀10 mm (25/64″)
• Socket depth: 34 mm (1-11/32″)
• Total jack length: 37 mm (1-29/64″)
• Outer Diameter of Bushing: ⌀18 mm (45/64″)
• Pin diameter: ⌀7 mm
• Pen length: 35 mm



Included in delivery:

• 4 pieces tea trolley roll 08.01.110-1 made of metal and robust plastic, nickel-plated, 75 mm (2-61/64″)
• Plastic bushing
• This item does not include mounting screws

Additional Information:

• Download Reach Statement

Manufacturer’s reference numbers:

• Article ID: 08.01.110-1 (08.01.110)
• GTIN number (EAN, UPC): 5704866005081

Manufacturer: SISO Denmark
