Description
4 pieces round top plate with W3/8 thread and three mounting holes, screw-on plate, made of solid zinc alloy (ZDC), surface: zinc chromate, AD-555-28, size: 28 mm (1.2″)
Application:
Mounting plate, for furniture feet, furniture castors, machine feet, cabinet legs, sofa feet and much more.
The AD-555-28 mounting plate is used to fasten furniture feet, leveling feet, etc. under furniture, sofas, appliances, machinery, etc.
Also suitable for replacing defective furniture feet, furniture castors or sofa feet.
The galvanized surface of the top plate protects it from rust and corrosion.
The high-quality 200-140-075 top plates are ideal for:
- Feet
- Leveling feet
- Cabinet castors
- Articulated feet
- Legs
- Adjustable feet
- Containers
- Furniture feet
- Furniture castors
- Machine feet
- Cabinet legs
- Sofa feet
Material:
- The AD-555-28 add-on plates are made of solid zinc alloy (ZDC)
Surface:
- Zinc chromate
Assembly:
- The top plate has three mounting holes with the diameter (⌀d2) ⌀3.2 mm (1/8″) and is attached to the lower surface of the piece of furniture with three screws (not included)
- The furniture feet or furniture castors, which are equipped with a screw, are then screwed into the thread of the AD-555-28 mounting plate and tightened
Features:
- Weight: 15 g
- Size: 28mm (1.2″)
- threaded W3/8
- round
- with three mounting holes
- stable
- Zinc chromate
- Zinc alloy
- ZDC
- high brand quality of Sugatsune / LAMP®

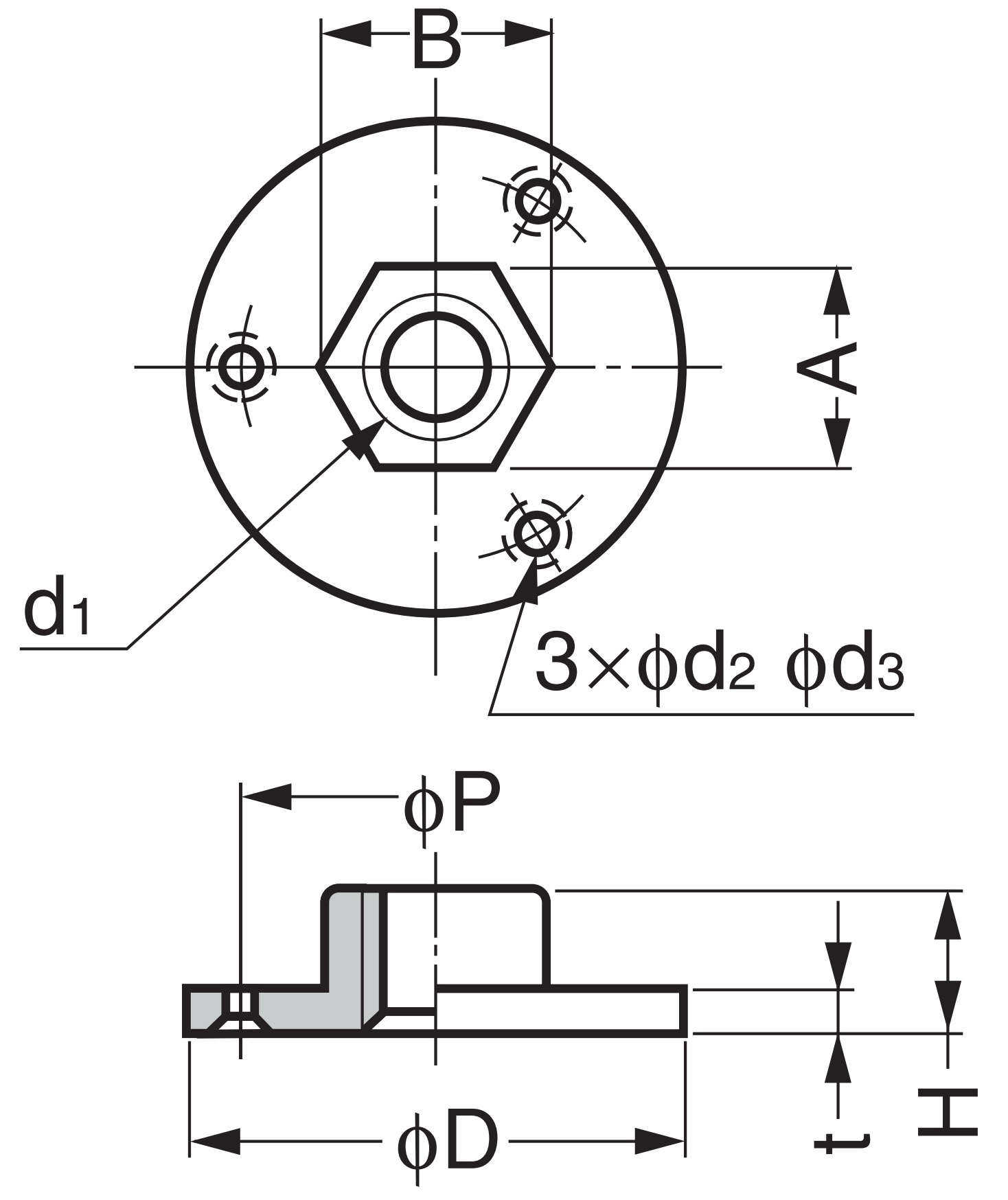

For further dimensions and details see technical drawing .
The dimensions:
- Plate Diameter (⌀D): ⌀28 mm (1-7/64″)
- Height (H): 9 mm (23/64″)
- Thread (d1): W3/8
- Mounting hole diameter (⌀d2): ⌀3.2 mm (1/8″)
- Distance between center point and mounting hole (⌀P): ⌀20 mm (25/32″)
- Material thickness (t): 2.7 mm (7/64″)
Included in delivery:
- 4 pieces of fitting plate AD-555-28 made of solid zinc alloy, zinc chromate
Manufacturer’s reference number:
- Article ID: 200-140-075
- Item number: AD-555-28
- EAN Number: 4510932034692
Manufacturer: Sugatsune / LAMP® (Japan)
