Description
Eight pieces of high-quality glass shelf supports, made of solid die-cast zinc, surface: black, 4007953, size: 5 mm (13/64″)
Application:
Glass Shelf Holder for Glass Shelf Shelves, Glass Cabinet Shelves, Bathroom Cabinets and more.

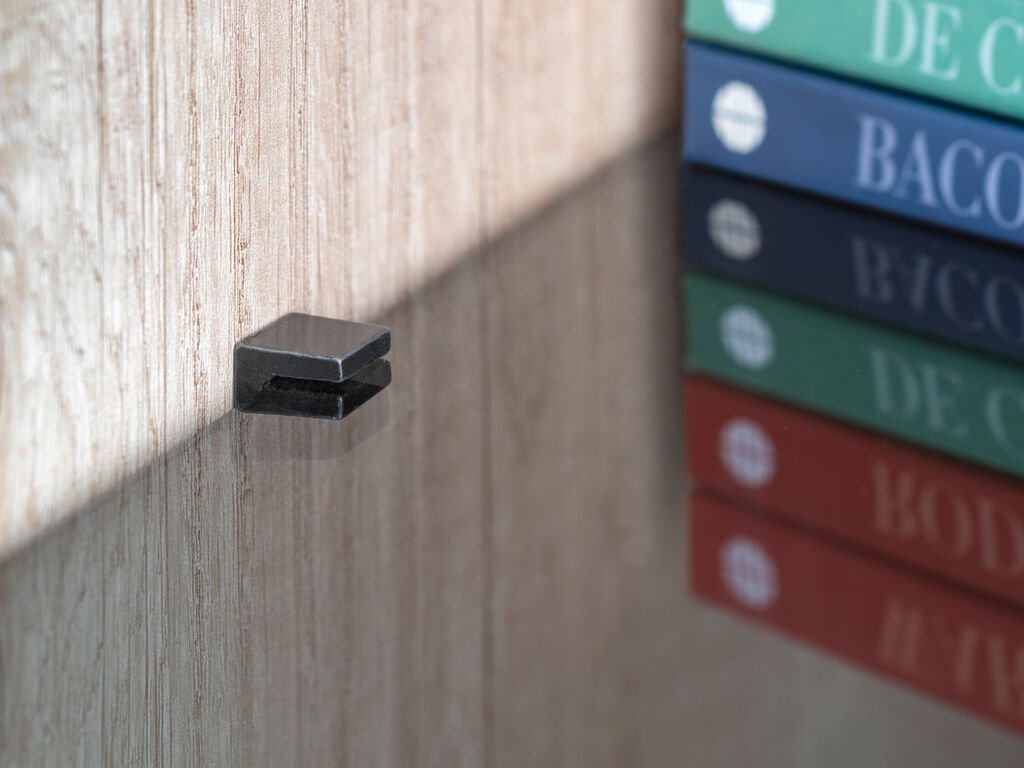

This glass shelf support 4007953 is suitable for securely and stylishly attaching glass shelves.
Suitable for glass thicknesses from 6 mm (15/64 “) to 8 mm (5/16”).
The glass bottom holder 4007953 is made of zamak with transparent plastic insert to protect the glass from scratches.
The integrated plastic pad fixes the glass in place in a non-slip manner and dampens vibrations, so that sensitive floors remain permanently protected.
The 5 mm (13/64″) insertion bolt makes it compatible with standardised furniture holes.
The system is particularly suitable for display cabinets, wall units or bathrooms.
The combination of metal and plastic of the glass shelf support 4007953 offers both stability and protection for sensitive glass surfaces.
The high-quality glass shelf supports 4007953 are ideal for, among other things:
- Shelving
- kitchen cabinets
- Showcases
- Bathroom
- Home furniture
- Glass shelves
- Glass cabinet shelves
- Bathroom cabinets
Material:
- The glass shelf supports 4007953 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- The glass bottom holder 4007953 is inserted into the pre-drilled mounting hole with a diameter of ⌀5 mm (13/64 “) and a depth of at least 8 mm (5/16”) in the body wall
- At least four glass shelf brackets are 4007953 necessary to attach a shelf
- The shelf is placed on top of the glass shelf holders 4007953
- The center of the mounting hole on the body wall must be positioned 4 mm below the desired position of the shelf
- Then the clamping screw of the glass shelf support is tightened so that the glass shelf is firmly attached (for more details, see assembly drawing)
Features:
- Weight: 8.35 g
- Size: 5 mm (13/64″)
- For glass thicknesses from 6 mm (15/64 “) to 8 mm (5/16”)
- Easy installation, practical, stable
- black
- Zamak (zinc die-casting)
- high brand quality of UMAXO®
For more dimensions and details, see technical drawing.
The dimensions:
- Shelf Bracket Height: 18.5 mm (47/64″)
- Width: 13.2 mm (33/64″)
- Depth: 12mm (15/32″)
- Mounting pin length: 8 mm (5/16″)
- Mounting pin diameter: ⌀5 mm (13/64″)
Included in delivery:
- Eight pieces of glass shelf brackets 4007953 made of solid die-cast zinc, black
Manufacturer’s reference number:
- Article ID: 4007953
- EAN number: 8432393133140
Manufacturer: EMUCA
