Description

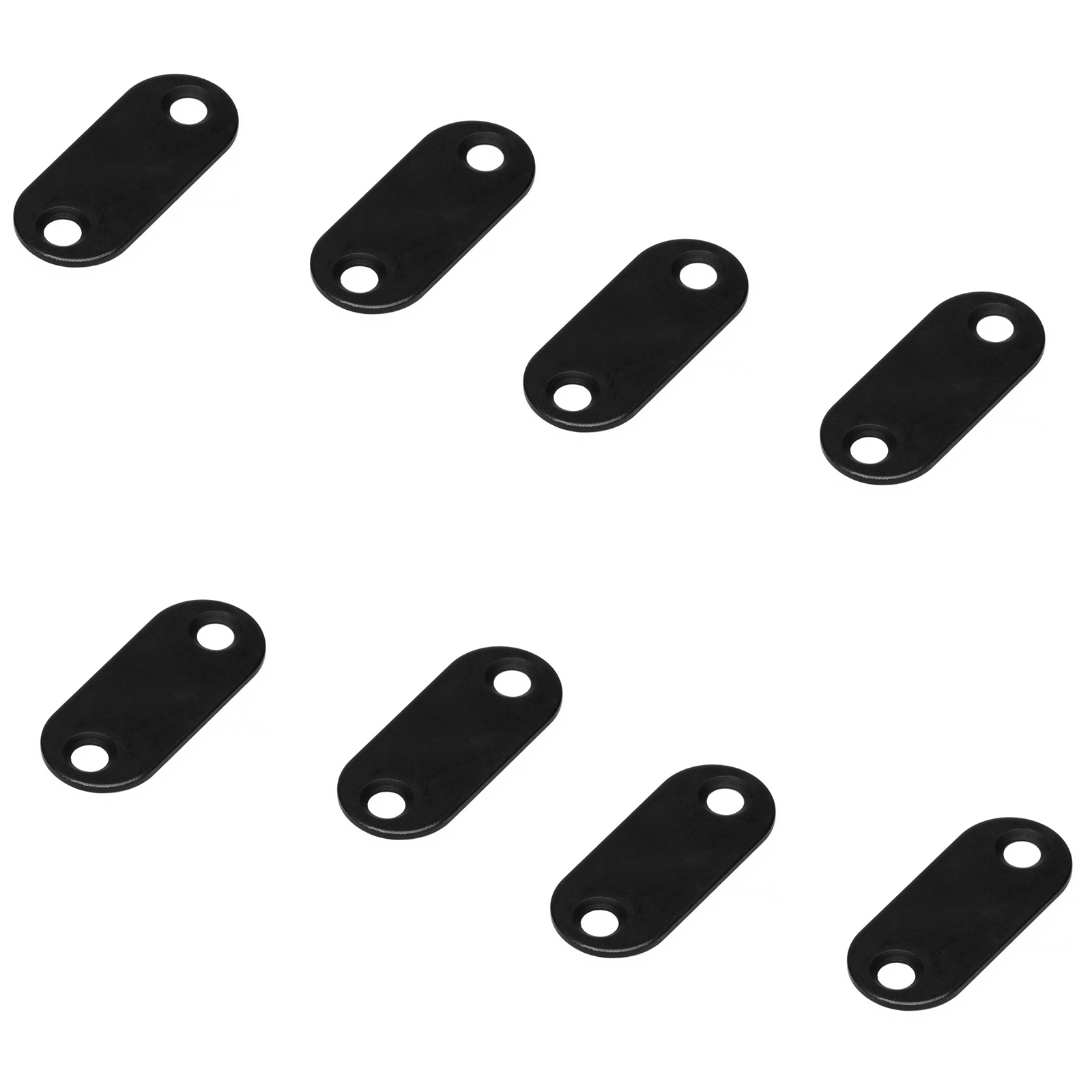

8 pieces high-quality long-oval magnetic counter plate with 2 countersunk holes, made of robust steel, surface: black, MC-YN001U-BL (140-038-025), size: 35 mm (1-3/8″)
Application:
Magnetic counterpart for magnetic latches, magnetic lock, cabinet door and much more.
The magnetic counter plate MC-YN001U-BL (140-038-025) made of robust steel serves as a counterpart to magnetic latches and push-to-open magnetic closures.
The magnetic counterpart MC-YN001U-BL is suitable for all magnetic closures and push magnetic closures.
The compact format of only 35 mm (1-3/8″) x 15 mm (19/32″) allows it to be mounted inconspicuously on wooden or metal doors.
The 1.2 mm (3/64″) thin design of the MC-YN001U-BL magnetic counterpart eliminates gaps and makes it easier to adjust the front.
Thanks to the galvanized surface, the MC-YN001U-BL magnetic counter plate is corrosion-resistant.
This ensures safe closing and opening without handles.
The high-quality MC-YN001U-BL magnetic counter plates are ideal for, among other things:
- Furniture doors
- Push-to-Open Magnetic Closures
- Magnetic Flycatcher
- Magnetic closure
- Cabinet door
Material:
- MC-YN001U-BL magnetic counter plates are made of sturdy steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with 4 x 16 mm countersunk chipboard screws, self-tapping (not included)
- The MC-YN001U-BL magnetic counter plate is aligned on the inside of the door so that it sits exactly opposite the magnetic lock
- The counter plate has 2 mounting holes with a diameter of ⌀4.6 mm (3/16″)
- The distance between the mounting holes (hole spacing) is 25 mm (63/64″)
- Two 2 mm centering holes are made and the magnet counterpart 140-038-025 is then screwed in place with 2 chipboard screws, with the screw head flush in the countersink
- The function is then to be tested by closing the door and activating the push-to-open mechanism
- If necessary, the screw is loosened slightly and the magnetic counter plate 140-038-025 is moved slightly (for more details, see assembly drawing)
Features:
- Weight: 4g
- Size: 35 mm (1-3/8″)

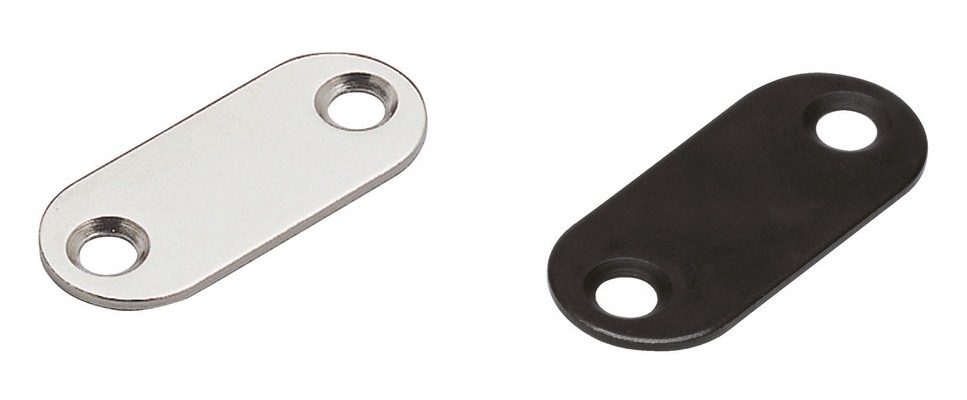

- Available in 2 surface colours: nickel-plated and black
- Easy installation, practical, stable
- Material thickness: 1.2 mm (3/64″)
- Long oval
- High corrosion resistance
- Suitable for wood, MDF and metal
- Black
- steel, robust
- High brand quality of Sugatsune / LAMP®
For more dimensions and details , see technical drawing.
The dimensions:
- Magnet Counterpart Length: 35 mm (1-3/8″)
- Width: 15 mm (19/32″)
- Mounting hole diameter ⌀4.6 mm (3/16″)
- Magnet Counterpart Thickness (Material Thickness): 3/64″ (1.2 mm)
Included in delivery:
- 8 pieces magnetic counter plate MC-YN001U-BL (140-038-025) made of robust steel, black
- This item does not include mounting screws
Manufacturer’s reference number:
- Article ID: 140-038-025
- Item number: MC-YN001U-BL
- EAN number: 4510932185585
Manufacturer: Sugatsune / LAMP® (Japan)
