Description

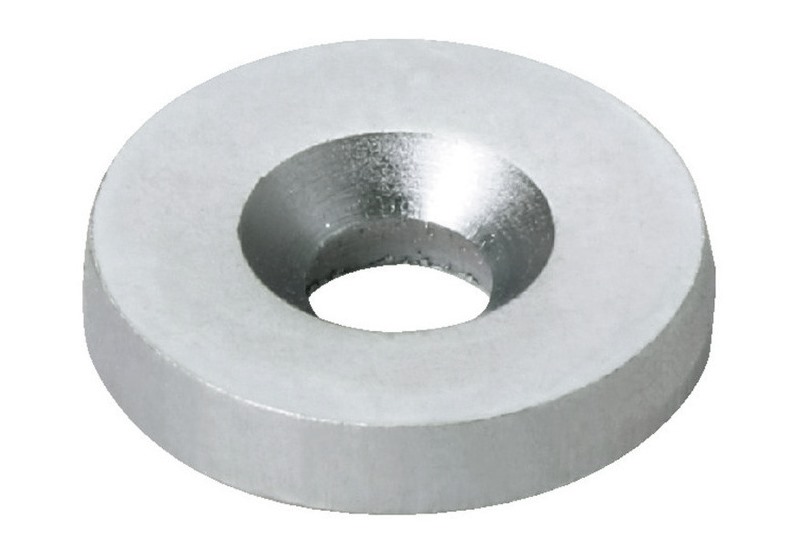

8 pieces high-quality round magnetic counter plate, made of robust steel, surface: nickel-plated, W12 (140-050-113), diameter: ⌀15 mm (19/32″)

Application:

Magnetic counterpart for magnetic latches, magnetic lock, cabinet door and much more.



The W12 magnetic counter plate (140-050-113) made of robust steel serves as a counterpart to magnetic latches and push-to-open magnetic closures.

Thanks to the nickel-plated surface, the W12 magnetic counter plate is corrosion-resistant.

The magnetic counterpart W12 (140-050-113) is suitable for all magnetic closures and push magnetic closures.

The high-quality W12 magnetic counter plates are ideal for, among other things:

• Furniture doors
• Push-to-Open Magnetic Closures
• Magnetic Flycatcher
• Magnetic closure
• Cabinet door

Material:

• The W12 magnetic counter plates are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Surface:

• nickel plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that looks modern and timeless at the same time
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• Fastening is done with countersunk screws ⌀3 mm (not included)
• The W12 magnetic counter plate is aligned on the inside of the door so that it sits exactly opposite the magnetic closure
• The counter plate has a ⌀4 mm (5/32″) diameter mounting hole with countersink ⌀8 mm (5/16″)
• A 2 mm centering hole is set and the magnetic counterpart W12 is then screwed in place with a chipboard screw, with the screw head flush in the countersink
• The function is then to be tested by closing the door and activating the push-to-open mechanism

Features:

• Weight: 3.3 g
• Diameter: ⌀15 mm (19/32″)
• Easy installation, stable
• Material thickness: 3 mm (1/8″)
• round
• High corrosion resistance
• Through-hole with countersink, bore ⌀4 mm (5/32″), countersink 4 mm (5/32″)
• Suitable for wood and MDF
• nickel plated
• steel, robust
• High brand quality of Sugatsune / LAMP®

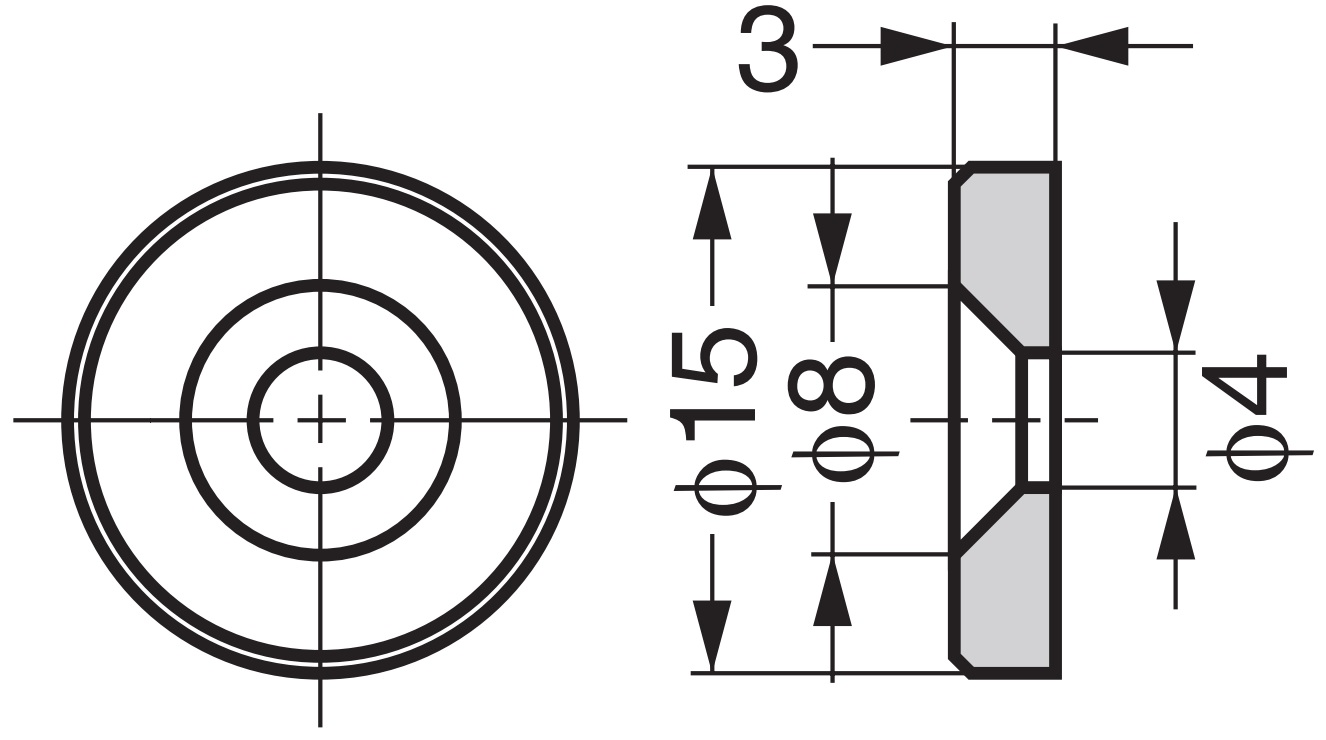

For more dimensions and details , see technical drawing.

The dimensions:

• Magnet Counterpart Diameter: ⌀15 mm (19/32″)
• Depth: 3 mm (1/8″)
• Mounting hole diameter: ⌀4 mm (5/32″)
• Outer Diameter of Mounting Hole (Countersink): ⌀8 mm (5/16″)



Included in delivery:

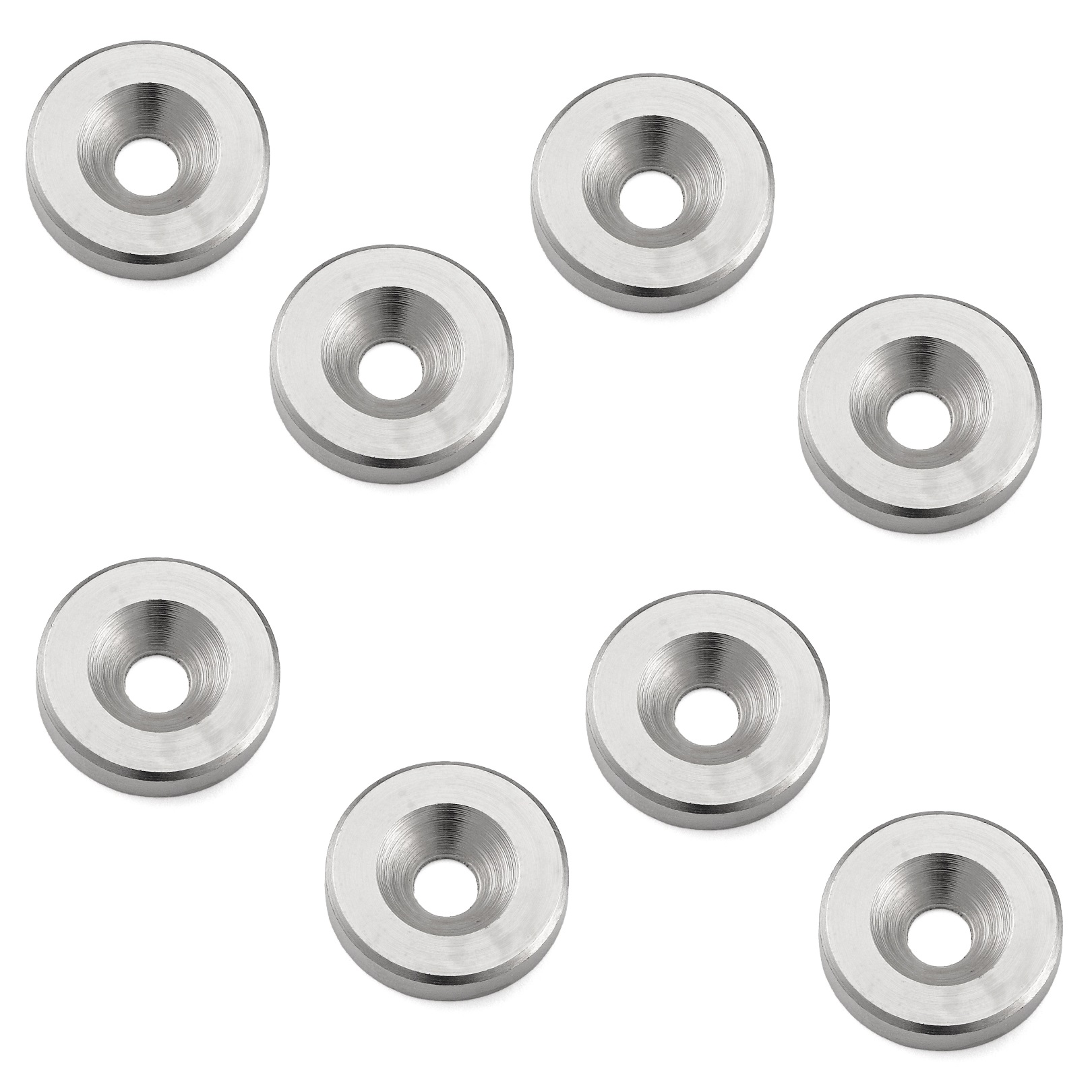

• 8 pieces magnetic counter plate W12 (140-050-113) made of robust steel, nickel-plated, 15 mm (19/32″)
• This item does not include mounting screws

Manufacturer’s reference number:

• Article ID: 140-050-113
• Item number: W12
• EAN number: 4510932018081

Manufacturer: von Sugatsune / LAMP® (Japan)
