Description

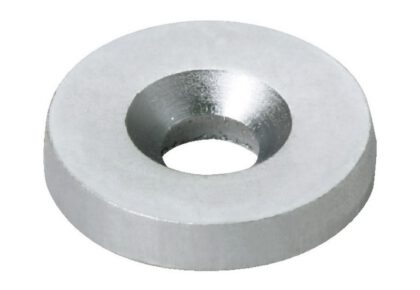

8 pieces of high-quality round magnetic counter plate, made of robust steel, surface: zinc chromate, W4 (140-050-051), diameter: ⌀12 mm (15/32″)

Application:

Magnetic counterpart for magnetic latches, magnetic lock, cabinet door and much more.



The W4 (140-050-051) magnetic counter plate made of robust steel serves as a counterpart to magnetic latches and push-to-open magnetic closures.

Thanks to the surface coated with zinc chromate, the magnetic counter plate W4 is corrosion-resistant.

The magnetic counterpart W4 (140-050-051) is suitable for all magnetic closures and push magnetic closures.

The high-quality W4 magnetic counter plates are ideal for, among other things:

• Furniture doors
• Push-to-Open Magnetic Closures
• Magnetic Flycatcher
• Magnetic closure
• Cabinet door

Material:

• The W4 magnetic counter plates are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Surface:

• Zinc chromate
• The galvanized surface protects against rust and corrosion

Assembly:

• Fastening is done with countersunk screws ⌀3 mm (not included)
• The W4 magnetic counter plate is aligned on the inside of the door so that it sits exactly opposite the magnetic lock
• The mating plate has a mounting hole with a diameter of ⌀3.4 mm (9/64″) with countersink ⌀6 mm (15/64″)
• A 2 mm centering hole is set and the magnetic counterpart W4 is then screwed in place with a chipboard screw, with the screw head flush in the countersink
• The function is then to be tested by closing the door and activating the push-to-open mechanism

Features:

• Weight: 1.7g
• Diameter: ⌀12 mm (15/32″)
• Easy installation, stable
• Material thickness: 2.5 mm (3/32″)
• round
• High corrosion resistance
• Through-hole with countersink, hole ⌀3.4 mm (9/64″), countersink 3.4 mm (9/64″)
• Suitable for wood and MDF
• Zinc chromate
• steel, robust
• High brand quality of Sugatsune / LAMP®

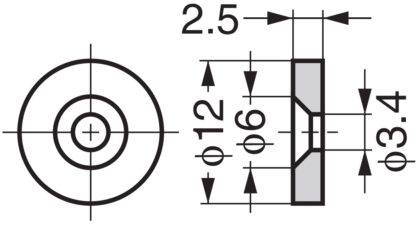

For more dimensions and details , see technical drawing.

The dimensions:

• Magnet Counterpart Diameter: ⌀12 mm (15/32″)
• Depth: 2.5 mm (3/32″)
• Mounting hole diameter: ⌀3.4 mm (9/64″)
• Outer Diameter of Mounting Hole (Countersink): ⌀6 mm (15/64″)



Included in delivery:

• 8 pieces magnetic counter plate W4 (140-050-051) made of robust steel, zinc chromate, 12 mm (15/32″)
• This item does not include mounting screws

Manufacturer’s reference number:

• Article ID: 140-050-051
• Item number: W4
• EAN number: 4510932018159

Manufacturer: von Sugatsune / LAMP® (Japan)
