Description
Eight pieces of high-quality glass shelf supports, made of solid die-cast zinc, surface: nickel-plated, 4010007, size: 3 mm (1/8″)
Application:
Glass Shelf Holder for Glass Shelf Shelves, Glass Cabinet Shelves, Bathroom Cabinets and more.
This glass shelf support 4010007 is suitable for securely and stylishly attaching glass shelves.
Suitable for glass thicknesses from 6 mm (15/64 “) to 8 mm (5/16”).
The glass bottom holder 4010007 is made of nickel-plated zamak with transparent plastic insert to protect the glass from scratches.
The integrated plastic pad fixes the glass in place in a non-slip manner and dampens vibrations, so that sensitive floors remain permanently protected.
The 3 mm (1/8″) insertion bolt makes it compatible with standardized furniture holes.
The system is particularly suitable for display cabinets, wall units or bathrooms.
The combination of metal and plastic of the glass shelf support 4010007 provides both stability and protection for sensitive glass surfaces.
The high-quality glass shelf brackets 4010007 are ideal for, among other things:
- Shelving
- kitchen cabinets
- Showcases
- Bathroom
- Home furniture
- Glass shelves
- Glass cabinet shelves
- Bathroom cabinets
Material:
- The glass shelf supports 4010007 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Surface:
- nickel plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- The glass bottom holder 4010007 is inserted into the pre-drilled mounting hole with a diameter of ⌀3 mm (1/8 “) and a depth of at least 8 mm (5/16”) in the body wall
- At least four glass shelf brackets are 4010007 necessary to attach a shelf
- The shelf is placed on top of the glass shelf holders 4010007
- The center of the mounting hole on the body wall must be positioned 4 mm below the desired position of the shelf (for more details, see assembly drawing)
Features:
- Weight: 8.1 g
- Size: 3 mm (1/8″)
- For glass thicknesses from 6 mm (15/64 “) to 8 mm (5/16”)
- Easy installation, practical, stable
- nickel plated
- Zamak (zinc die-casting)
- high brand quality of UMAXO®

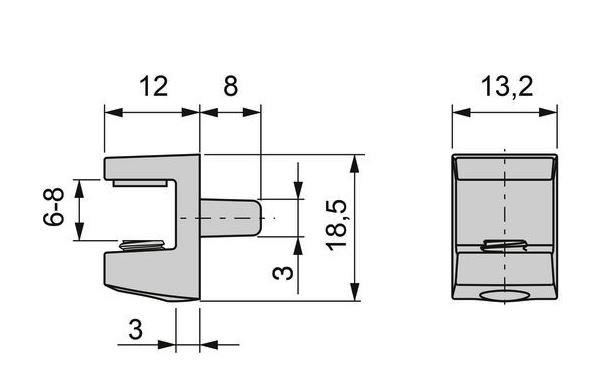

For more dimensions and details, see technical drawing.
The dimensions:
- Shelf Bracket Height: 18.5 mm (47/64″)
- Width: 13.2 mm (33/64″)
- Depth: 12mm (15/32″)
- Mounting pin length: 8 mm (5/16″)
- Mounting pin diameter: ⌀3 mm (1/8″)
Included in delivery:

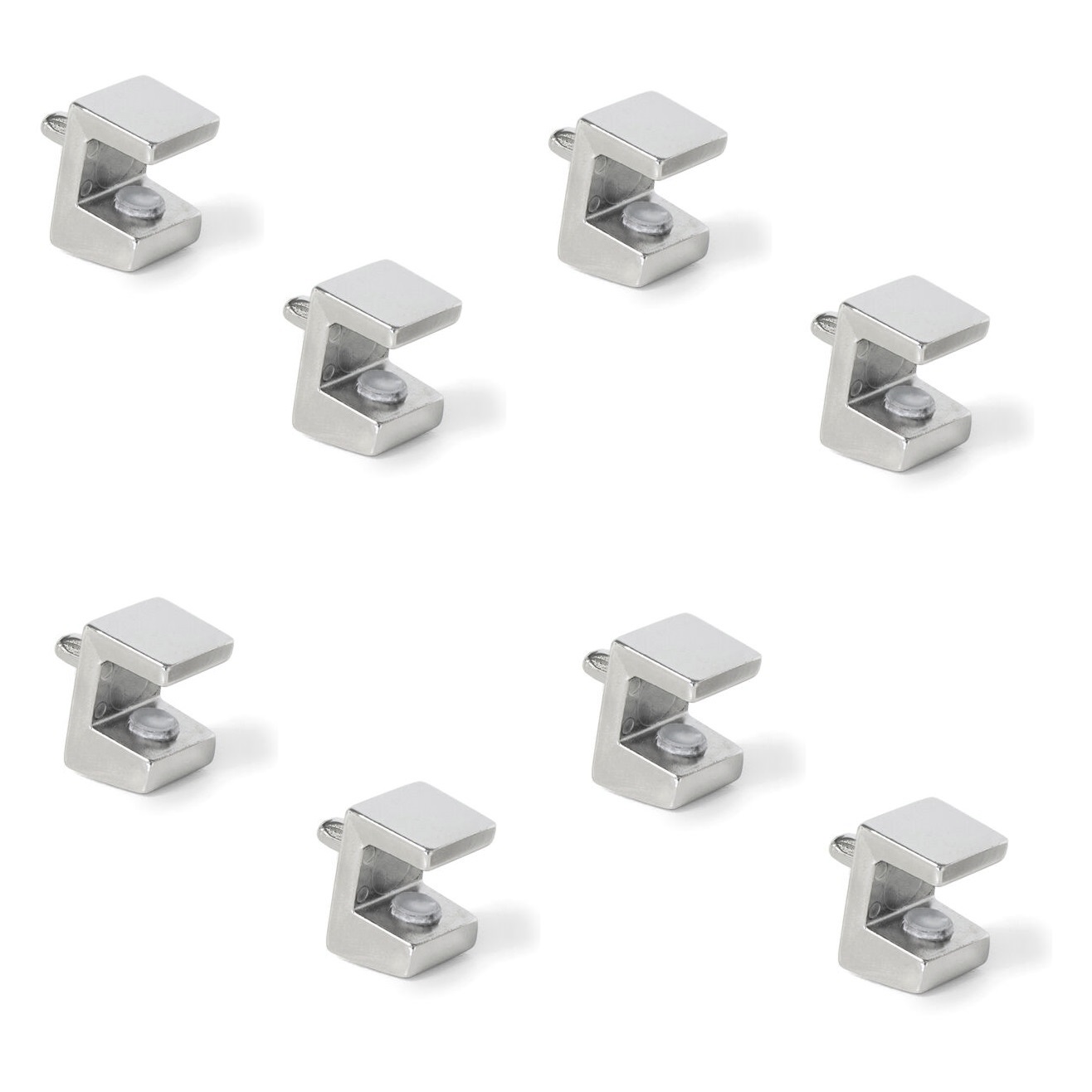

- Eight pieces of glass shelf brackets 4010007 made of solid die-cast zinc, nickel-plated
Manufacturer’s reference number:
- Article ID: 4010007
- EAN number: 8432393107370
Manufacturer: EMUCA
