Description

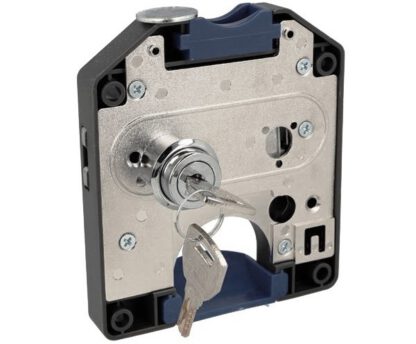

Coin deposit lock, made of metal and robust plastic, surface: dark grey, 14.60.249-C, size: 110 mm (4.4″), version: left-hand closing
Application:
Locker lock for locker, locker, school locker, locker and much more.
The coin deposit locks 14.60.249-C are deposit locks with coin slot. As an alternative to the coin, a coin chip can be used (included).
With the 14.60.249-C deposit locks, you can significantly reduce the risk of losing keys. In addition, users can immediately see whether the locker is free or already occupied.
After inserting the coin or coin chip, the door can be locked and the key removed. Unmatched coins are automatically denied by the internal security system.
The locker lock 14.60.249-C is equipped with a small coin return compartment. Once the lock is opened with the key, the coin falls into the coin return compartment and the user can remove it.
The key always remains in the lock after use and is ready for the next user.
The 14.60.249-C coin lock is the proven self-service system for secure cloakroom and valuables storage, e.g. in swimming pools, libraries, fitness centres, etc…
The locker lock 14.60.249-C can be used for lockers, lockers, school lockers, cabinets, etc.
The 14.60.249-C coin lock can be installed in most common cabinet types.
The coin deposit locks are also perfect for retrofitting existing cabinet systems.
The high-quality 14.60.249-C coin locks have a simple and robust design and are ideal for, among other things:
- Locker
- Clothes locker
- beach hotel
- Locker
- Locker
- School locker
- Locker
Material:
- The 14.60.249-C coin locks are made of metal and robust plastic
- Lock: metal
- Key: Brass
- Key handle: plastic
- Housing: plastic
- Coin return tray: plastic
- Rosette: metal
Surface:
- Dark gray
- Coin return tray: Blue
- Rosette: Chrome plated
Assembly:
- The 14.60.249-C coin locks have four mounting holes with a diameter of ⌀6.2 mm (1/4″) mm
- The distance between the mounting holes is 92 mm (3-5/8″) and 93 mm (3-21/32″)
- For the locking cylinder, a hole with a diameter of ⌀23 mm must be drilled in the furniture door
- The distance between the edge of the door and the hole for the locking cylinder is 29.7 mm (1-11/64″) (for more details, see
assembly drawing
)
Features:
- Design: left-hand closing
- Weight: 346 g
- Size: 110mm (4.4″)
- suitable for CHF 1.- coins
- Lock cylinder diameter: 22 mm (55/64″)
- left-closing (the furniture hinge is right)
- stable
- dark gray
- robust
- high brand quality of UMAXO®

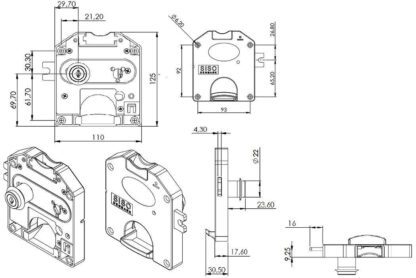

For further dimensions and details see technical drawing .
The dimensions:
- Width of the deposit lock: 110 mm (4-21/64″)
- Height: 125 mm (4-59/64″)
- Lock Cylinder Diameter: ⌀22 mm (55/64″)
Included in delivery:
- One piece of coin deposit lock 14.60.249-C made of metal and robust plastic, dark grey
- Two Pieces of Deposit Key
- A piece of coin chip
- One piece of small coin return compartment
- A piece of rosette (round cover) for the lock cylinder
- A piece of sticker with the note “1 CHF”, version: left-hand closing
Additional Information:
Manufacturer’s reference number:
- Article ID: 14.60.249-C
- EAN number: 5704866051811
Manufacturer: SISO Denmark
