Compact magnetic snap latch, incl. counter plate, surface: white, 25 mm (63/64″), version: with 2 plungers, ML-30WW. Space-saving double door opener for furniture doors, cabinet doors and much more, by Sugatsune / LAMP® (Japan)

Description

Compact, space-saving magnetic snap latch, made of metal and robust plastic (metal and plastic), surface: white, ML-30WW, size: 25 mm (63/64″), version: with 2 plungers

Application:

Space-saving double door opener for furniture doors, cabinet doors and much more.



The ML-30WW magnetic snap latch enables the convenient opening and closing of handle-free furniture doors by pressure.

The ML-30WW double door opener has a plunger extension travel of 8.5 mm (21/64″).

Thanks to its compact plastic housing, the ML-30WW magnetic slide latch can be screwed inconspicuously to the side of the carcass.



The counter plate of the ML-30WW magnetic snapper has 4 pointed pins at the corners, which mortise into the wood surface. This allows the counter plate to be securely attached with just one screw.

The 2 plungers are mounted in the same housing and allow 2 doors to be operated with just one fitting.

The high-quality magnetic snap latches 140-050-056 are ideal for, among other things:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Doors

Material:

• The magnetic snap latches 140-050-056 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• White
• White finishes convey a clean and modern aesthetic
• The colour white reflects light effectively, making rooms look brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• The fastening is done using the four screws included in the scope of delivery (wood screws 3.1 x 13 mm (2 pieces of round head wood screw and 2 pieces of countersunk wood screw))
• The magnetic snap latch ML-30WW has 2 mounting holes
• The distance between the mounting holes is 64 mm (2-33/64″)
• The latch is screwed onto the side of the body
• The minimum distance between the door and the furniture body is 4 mm (for more details, see assembly drawing)

Features:

• Version: with 2 rams
• Weight: 42 g
• Load capacity (load capacity): 11.8 N (1.3 kp)
• Size: 25 mm (63/64″)

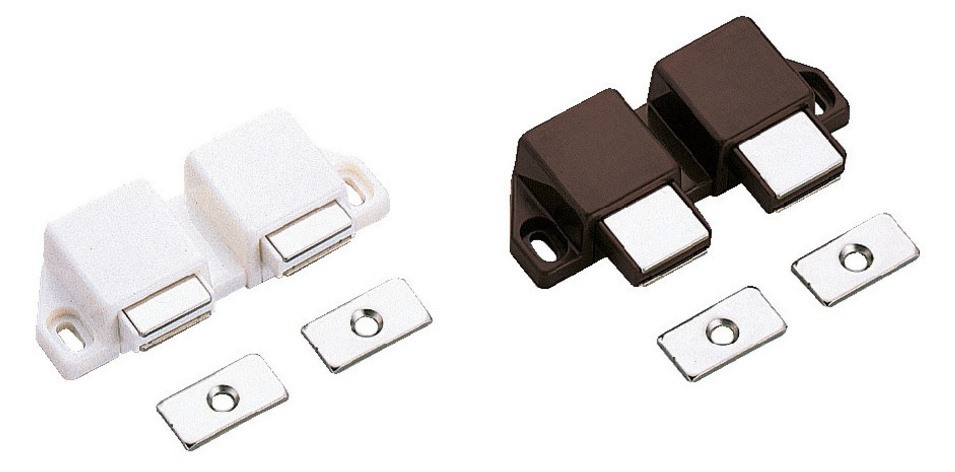

• Available in 2 colours: white and brown
• Easy installation, practical, stable
• Extension distance of plunger: 8.5 mm (21/64″)
• Minimum door gap: 4 mm
• white
• robust
• high brand quality of Sugatsune / LAMP®

For more dimensions and details, see technical drawing.

The dimensions:

• Magnetic Flycatcher Width: 75 mm (2-61/64″)
• Depth of the magnetic snap catcher: 25 mm (63/64″)
• Height: 16 mm (5/8″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

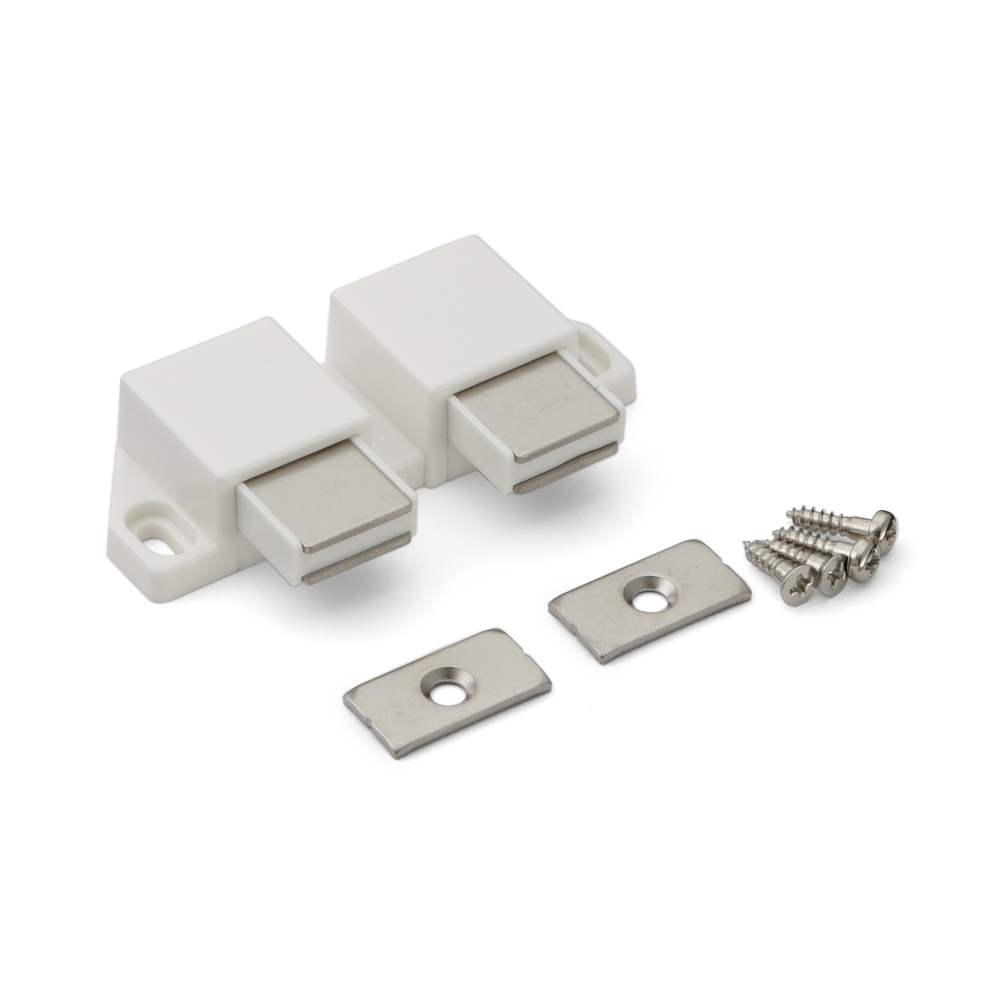

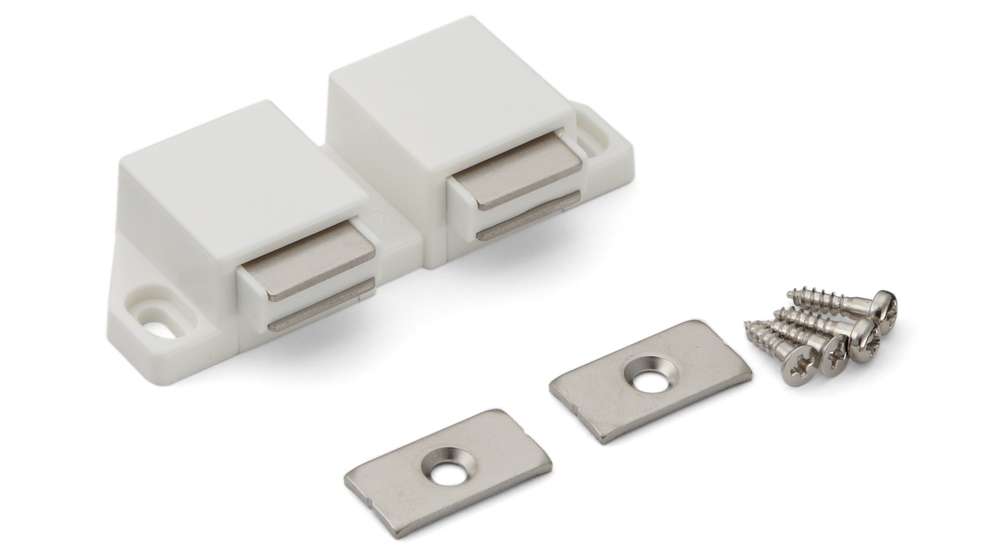

Included in delivery:

• 1 piece magnetic snap latch 140-050-056 made of metal and robust plastic, white, version: with 2 plungers
• 2 pieces counter plate made of steel, nickel-plated
• 4 pieces of wood screws 3.1 x 13 mm (2 pieces of round head wood screw and 2 pieces of countersunk wood screw)

Manufacturer’s reference number:

• Article ID: 140-050-056
• Item number: ML-30WW
• EAN number: 4510932016964

Manufacturer: Sugatsune / LAMP® (Japan)
