Description

Complete set of mirror hinge Tiomos Mirro, incl. mounting plate for glass and mirror, mounting plate for wooden wall and cover cap, made of solid die-cast zinc, surface: nickel-plated, F029140325

Application:

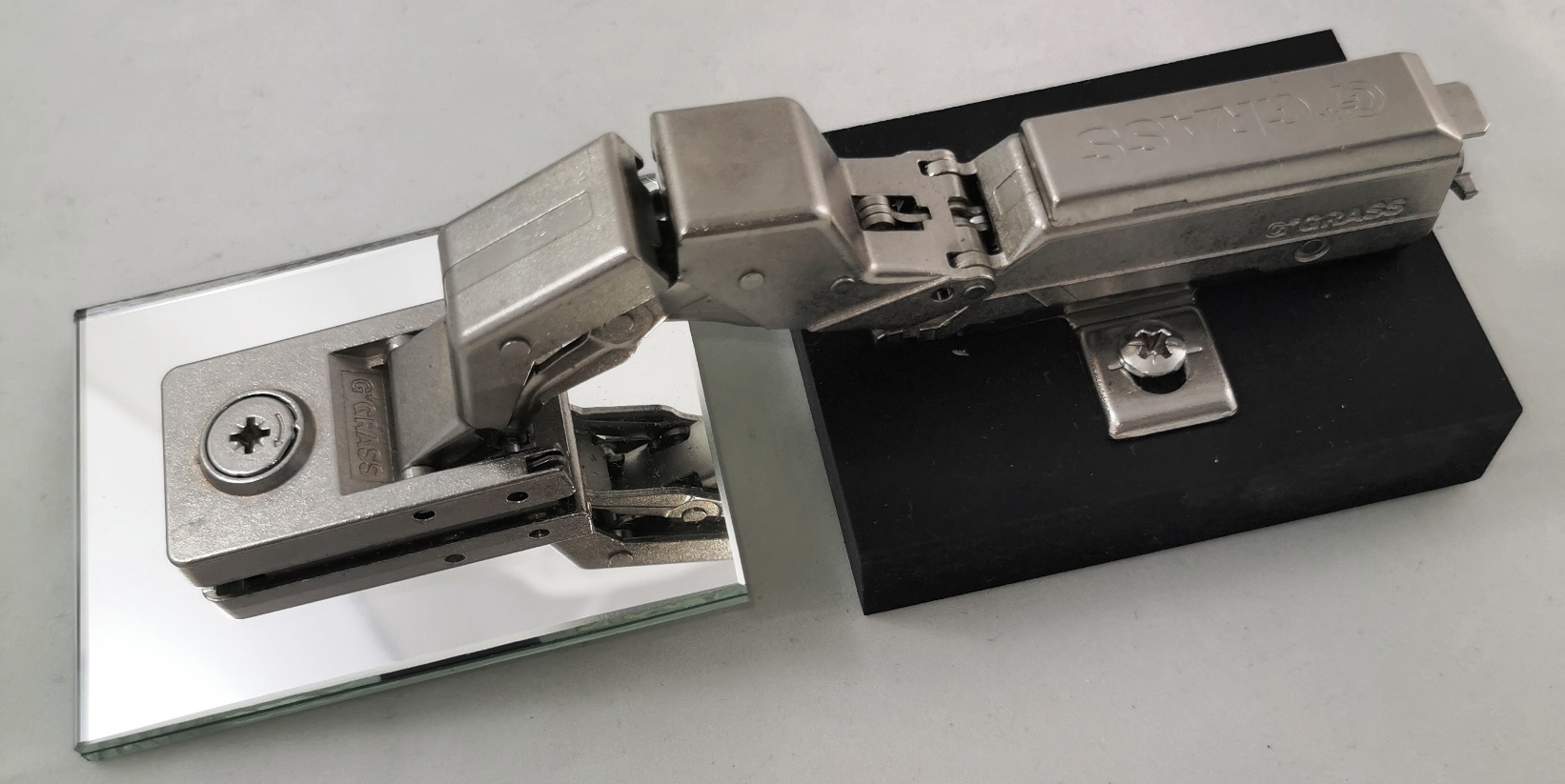

Glass hinge for glass door, mirror door and much more.



The mirror hinge F029140325 can be used as a replacement for a defective Tiomos Mirro glass hinge from the manufacturer GRASS.

Fastening without glass drilling by gluing a Zamak adapter on the door.

The hinge is connected to the adapter via an integrated eccentric.



The hinge system has 4 adjustment options: support adjustment (side adjustment): ±2 mm, depth adjustment: +3/-2 mm, height adjustment ±2 mm and tool-free adjustable damping integrated into the hinge arm.

Click-On: tool-free mounting of the door on the carcase. 125° opening angle, for door supports up to 19 mm.

With interlocking and soft-close damping – the door is closed quietly and closed by an integrated spring when closed.

The high-quality glass hinges F029140325 are ideal for, among other things:

• Replacement
• Repair
• Glass door
• Mirror door

Material:

• The glass hinges F029140325 are made of solid die-cast zinc
• Industrial and furniture fittings made of zamak offer a high-quality look and feel that are durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use

Surface:

• nickel plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that looks modern and timeless at the same time
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

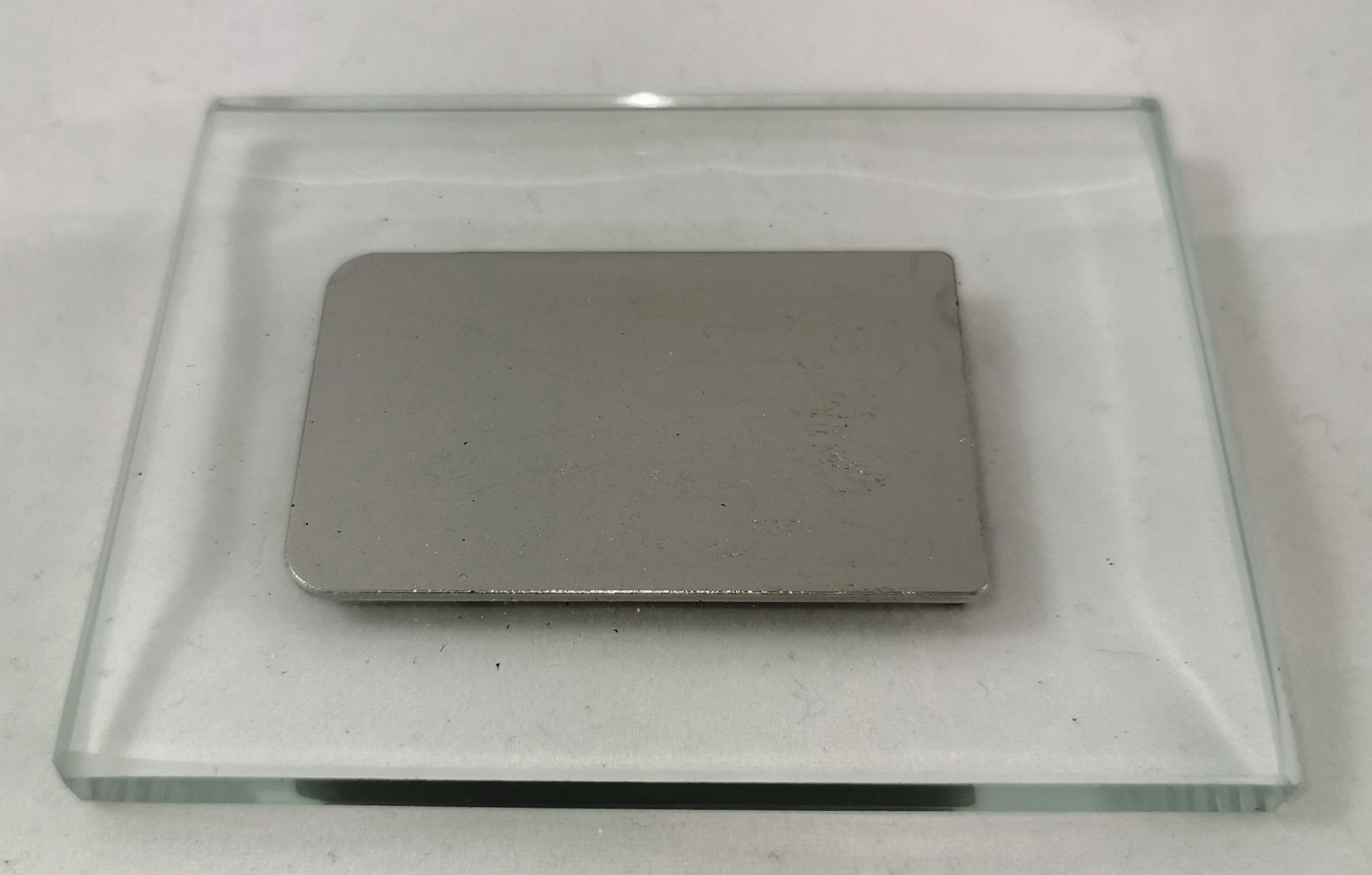

• First, the zamak adapter is glued to the glass or mirror door. Please use a suitable glue and follow the instructions of the glue manufacturer
• Next, the hinge is connected to the adapter and attached via the integrated eccentric
• Then the mounting plate is attached to the body wall

Features:

• Weight: 200g
• Easy installation, stable
• Beam angle: 125°
• With tumbler (with spring)
• Mounting of the door on the carcass: click-on, tool-free
• Door support: up to 19 mm.
• Support adjustment (lateral adjustment): ±2 mm
• Depth adjustment: +3 / -2 mm
• Height adjustment ±2 mm
• Soft-close cushioning: integrated into the hinge arm
• Soft-close damping adjustment: 3 levels, tool-free
• nickel plated
• Zamak, zinc die casting
• High brand quality from UMAXO®

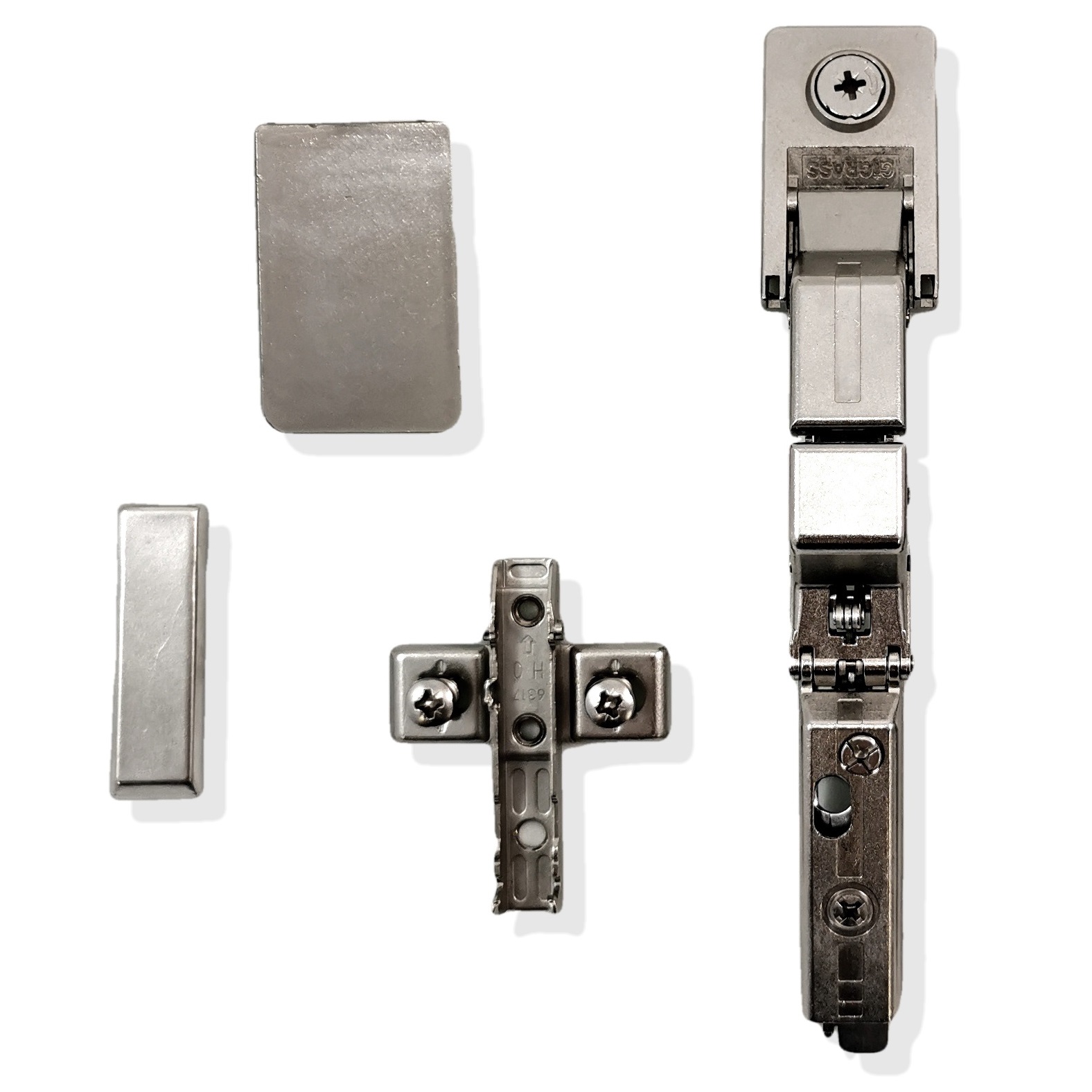

Included in delivery:

• 1 set mirror hinge F029140325 made of solid die-cast zinc, nickel-plated
• 1 piece mounting plate for glass and mirror to glue on (Zamak adapter)
• 1 piece cross-shaped mounting plate for cabinet body
• 1 piece cover cap for hinge arm
• This item does not include mounting screws

Watch product video:

Manufacturer’s reference number:

• Item ID: F029140325 (alternatively: F029140325217)
• GTIN number (EAN, UPC): 9003012994078

Manufacturer: GRASS
