Description
Counter plate for glass thickness 6 mm (15/64″), made of robust steel, surface: chrome-plated, K-110CR (140-014-045 and 140-053-472), size: 35 mm (1-3/8″)
Application:
Counterpart for glass cabinet door, magnetic flycatcher and much more.
The K-110CR steel counter plate was specially developed for furniture glass doors and serves as a counterpart to magnetic latches or push-to-open magnetic locks.
The K-110CR counterpart is suitable for all common magnetic latches and push magnetic closures.
The included chloroprene rubber mounting pad allows the counterpart to be securely mounted on cabinet glass doors with a glass thickness of 6 mm (15/64″).
The mounting pad also ensures that there are no scratches on the glass door.
The K-110CR counter plate ensures safe closing and opening without furniture handles.
The high-quality K-110CR mating plates are ideal for, among other things:
- Glass door
- Magnetic snap flap
- Push-to-open door opener
- Glass cabinet door
- Magnetic Flycatcher
Material:
- The K-110CR counter plates are made of robust steel
- Mounting pad: made of chloroprene rubber (CR)
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Chrome-plated
- Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
- They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
- In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
Assembly:

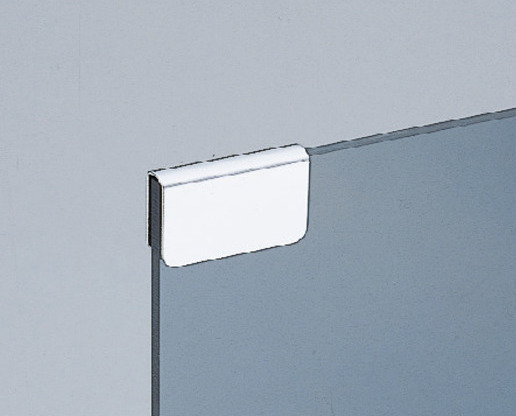

- The counter plate K-110CR is placed on the cabinet glass door
- Before putting it on, the included mounting template must be placed on the glass door so that the K-110CR counterpart can be placed on it (for more details, see assembly drawing)
Features:
- Weight: 11.1 g
- Size: 35 mm (1-3/8″)

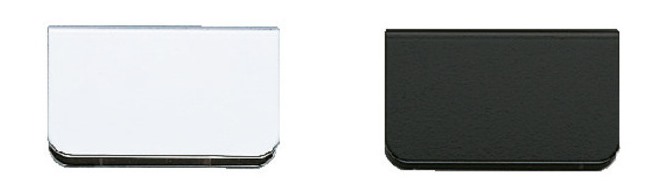

- Available in 2 surface colours: chrome-plated and black
- Easy installation, practical, stable
- For furniture glass doors with glass thickness of 6 mm (15/64″)
- Incl. Fastening underlay
- Material thickness: 0.8 mm (1/32″)
- Chrome-plated
- steel, robust
- High brand quality of Sugatsune / LAMP®

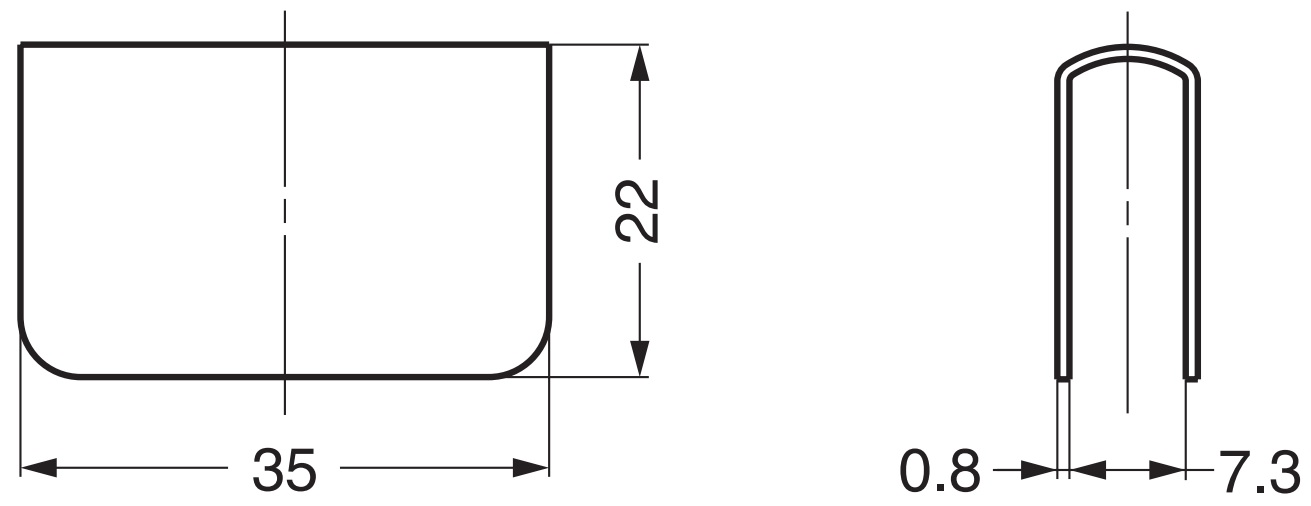

For more dimensions and details , see technical drawing.
The dimensions:
- Stop plate length: 35 mm (1-3/8″)
- Depth: 7.3 mm (9/32″)
- Width: 22 mm (55/64″)
- Material thickness: 0.8 mm (1/32″)

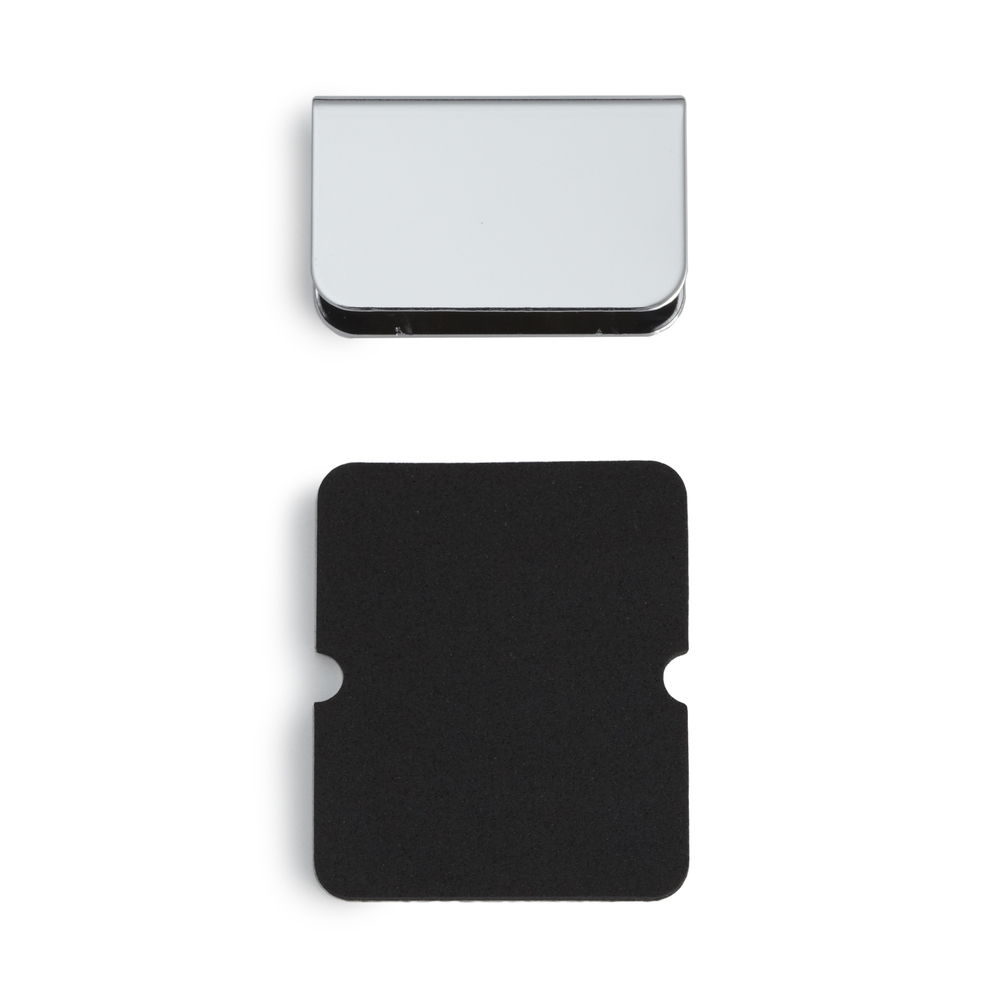

Included in delivery:
- 1 piece counter plate K-110CR (140-014-045 and 140-053-472) made of robust steel, chrome-plated
- 1 piece mounting pad
- This item does not include mounting screws
Manufacturer’s reference number:
- Article ID: 140-014-045 and 140-053-472
- Item number: K-110CR and K-110-P6
- EAN number: 4510932017008 and 4510932223737
Manufacturer: Sugatsune / LAMP® (Japan)
