Description
Counter plate for glass thickness 6 mm (15/64″), with handle function, made of robust steel, surface: chrome-plated, K-150CR and K-130-P6, size: 40 mm (1-37/64″)
Application:
Counterpart for glass cabinet door, magnetic flycatcher and much more.
The K-150CR steel counter plate was specially developed for furniture glass doors and serves as a counterpart to magnetic latches or push-to-open magnetic closures.
The counterpart has a handle function that eliminates the need for a separate door handle for the glass door.
The counterpart K-150B is suitable for all common magnetic latches and push magnetic closures.
The included chloroprene rubber mounting pad allows the counterpart to be securely mounted on cabinet glass doors with a glass thickness of 6 mm (15/64″).
The mounting pad also ensures that there are no scratches on the glass door.
The K-150CR counter plate ensures safe closing and opening without additional furniture handles.
The high-quality counter plates 140-014-049 and 140-053-473 are ideal for, among other things:
- Glass door
- Magnetic snap flap
- Push-to-open door opener
- Glass cabinet door
- Magnetic Flycatcher
Material:
- The counter plates 140-014-049 and 140-053-473 are made of robust steel
- Mounting pad: made of chloroprene rubber (CR)
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Chrome-plated
- Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
- They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
- In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
Assembly:

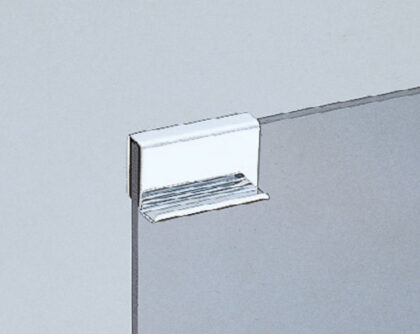

- The K-150CR counter plate is placed on the cabinet glass door
- Before putting it on, the included mounting template must be placed on the glass door so that the K-150B counterpart can be placed on it (for more details, see assembly drawing)
Features:
- Weight: 19.8 g
- Size: 40 mm (1-37/64″)

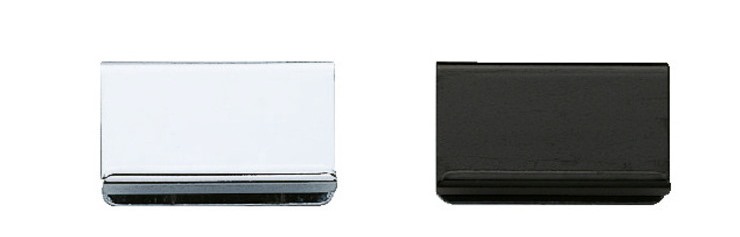

- Available in 2 surface colours: chrome-plated and black
- Available for 2 glass thicknesses: 5 mm and 6 mm
- Easy installation, practical, stable
- For furniture glass doors with glass thickness of 6 mm (15/64″)
- 2 in 1: Glass door handle and magnetic flycatcher counterpart
- Incl. Fastening underlay
- Material thickness: 1 mm (3/64″)
- chrome-plated
- steel, robust
- high brand quality of Sugatsune / LAMP®

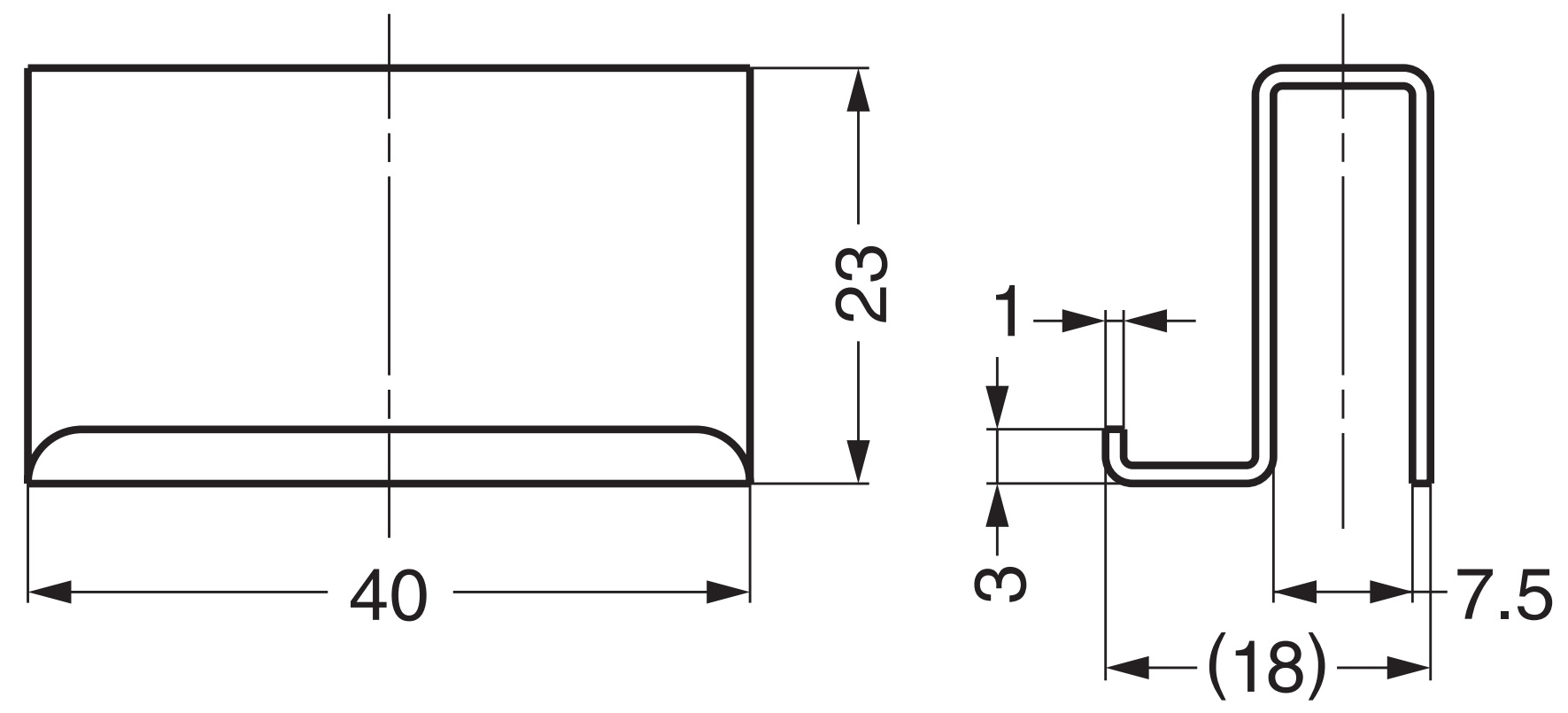

For more dimensions and details, see technical drawing.
The dimensions:
- Stop plate length: 40 mm (1-37/64″)
- Width: 23 mm (29/32″)
- Material thickness: 1 mm (3/64″)
- Depth of grip area: 10 mm (25/64″)

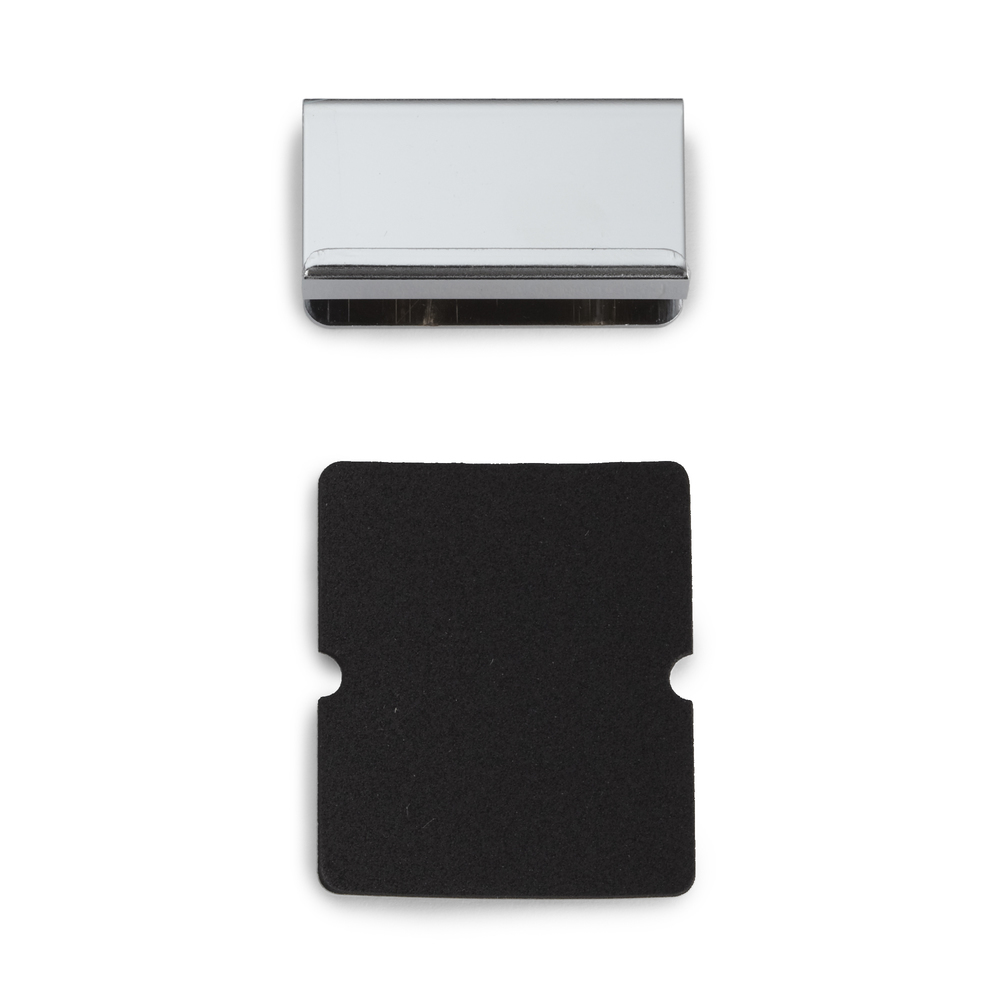

Included in delivery:
- 1 piece of counter plate 140-014-049 and 140-053-473 made of robust steel, chrome-plated
- 1 piece mounting pad
- Attention: the mounting screws are not included in the scope of delivery
Manufacturer’s reference number:
- Article ID: 140-014-048 and 140-053-473
- Item number: K-150CR and K-130-P6
- EAN number: 4510932017046 and 4510932223744
Manufacturer: Sugatsune / LAMP® (Japan)
