Description
Counter plate for glass thickness 6 mm (15/64″), made of robust steel, surface: black, K-130B (140-014-047 and 140-053-473), size: 40 mm (1-37/64″)
Application:
Counterpart for glass cabinet door, magnetic flycatcher and much more.
The K-130B steel counter plate was specially developed for furniture glass doors and serves as a counterpart to magnetic latches or push-to-open magnetic closures.
The counterpart K-130B is suitable for all common magnetic latches and push magnetic closures.
The included chloroprene rubber mounting pad allows the counterpart to be securely mounted on cabinet glass doors with a glass thickness of 6 mm (15/64″).
The mounting pad also ensures that there are no scratches on the glass door.
The K-130B counter plate ensures safe closing and opening without furniture handles.
The high-quality K-130B mating plates are ideal for, among other things:
- Glass door
- Magnetic snap flap
- Push-to-open door opener
- Glass cabinet door
- Magnetic Flycatcher
Material:
- The K-130B counter plates are made of robust steel
- Mounting pad: made of chloroprene rubber (CR)
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- The counter plate K-130B is placed on the cabinet glass door
- Before putting it on, the included mounting template must be placed on the glass door so that the K-130B counterpart can be placed on it (for more details, see assembly drawing)
Features:
- Weight: 13.7 g
- Size: 40 mm (1-37/64″)

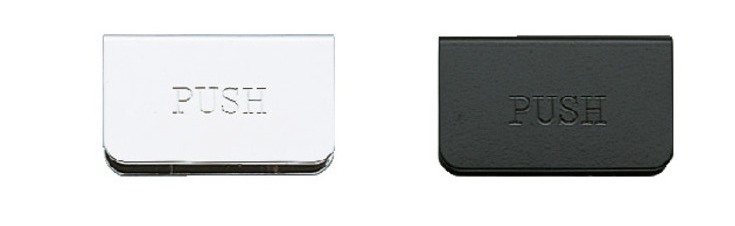

- Available in 2 surface colours: chrome-plated and black
- Available for 2 glass thicknesses: 5 mm and 6 mm
- Easy installation, practical, stable
- For furniture glass doors with glass thickness of 6 mm (15/64″)
- Incl. Fastening underlay
- Material thickness: 0.8 mm (1/32″)
- Black
- steel, robust
- High brand quality of Sugatsune / LAMP®

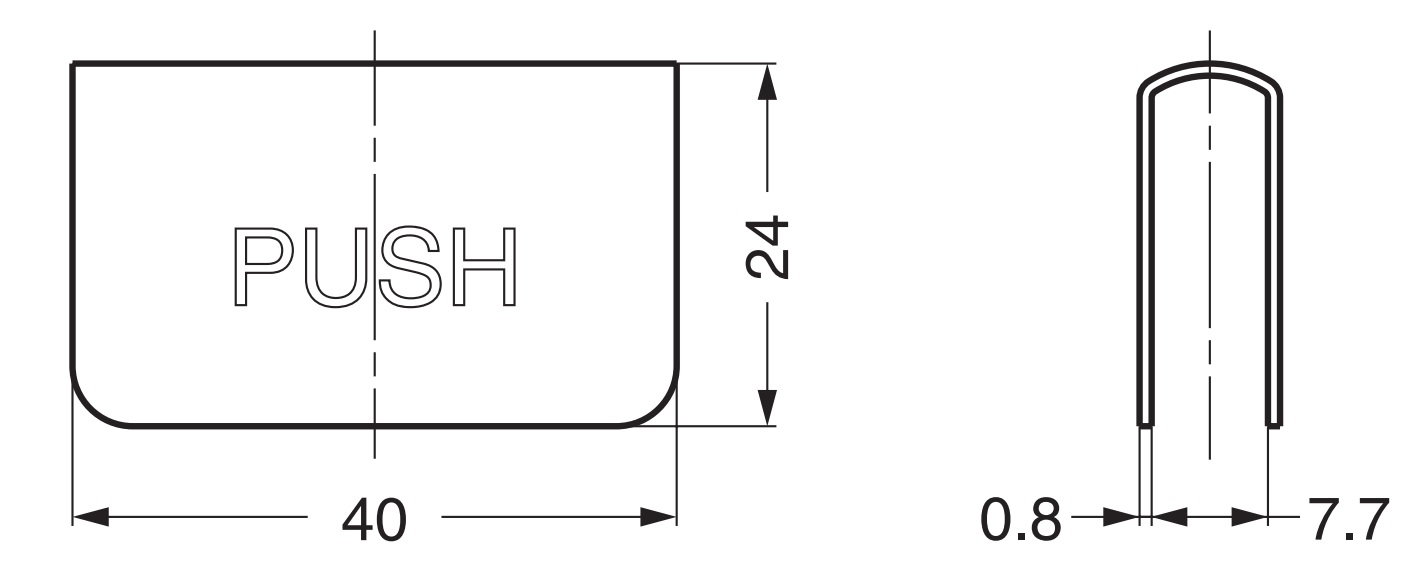

For more dimensions and details , see technical drawing.
The dimensions:
- Stop plate length: 40 mm (1-37/64″)
- Depth: 7.3 mm (9/32″)
- Width: 24 mm (15/16″)
- Material thickness: 0.8 mm (1/32″)
Included in delivery:
- 1 piece counter plate K-130B (140-014-047 and 140-053-473) made of robust steel, black
- 1 piece mounting pad
- This item does not include mounting screws
Manufacturer’s reference number:
- Article ID: 140-014-047 and 140-053-473
- Item number: K-130B and K-130-P6
- EAN number: 4510932017039 and 4510932223744
Manufacturer: Sugatsune / LAMP® (Japan)
