Description

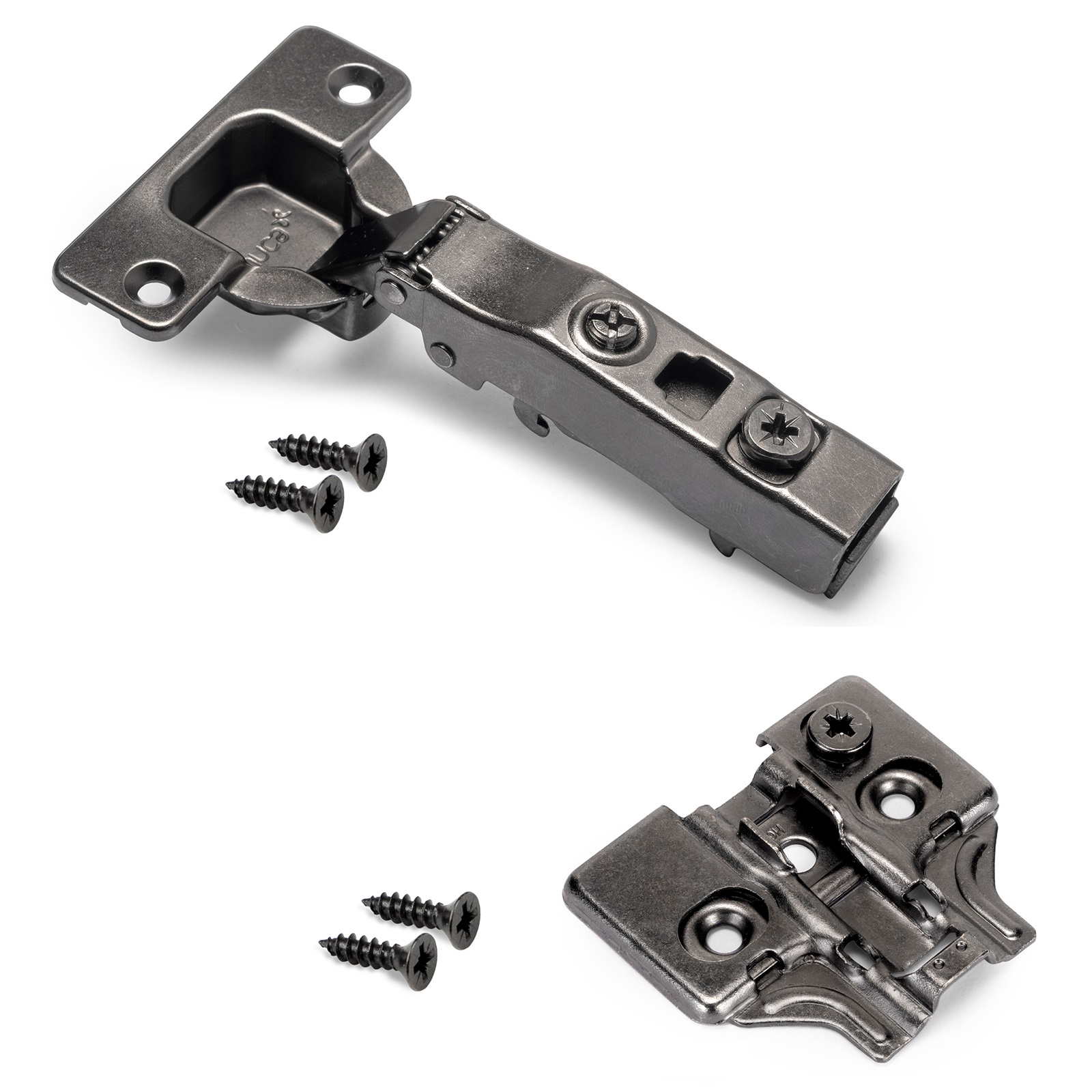

Practical pot hinge with soft-close, clip-on mounting and three-dimensional adjustability, incl. mounting plate, made of robust steel, surface: black nickel, 1040052, version: surface-mounted (available)
Application:
Pot belt for furniture, cabinets and much more.
The 1040052 pot hinge with clip-on mounting and integrated soft-close damping closes doors gently and quietly at all times thanks to integrated soft-close damping.
The soft-close technology protects fittings and furniture bodies from impacts and extends their service life.
The three-dimensional adjustability allows gaps to be precise to the millimetre without removal.
With an opening angle of 105°, the pot hinge offers 1040052 wide access to the contents of the cabinet and prevents door collisions.
The stable steel body with a nickel-coated surface ensures high corrosion resistance.
Thanks to the clip-on system, the cup hinge can 1040052 be quickly clipped onto the supplied mounting plate 1041552 and just as easily removed again.
Resting means that the door rests on the carcass, i.e. covers the carcass frame.
The high-quality pot hinges 1040052 are ideal for, among other things:
- Living room cabinets
- Closets
- Office furniture
- Kitchen cabinet doors
- Bathroom cabinet doors
- Furniture
- cabinets
Material:
- The cup hinges 1040052 are made of sturdy steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Black nickel
- The surface colour black nickel gives a high-quality look and an elegant and modern look
- It offers high resistance to scratches and wear and tear, which increases its durability in everyday life
- In addition, black nickel is easy to clean and retains its noble shine over a long period of time
Assembly:
- Fastening is done with countersunk wood screw ⌀3.5 x 15 mm screws (not included)
- First, a pot hole with a diameter of 35 mm (1-3/8″) must be made in the door
- The distance between the edge of the door and the edge of the hole is 3 to 7 mm
- The pot hinge 1040052 is screwed with countersunk wood screw ⌀3.5 x 15 mm
- The distance between the fixing screws is 1.88976377952756
- The distance between the mounting screws and the center of the pot hole is: 6 mm (15/64″)
- On the carcase side, the mounting plate must be attached 1041552
- The mounting holes of the mounting plate are spaced 32 mm (1-17/64″) apart
- The distance between the mounting holes of the mounting plate and the edge of the body wall is 1.45669291338583

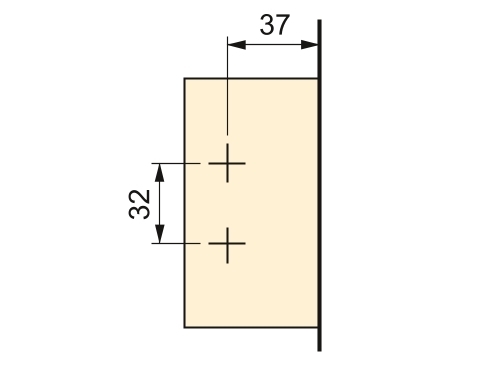

- The pot hinge is then clicked 1040052 via clip-on onto the mounting plate included in the scope of delivery 1041552 (for further details, see assembly drawing)
Features:
- Version: surface-mounted (present)
- Weight: 119.75 g
- Size: 35 mm (1-3/8″)
- Pot depth: 11.7 mm
- Easy installation, practical, stable
- Integrated soft-close damper
- Clip-on attachment to mounting plate
- 3D adjustment: lateral, height and depth adjustable
- For ⌀35 mm (1-3/8″) pot bore
- Suitable for door thicknesses from 14 mm (35/64 “) to 24 mm (15/16”)
- Beam angle: 105°
- Spring-assisted opening and closing
- Black nickel
- Steel (robust)
- high brand quality of UMAXO®

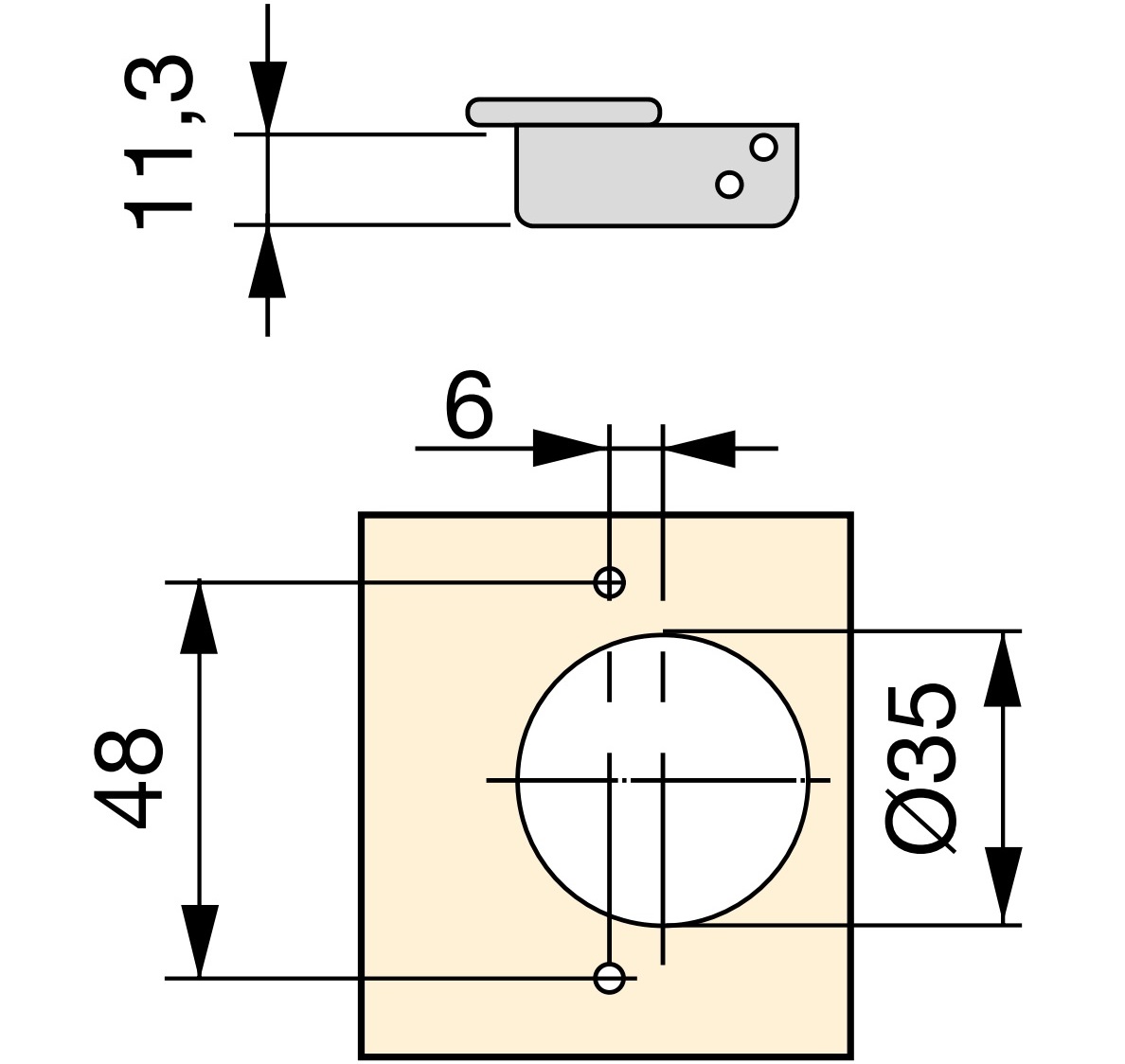

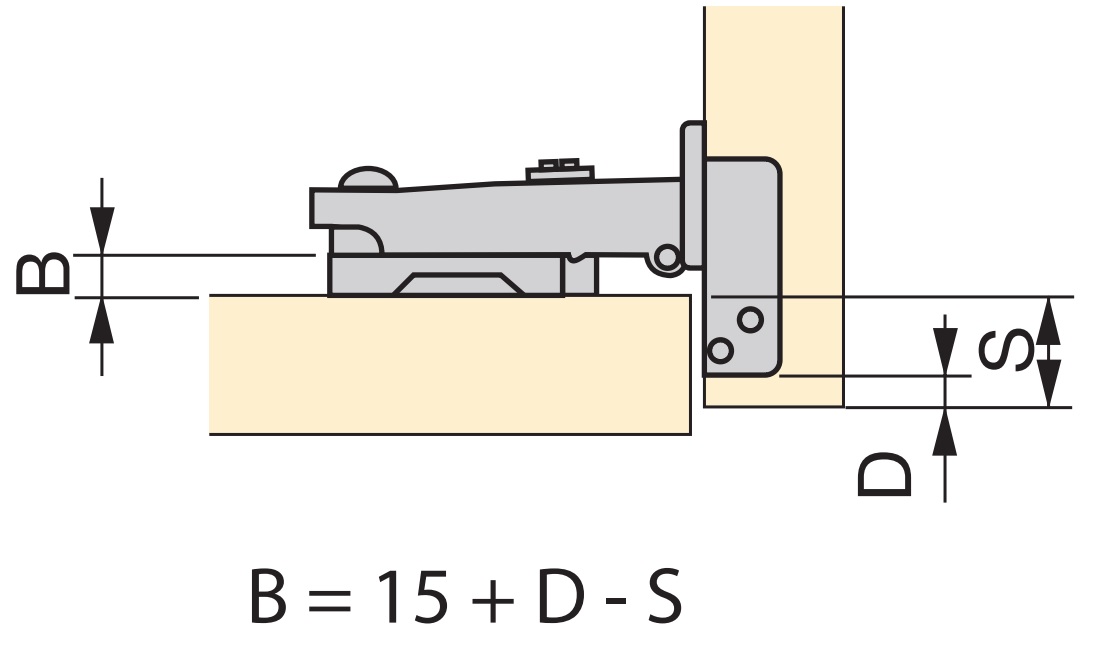

For more dimensions and details, see technical drawing.
The dimensions:
- Pot Diameter of Pot Belt 1040052: ⌀35 mm (1-3/8″)
- Drilling distance: 48 mm (1-57/64 “) / 6 mm (15/64”)
- Pot depth: 11.7 mm
Included in delivery:
- 1 piece cup hinge 1040052 made of robust steel, black nickel, version: resting (present)
- 1 piece mounting plate 1041552
Watch product video:
Additional Information:
Manufacturer’s reference number:
- Item ID: 1040052 and 1041552
- EAN number: 8432393139678 and 8432393139708
Manufacturer: EMUCA
