Cup hinge, soft-close, clip-on mounting, 3D adjustable, incl. mounting plate, surface: nickel-plated, version: surface-mounted, 1040007. pot hinge for furniture, cabinets and much more, by EMUCA

Description

Practical pot hinge with soft-close, clip-on mounting and three-dimensional adjustability, incl. mounting plate, made of steel and robust plastic (steel and plastic), surface: nickel-plated, 1040007, version: surface-mounted (available)

Application:

Pot belt for furniture, cabinets and much more.

The 1040007 pot hinge with clip-on mounting and integrated soft-close damping closes doors gently and quietly at all times.



The soft-close technology protects fittings and furniture bodies from impacts and extends their service life.

The three-dimensional adjustability allows gaps to be precise to the millimetre without removal.

With an opening angle of 105°, the pot hinge offers 1040007 wide access to the contents of the cabinet and prevents door collisions.

The stable steel body with a nickel-coated surface ensures high corrosion resistance.

Thanks to the clip-on system, the cup hinge can 1040007 be quickly clipped onto the supplied mounting plate 1041507 and just as easily removed again.

Resting means that the door rests on the carcass, i.e. covers the carcass frame.

The high-quality pot hinges 1040007 are ideal for, among other things:

• Living room cabinets
• Closets
• Office furniture
• Kitchen cabinet doors
• Bathroom cabinet doors
• Furniture
• cabinets

Material:

• The cup hinges 1040007 are made of steel

Surface:

• nickel plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that looks modern and timeless at the same time
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• Fastening is done with countersunk wood screw ⌀3.5 x 15 mm screws (not included)
• First, a pot hole with a diameter of 35 mm (1-3/8″) must be made in the door
• The distance between the edge of the door and the edge of the hole is 3 to 7 mm
• The pot hinge 1040007 is screwed with countersunk wood screw ⌀3.5 x 15 mm
• The distance between the mounting screws is 48 mm (1-57/64″)
• The distance between the mounting screws and the center of the pot hole is: 6 mm (15/64″)
• On the carcass side, the mounting plate must be attached 1041507

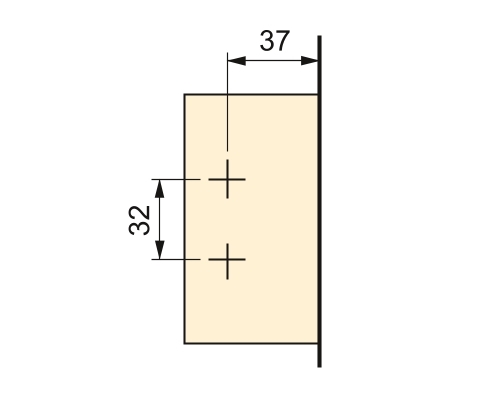

• The mounting holes of the mounting plate are spaced 32 mm (1-17/64″) apart
• The distance between the mounting plate mounting holes and the edge of the body wall is 37 mm (1-29/64″)
• The pot hinge is then clicked 1040007 via clip-on onto the mounting plate 1041507 included in the scope of delivery (for further details, see assembly drawing)



Features:

• Version: surface-mounted (present)
• Weight: 119.75 g
• Size: 35 mm (1-3/8″)
• Pot depth: 11.7 mm
• Easy installation, practical, stable
• Integrated soft-close damper
• Clip-on attachment to mounting plate
• 3D adjustment: lateral, height and depth adjustable
• For ⌀35 mm (1-3/8″) pot bore
• Suitable for door thicknesses from 14 mm (35/64 “) to 24 mm (15/16”)
• Beam angle: 105°
• Spring-assisted opening and closing
• nickel plated
• robust
• high brand quality of UMAXO®

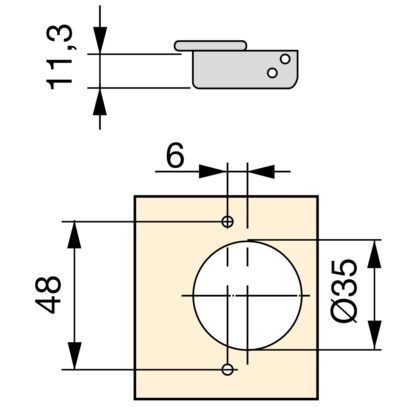

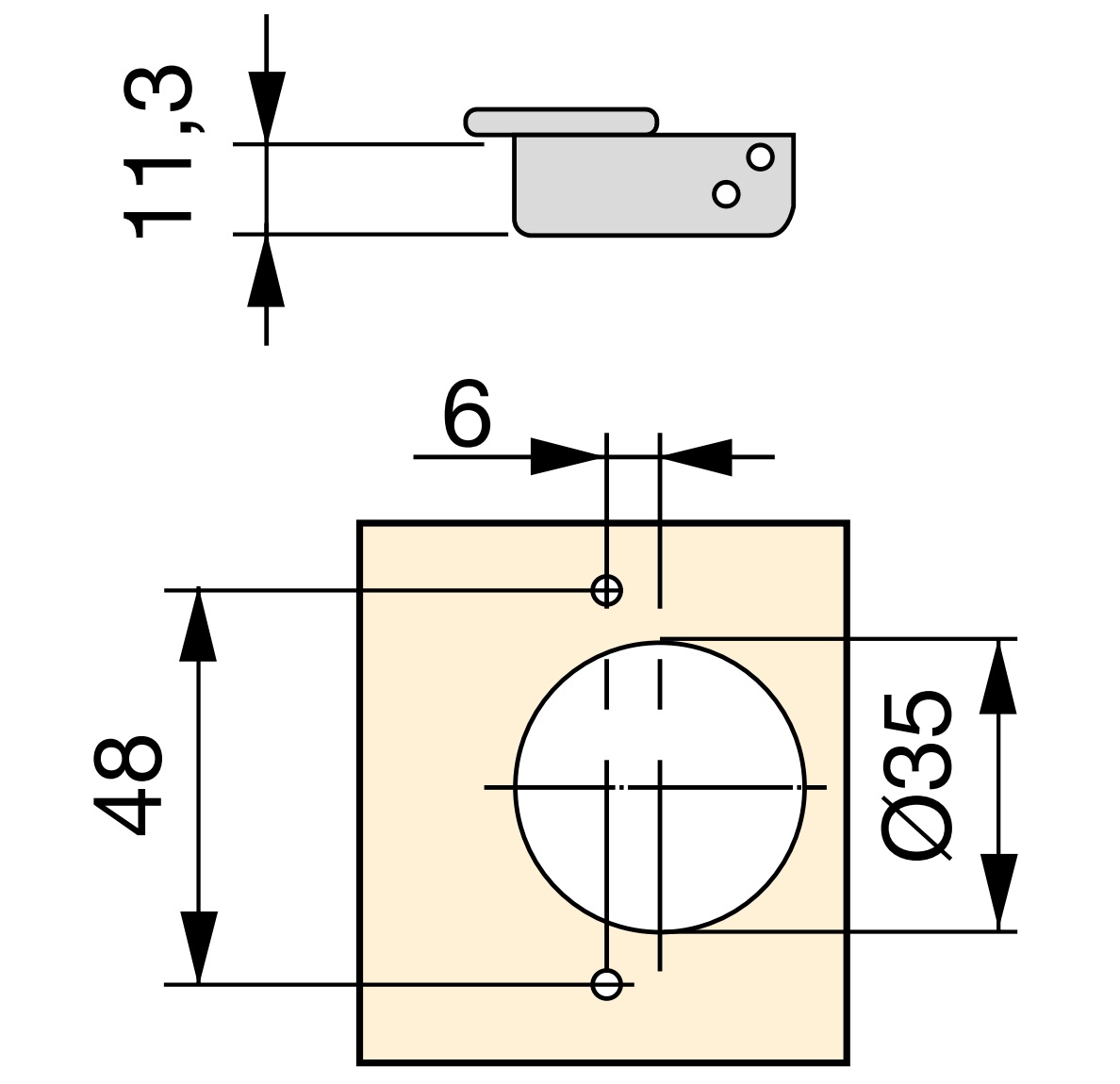

For more dimensions and details, see technical drawing.

The dimensions:

• Pot Diameter of Pot Belt 1040007: ⌀35 mm (1-3/8″)
• Drilling distance: 48 mm (1-57/64 “) / 6 mm (15/64”)
• Pot depth: 11.7 mm



Included in delivery:

• 1 piece cup hinge 1040007 made of steel, nickel-plated, version: resting (present)
• 1 piece mounting plate 1041507

Additional Information:

• Download assembly instructions

Manufacturer’s reference number:

• Item ID: 1040007 and 1041507
• EAN number: 8432393100821 and 8432393100975

Manufacturer: EMUCA
