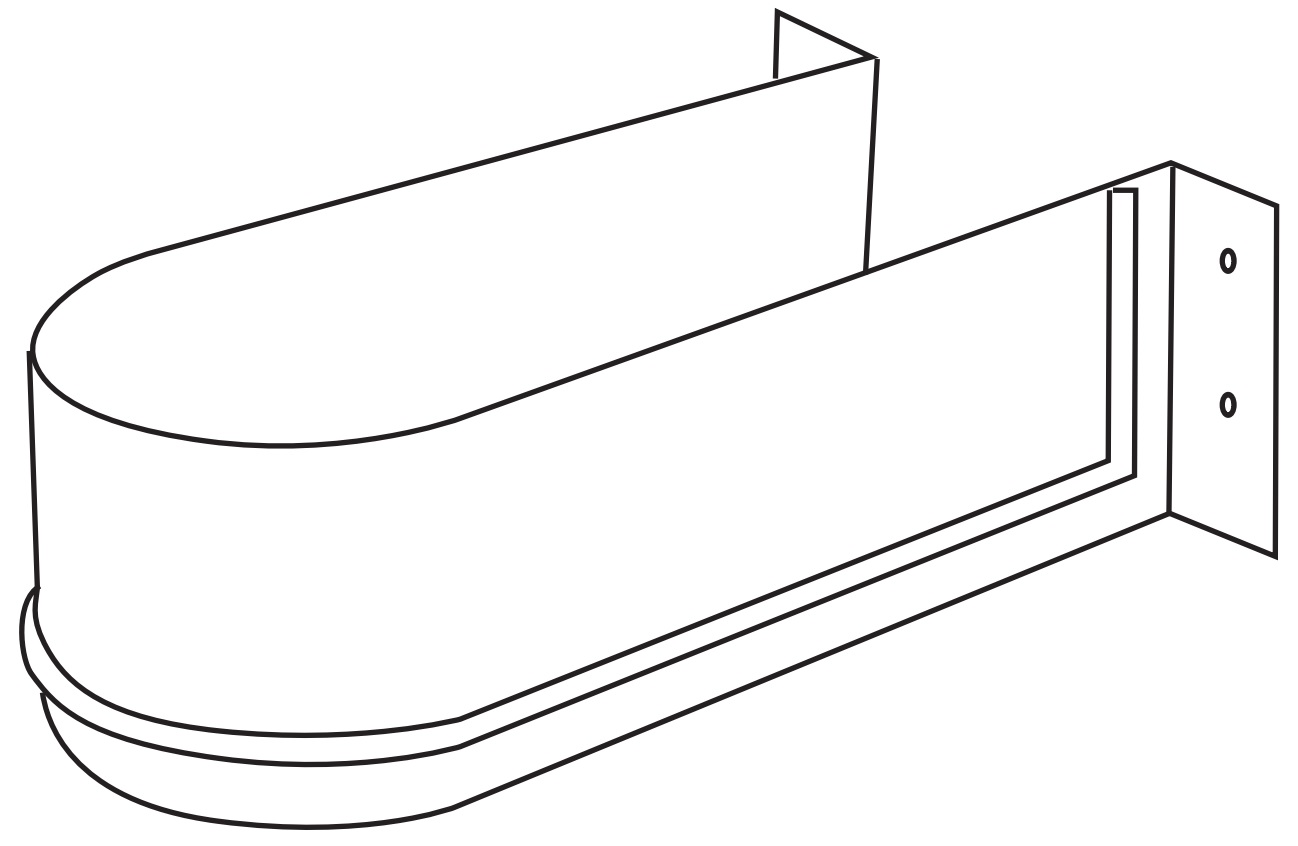

Curved siphon cut-out, made of plastic, surface: grey, 3044421. siphon protection for vanity unit, kitchen cabinet, bathroom cabinet, siphon, drain and much more, by EMUCA

Description

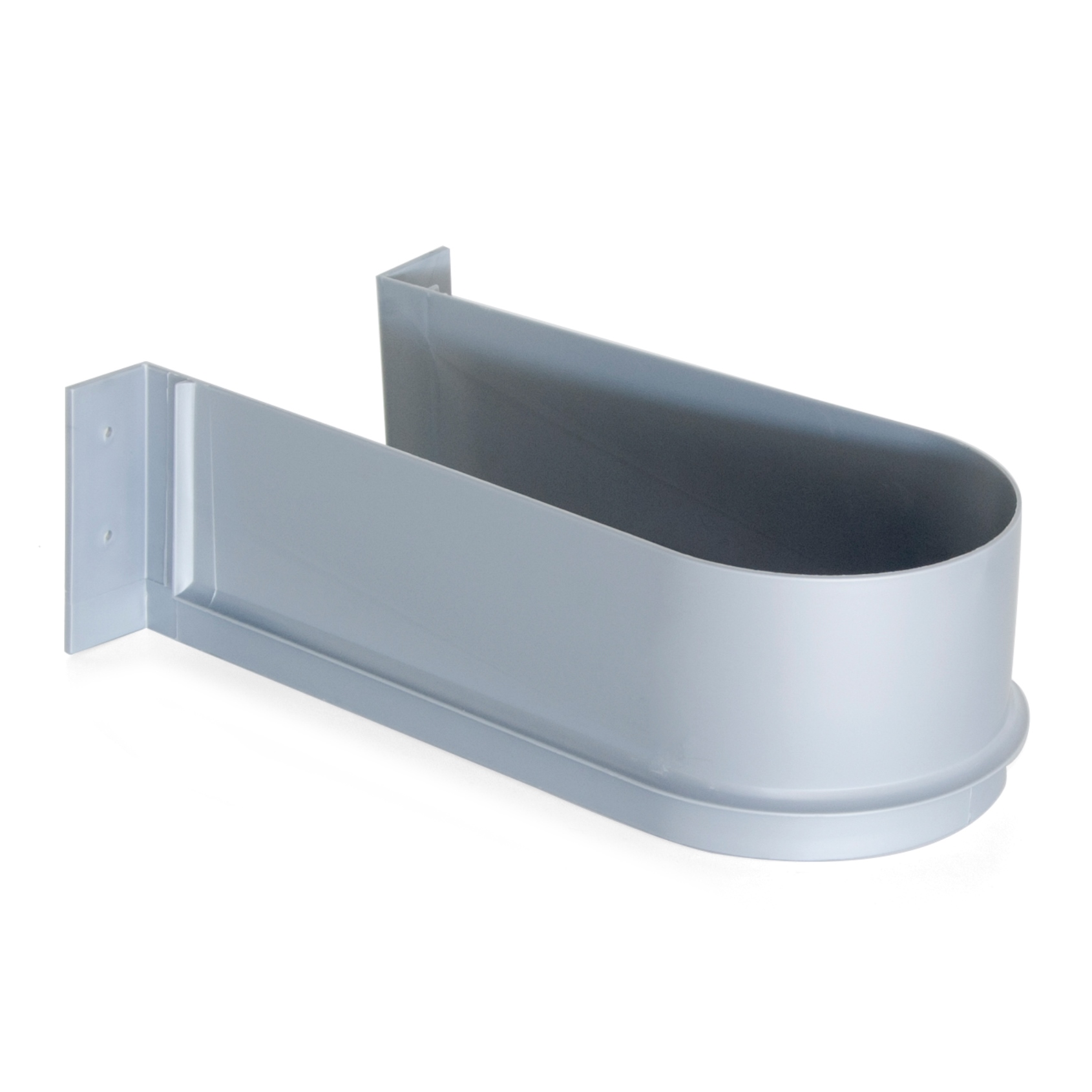

High-quality siphon cut-out, made of robust plastic (plastic), surface: grey, 3044421

Application:

Siphon protection for vanity cabinet, kitchen cabinet, bathroom cabinet, siphon, drain and much more.



The curved plastic siphon cut-out 3044421 transforms drawers under washbasins or sinks into fully usable storage space.

The round shape of the siphon diaphragm 3044421 encloses the siphon so that no valuable depth is lost.

Robust, easy-to-clean material protects the furniture from moisture and chemicals.

The precisely fitting shape of the siphon cover 3044421 fits flush into drawers and maintains a tidy look.

Thanks to screw mounting, the siphon cut-out can 3044421 be quickly retrofitted and just as easy to replace if necessary.

The high-quality siphon covers 3044421 are ideal for, among other things:

• Drawer
• Cabinet
• Storage space
• Furniture
• Interior pull-out
• Vanity unit
• Kitchen cabinet
• Bathroom cabinet
• Siphon
• Expiration

Material:

• The siphon covers 3044421 are made of robust plastic (plastic)
• Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability
• It is corrosion-resistant, making it particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
• In addition, the flexible formability of plastic enables a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines

Surface:

• Gray
• Available in three surface colours: white, grey and anthracite grey
• Grey offers a versatile and elegant base that combines well with other colours and materials, creating a calm, timeless atmosphere in both modern and classic spaces
• In addition, grey has the ability to highlight accents in a room without being dominant itself, making it ideal for creating harmonious and balanced interiors

Assembly:

• Fastening is done with countersunk chipboard screws 3.5 x 16 mm (not included)
• To attach the siphon panel 3044421, a cut-out with a depth of 196 mm (7-23/32″) and a width of 124 mm (4-7/8″) must be made in the bottom of the drawer
• At the end of the cut-out, a hole with a diameter of ⌀62 mm (2-7/16″) must be made
• The center of the hole should be on the inner edge of the cutout
• The siphon protector 3044421 is screwed to the back of the drawer from the inside
• The siphon cutout 3044421 has four mounting holes with a diameter of 4 mm (5/32″) (for more details, see assembly drawing)



Features:

• Weight: 129 g
• Size: 124 mm (4-7/8″)
• Easy installation, practical, stable
• Made of impact-resistant plastic
• Curved shape flows around standard siphons
• Optimizes drawer depth under the basin
• Light weight, no additional load on the pull-out
• Easy cleaning with mild cleaners
• Assembly in a few minutes without special tools
• grey
• robust
• high brand quality of UMAXO®

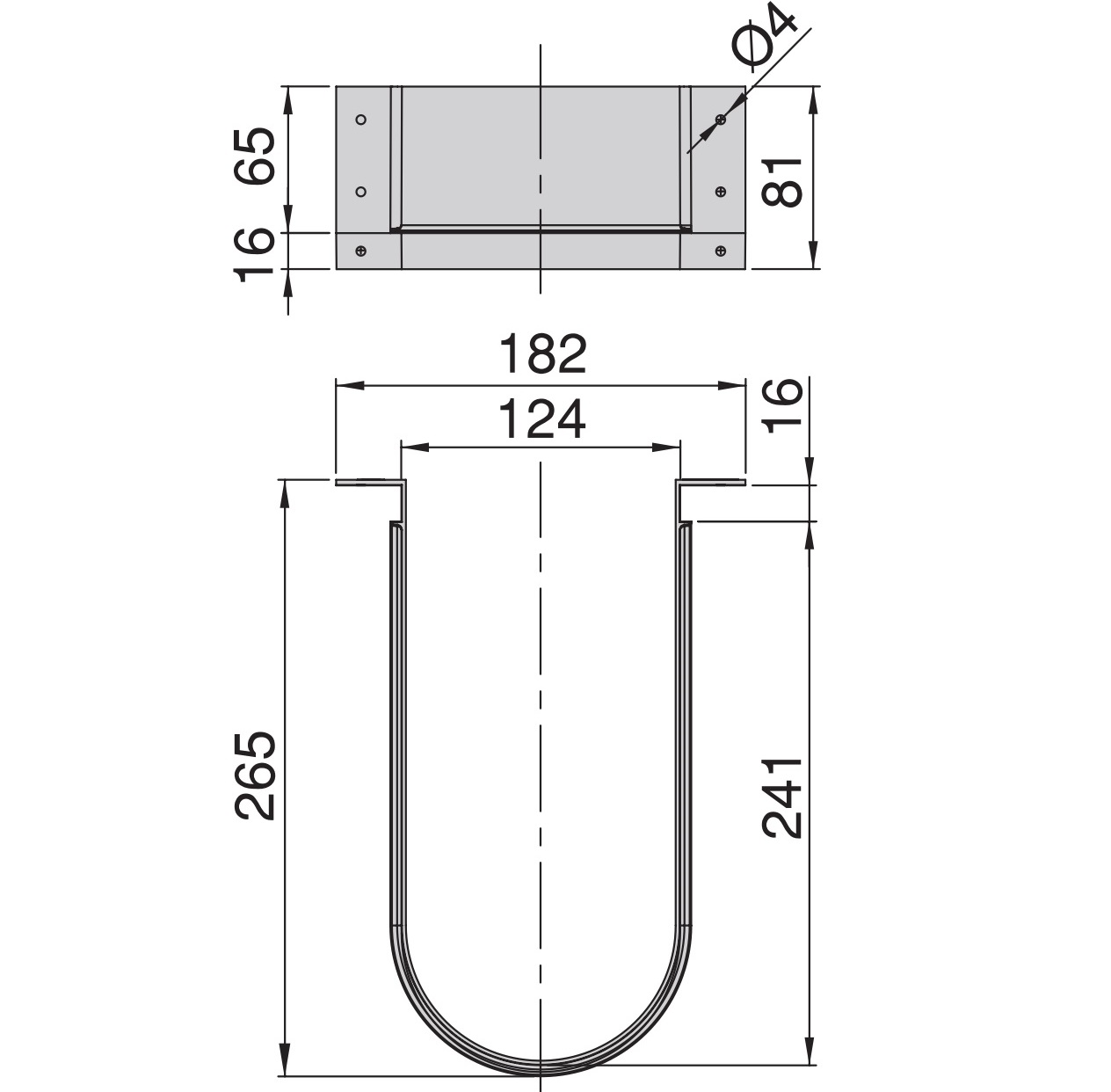

For more dimensions and details, see technical drawing.

The dimensions:

• Siphon diaphragm depth 3044421: 124 mm (4-7/8″)
• Width: 124 mm (4-7/8″)
• Height of the frame: 81 mm (3-3/16″)
• Inner height of the frame: 65 mm (2-9/16″)



Included in delivery:

• 1 piece siphon cut-out 3044421 made of robust plastic, grey

Additional Information:

• Download assembly instructions

Manufacturer’s reference number:

• Article ID: 3044421 (alternatively: 3044321)
• EAN number: 8432393259390

Manufacturer: EMUCA
