Description
Practical drawer set, with extra-thin frames, frame height 88 mm (3-15/32″), made of robust steel, surface: white, 3275412, drawer depth: 500 mm (19-11/16″), design: partial extension with soft-close
Application:

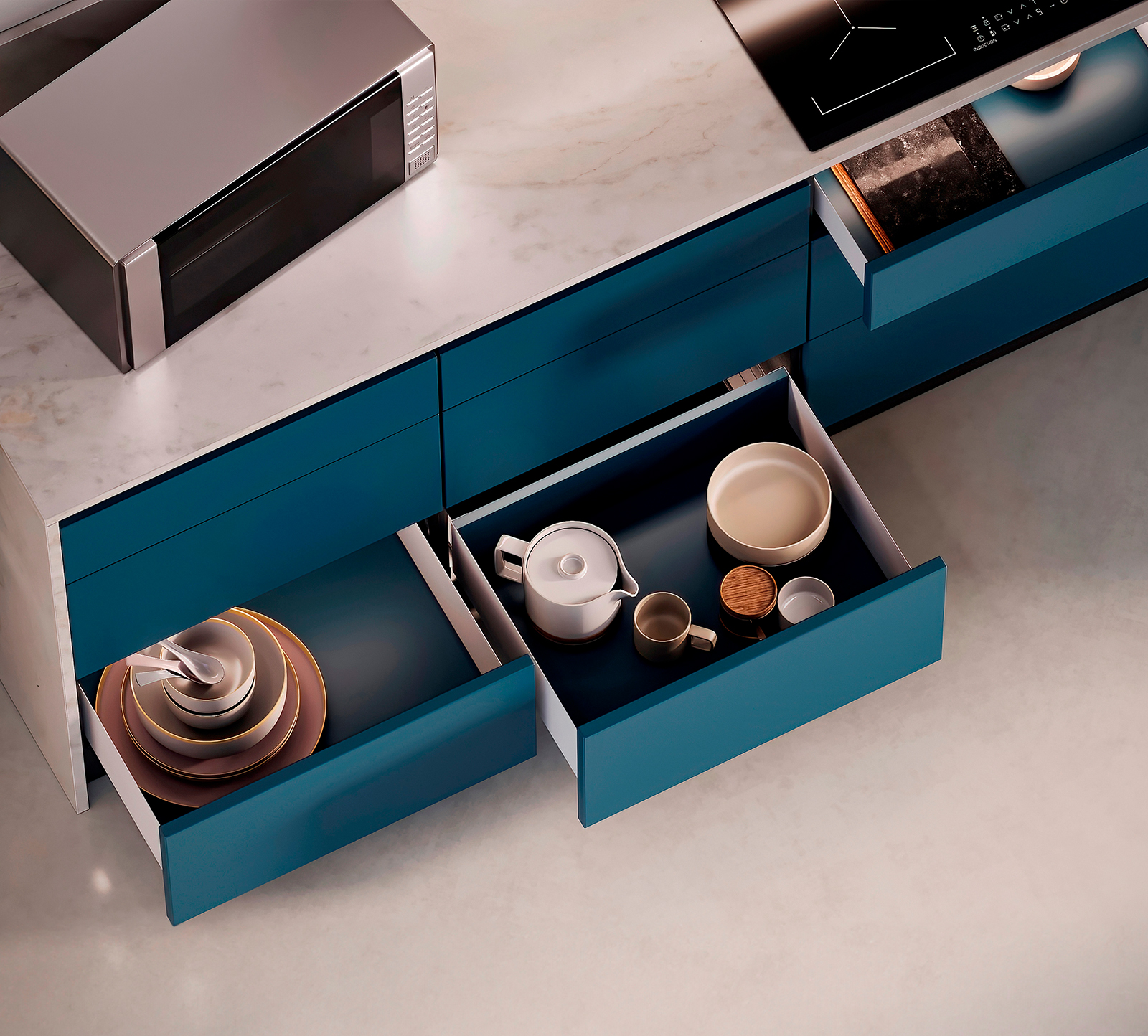

Drawer set for kitchen furniture and much more.
The high-quality drawers 3275412 are perfect for most pieces of furniture in the kitchen and living area, as well as for use in bathroom furniture and office furniture.
The sides have a height of 88 mm (3-15/32″), are extra thin and thus offer more interior space and allow for a clean, straightforward look.
The front can be easily adjusted on the frame (height adjustment: ±2 mm, side adjustment: ±1.5 mm), the rails themselves also allow a vertical adjustment of +5 mm (11/64″).
For everyday use, this means: smooth running, easy installation and reliable function with compact installation dimensions.
The 3275412 drawer set can be installed in a cabinet with a minimum height of 113 mm (4-29/64″).
The load capacity of the drawer 3275412 is 25 kg (56 lbs).
The guide rails offer partial extension, self-closing and soft close for comfortable and quiet closing.
The high-quality drawers 3275412 are ideal for, among other things:
- Bathroom
- Office furniture
- Home furniture
- Sideboards
- Chests of drawers
- Pharmacy extracts small
- Workshop cabinets
- Storage cabinets
- Nightstands
- Wardrobe Chests

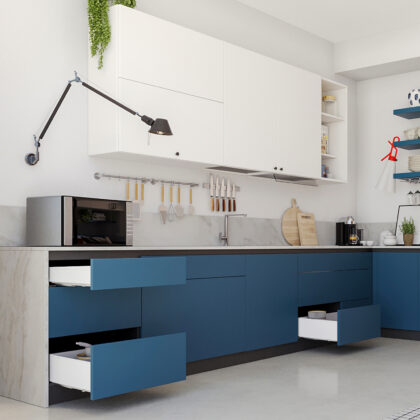

- Kitchen furniture
Material:
- The drawers 3275412 are made of sturdy steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- White
- White finishes convey a clean and modern aesthetic
- The colour white reflects light effectively, making rooms look brighter and visually larger
- In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

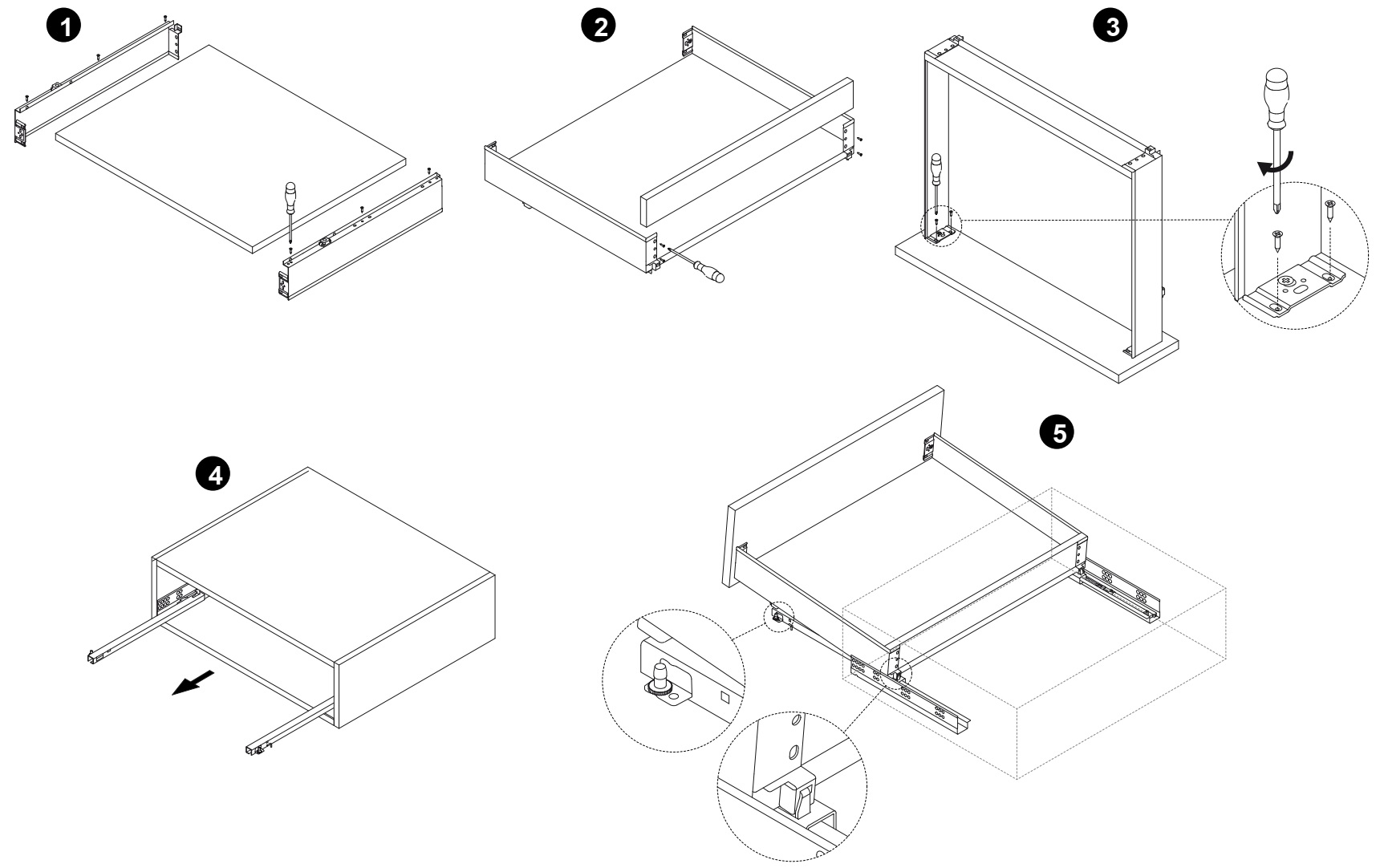

Assembly:
- First, the furniture body for the drawer rails must be drilled; the rails are attached to the body with 3.5 x 16 mm screws or Euro screws ⌀6.3 x 13 mm
- Then the wooden drawer bottom is prepared according to the drilling pattern and screwed to the frames with the help of the chipboard screws 3.5 x 14 mm countersunk lens head
- Then the back wall is pushed into the frames and screwed into place. The height of the back panel should be 60 mm (2-23/64″)
- Next, the front is attached to the drawer with screws (e.g. 3.5 x 16 mm)
- The finished drawer is then placed on the guide rails and pushed in
- Then the front is aligned vertically and ±1.5 mm horizontally using an eccentric ±2 mm and then tightened with the screw

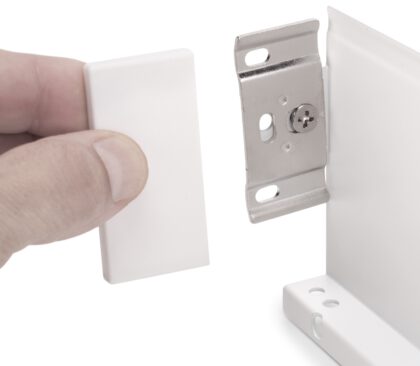

- Finally, the two cover caps are put on (for more details, see assembly drawing)
Features:
- Design: Partial pull-out with soft-close
- Weight: 2215 g
- Load capacity (load capacity): 25 kg (56 lbs)
- Drawer depth: 500 mm (19-11/16″)
- Available in 5 nominal lengths: 300 mm, 350 mm, 400 mm, 450 mm and 500 mm
- Available in 3 versions: Soft-Close Full Extension with Self-Closing Closure, Soft-Close Partial Extension with Self-Closing and Push-to-open Partial Extension
- Available in 3 heights: 88 mm, 122 mm and 159 mm
- Available in 2 surface colours: white and anthracite grey
- Also available with rectangular railings
- Easy installation, stable
- Drawer depth: 490 mm (19-19/64″)
- Maximum Bottom Thickness: 19 mm (3/4″)
- Height adjustment: +5.0 mm (11/64″)
- Lateral adjustment: ±1.5 mm

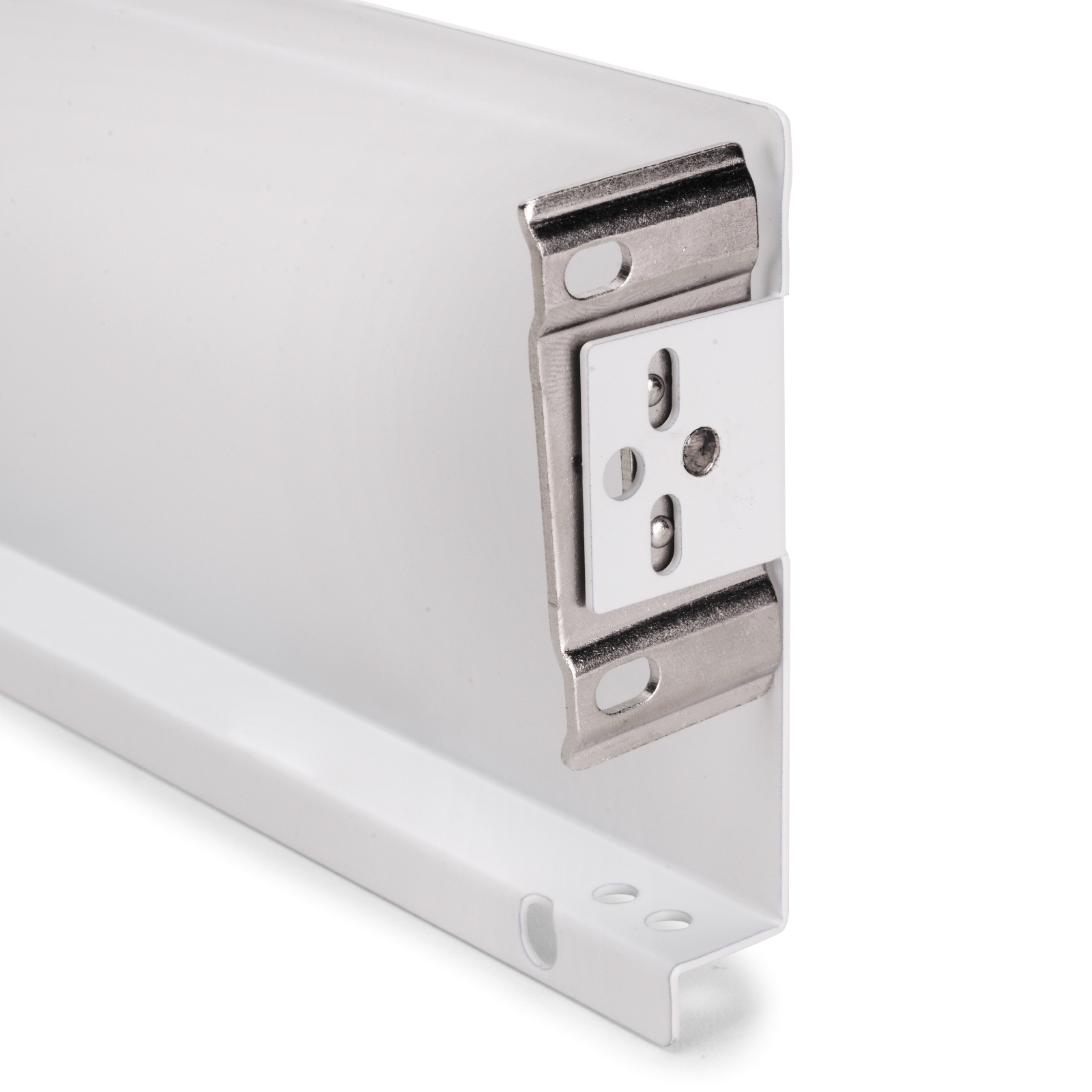

- Integrated front mounting and rear wall bracket
- Tool-free disassembly of the drawer via the integrated release
- White
- steel, robust
- High brand quality from UMAXO®

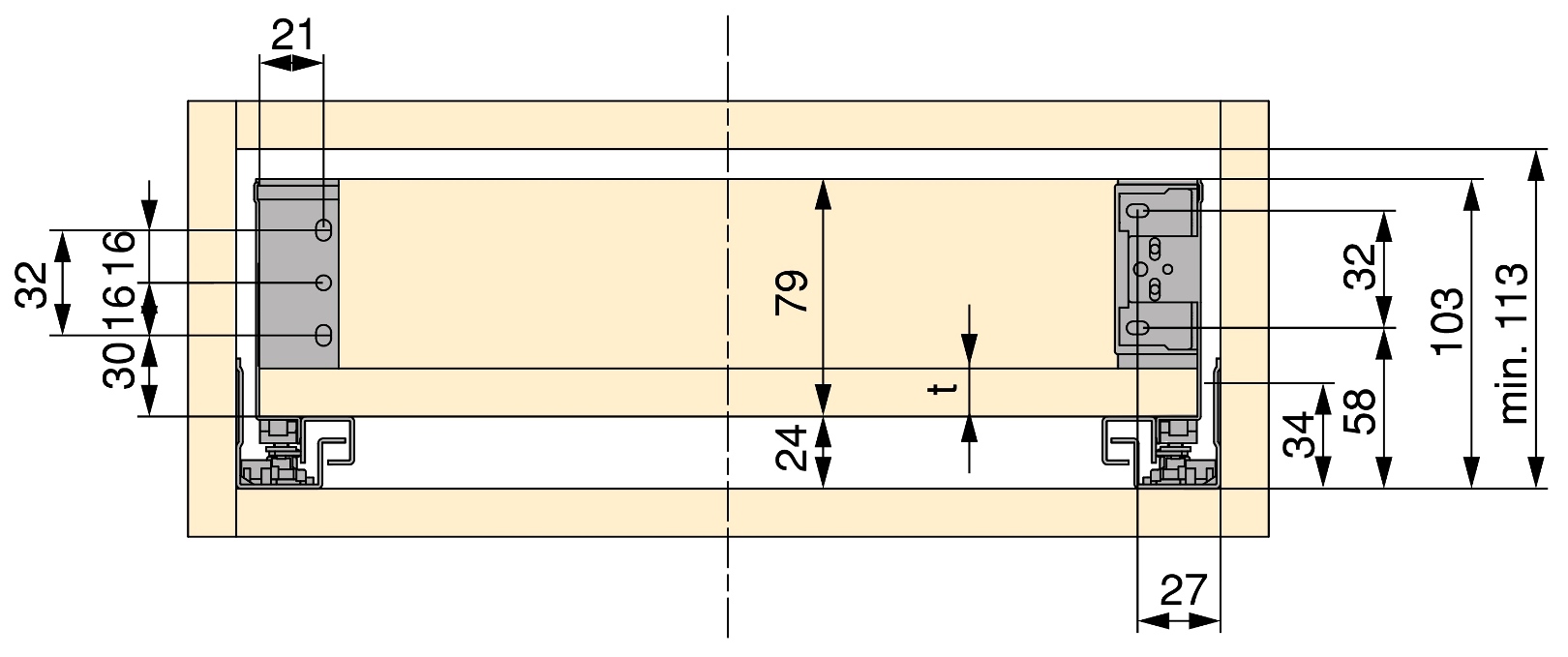

For more dimensions and details , see technical drawing.
The dimensions:
- Drawer depth: 500 mm (19-11/16″)

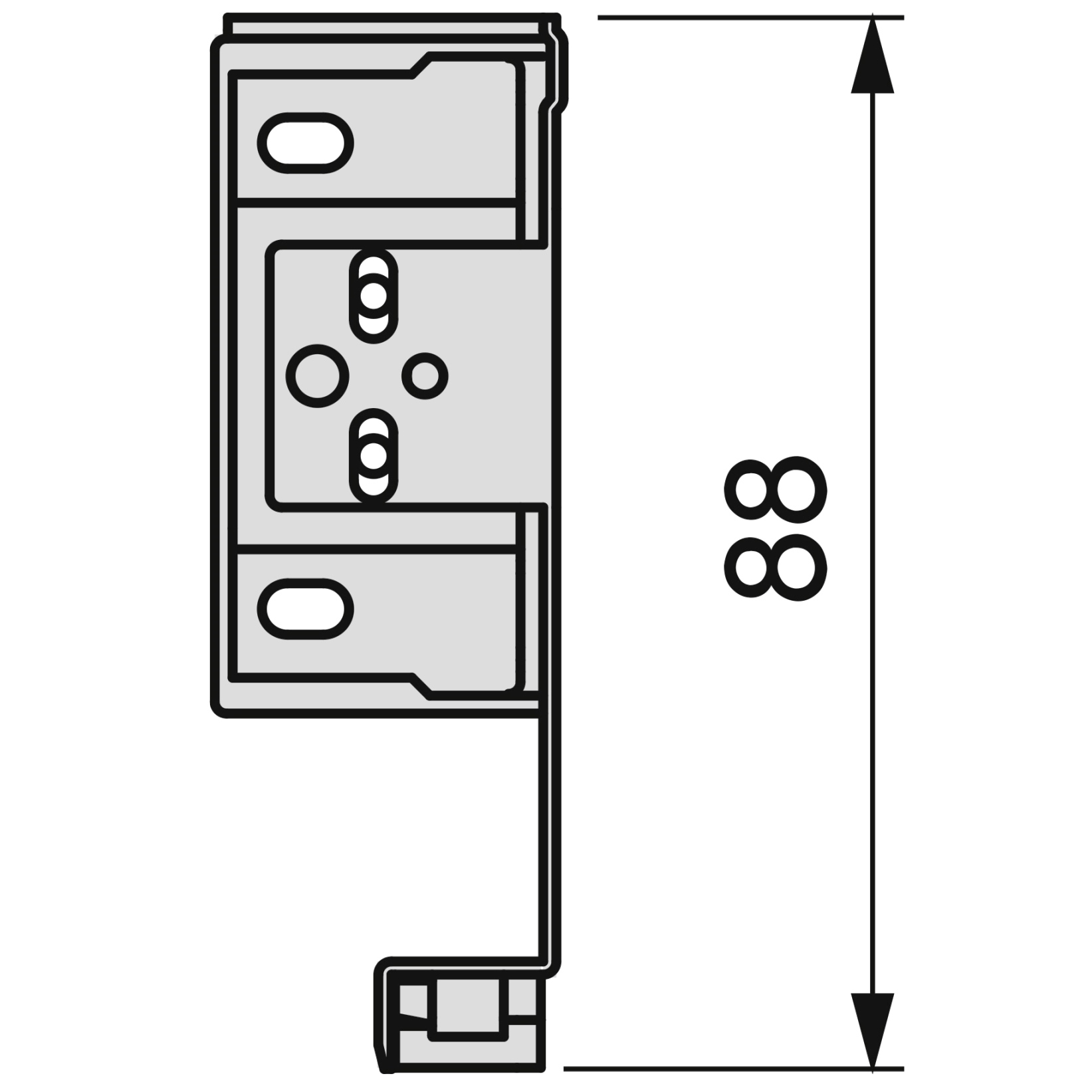

- Height of sides: 88 mm (3-15/32″)
Included in delivery:

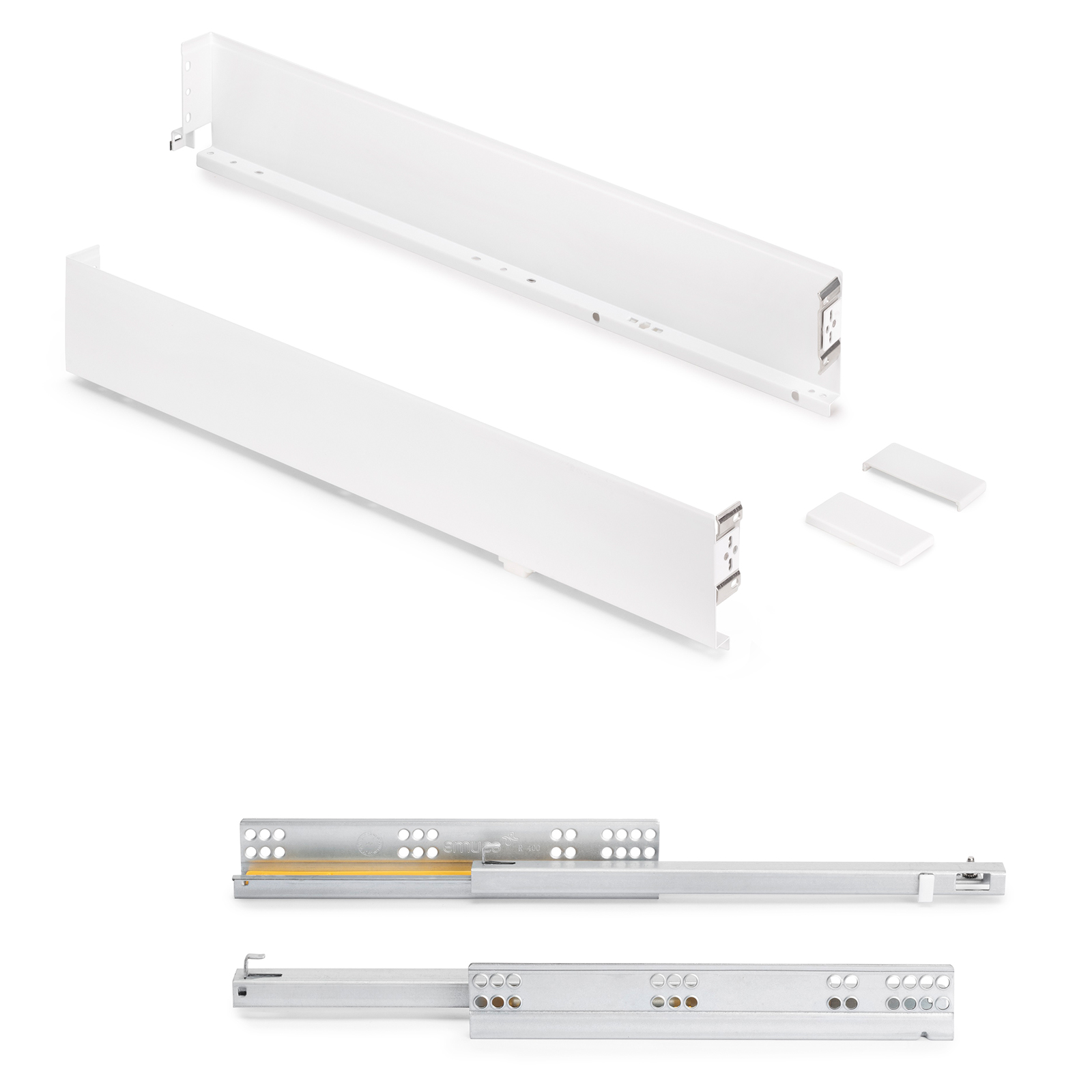

- 1 set of drawers 3275412 made of robust steel, white, 500 mm (19-11/16″)
- 1 pair of guide rails, nominal length: 500 mm (19-11/16″), version: partial extension with soft-close
- 2 pieces cover caps, colour: white
- This item does not include mounting screws
Watch product video:
Additional Information:
Manufacturer’s reference number:
- Article ID: 3275412 and 3019505
- EAN number: 8432393311654 and 8432393127064
Manufacturer: by EMUCA
