Description
Oval stainless steel shell handle made of stainless steel V2A (SUS304) HN-250SH
Application:
Oval stainless steel shell handle made of stainless steel V2A, satin finish, for drawers, cupboards, damp environments, ships, yachts, caravans.
The HN-250SH oval stainless steel handle shells have a simple and elegant design and can be used in many ways.
The high quality HN-250SH oval stainless steel handle shells are ideal for:
- drawers
- cabinets
- humid environments
- Ships
- yachts
- caravans
- beach hotel
- Medical
- doctor’s office
- laboratory equipment
Material:
The HN-250SH oval stainless steel handle shells are made of high quality SUS304 stainless steel.
They are corrosion resistant and rustproof.
Surface:
- Satin matt
Assembly:
- The HN-250SH oval stainless steel grip shells have two side mounting holes (Φ2mm) that are not visible to the user
- The assembly is carried out using the two needles included in the scope of delivery. These needles are also made of stainless steel

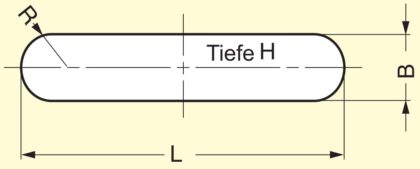

- For installation, an oval hole with the dimensions (L x W) = 220.5 x 36.5 mm and a depth (H) of at least 13.7 mm must be made on the front (for further details see installation drawing )
Features:
- Weight: 92g
- Size: 250mm (9.9″)
- Shape: oval
- Exclusive design
- Made of stainless steel
- stainless
- Corrosion resistant
- High quality
- Material thickness 0.8 mm
Dimensions:

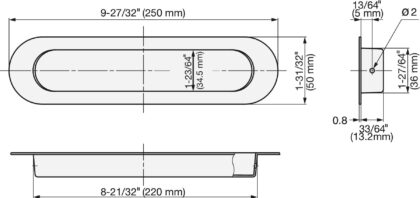

For further dimensions and details see technical drawing .
- Width of the oval stainless steel shell grip: 250 mm (9-27/32″)
- Height: 50mm (1-31/32″)
- Depth: 13.2mm (17/32″)
- Width of grip area: 220 mm (8-21/32″)
- Height of grip area: 34.5 mm (1-11/32″)
Included in delivery:
- 1 piece oval stainless steel shell handle HN-250SH made of stainless steel SUS304 (V2A)
- 2 stainless steel nails for attachment
Manufacturer’s reference number:
- Article number: 100-012-956
- Item name: HN-250SH
- EAN number: 4510932010344
Manufacturer: SUGATSUNE / LAMP® (Japan)
