Description
2 pieces flap hinge made of solid zinc alloy, surface: nickel-plated, 1010707
Application:

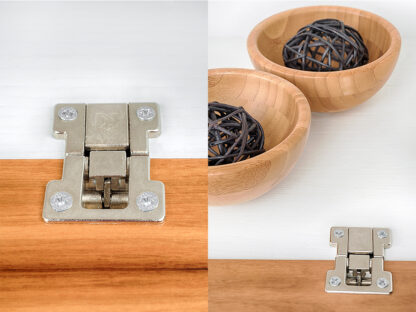

Zinc alloy bar compartment hinge for wooden flaps, furniture flaps, wooden lids, bar compartment and much more.
Furniture hinge for screwing, flap holder, inlet hinge hinge, bar compartment hinge for wooden flaps, wooden lid and furniture flaps.
Stable installation and tight fit thanks to two fastening screws in the bottom and flap sections.
The flap hinges have a rectangular shape, and a modern design.
It features a zamak cover that covers the adjustment screw and locking screw for an impeccable look
Subsequent flap installation possible by separate assembly of bottom and flap part.
The flap hinges have three-dimensional adjustment options: lateral, vertical and frontal.

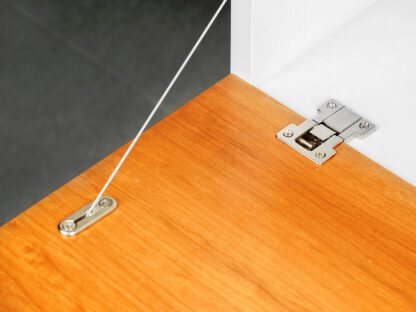

For use with flap support or lid holder only.
- Home furniture
- Office furniture
- Wooden flaps
- Furniture flaps
- Wooden lid
- Bar compartment
Material:
- The high-quality flap hinges 1010707 are made of solid zinc alloy (ZDC)
Surface:
- nickel plated
Assembly:
- The inlet hinge 1010707 for inlet in consists of two parts: bottom part and flap part
- Before installation, mounting holes with a diameter of Ø26 mm (1-1/32″) must be pre-drilled in the flap and in the bottom of the body
- The distance between the center of the drill holes and the edge must be 26 mm (1-1/32″)
- The depth of the mounting hole in the bottom part is at least 14 mm (35/64″)
- The depth of the mounting hole in the flap section is at least 15 mm (19/32″)
- The two parts of the flap hinge are inserted into the pre-drilled mounting holes and fastened with the screws (not included)
- At least two flap hinges are 1010707 necessary for attaching a compartment flap (for further details see
assembly drawing
)
Features:
- Weight: 72g
- Size: 54 mm (2.2″)
- Opening angle: 90
- Bore: Ø26 mm (1-1/32″)
- Drilling depth: 14 mm (35/64″) and 15 mm (19/32″)
- Removable
- Stable
- Solid
- Robust
- nickel plated
- High brand quality from UMAXO®
For further dimensions and details see technical drawing .
The dimensions:
- The complete length of the flap hinge (mounted): 54 mm (2-1/8″)
- Width: 38 mm (1-1/2″)
- The distance between screw holes: 27 mm (1-1/16″)
- Mounting pin length: 14 mm (35/64″)
Included in delivery:
- 2 pieces flap hinge 1010707 made of solid zinc alloy (consisting of flap part and body part), nickel-plated
- 2 pieces cover cap made of die-cast zinc for the adjustment screws
Manufacturer’s reference number:
- Product identification number: 1010707
- EAN number: 8432393100685
Manufacturer: EMUCA
