Description

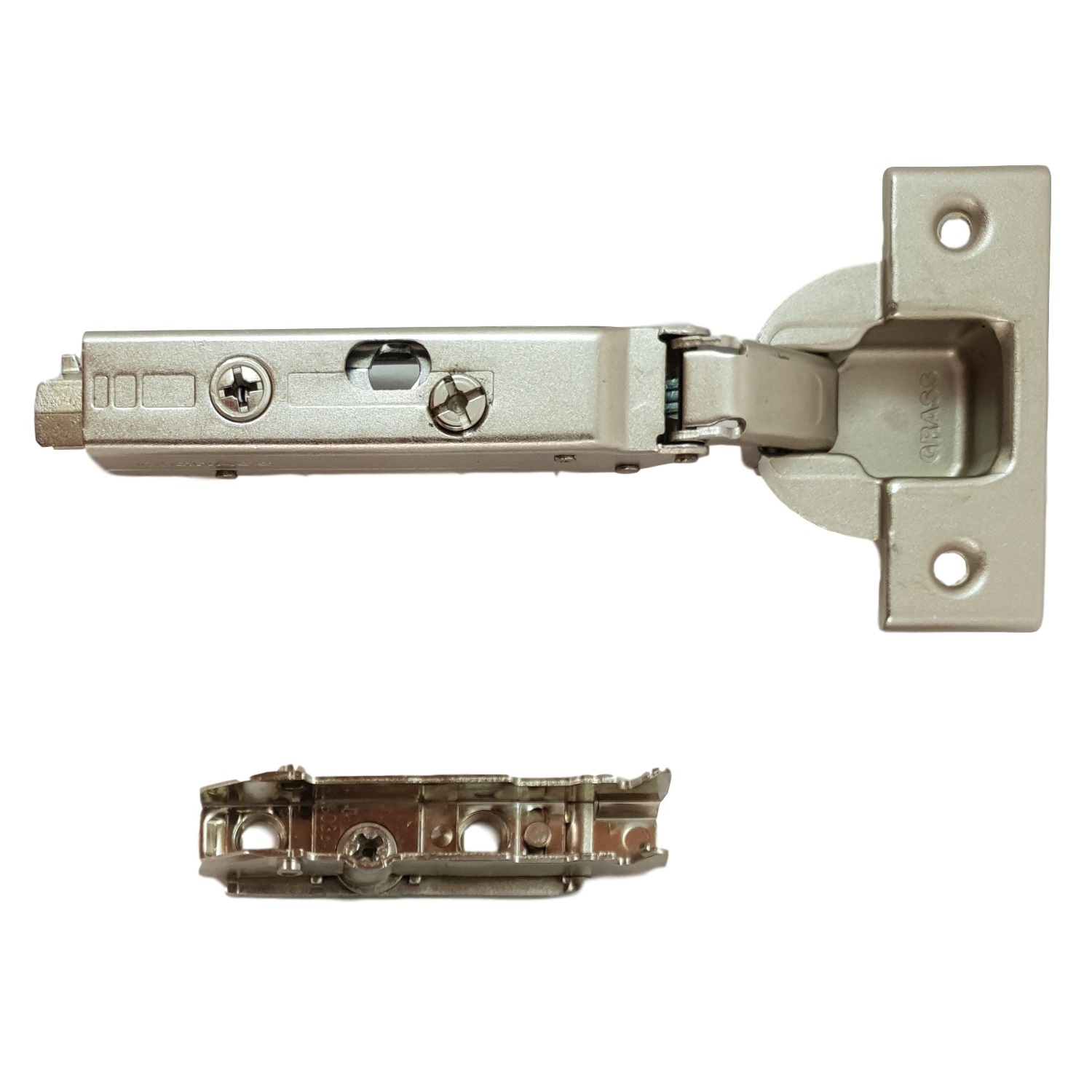

GRASS Tiomos 110° furniture hinge with damping, incl. straight mounting plate, four drilling patterns to choose from

Application:

To replace an existing furniture hinge, please measure the distance between the holes (see photo) and select the appropriate hinge.

There are four variants of drill spacing:

• 42 mm / 11 mm (6065 G)
• 45 mm / 9.5 mm (6064 B)
• 48 mm / 9 mm (6067 S)
• 52 mm / 5.5 mm (6066 H)

Adjustments:

• The furniture hinge has four adjustment options: support adjustment, depth adjustment, height adjustment and adjustable damping integrated into the hinge arm:
  Height adjustment: ±2 mm
• Windage adjustment: ±2mm
• Depth adjustment: +3/-2 mm
• Damper: 3 levels

Features:

• Click-On: tool-free mounting of the door on the carcase
• Incl. Straight Mounting Plate
• 110° opening angle
• Corner stop (surface-mounted, overlay)
• High quality brand

Included in delivery:

• 1 piece hinge with integrated damping
• 1 piece straight mounting plate with adjustment option
• No mounting screws are included with this item

View assembly video:



Additional product information:

• Download assembly instructions for GRASS Tiomos furniture hinges!

Made at
GRASS
in Germany
