Hidden snap latch handle, surface: white, AK-60WT and AK-C60WT. Practical safety bolt handle for yacht interiors, motorhome conversions, caravan furniture, campers and much more, by Sugatsune / LAMP® (Japan)

Description

Hidden snap latch handle, made of robust polyacetal (POM), surface: white, AK-60WT and AK-C60WT

Application:

Practical safety latch handle for yacht interiors, motorhome conversions, caravan furniture, campers and much more.



The AK-60WT safety bolt handle is used to securely lock hinged and hinged doors and prevents unintentional opening in the event of vibrations.

When closing, the mechanism of the AK-60WT push-button latch handle automatically engages and keeps the door reliably closed with 196 N.

The AK-60WT push-button latch handle is suitable for door thicknesses from 15 mm (19/32″) to 25 mm (63/64″).



To open it, a gentle pressure on the push button recessed into the door front is sufficient; There are no handles or buttons, so that a smooth look is maintained.

The housing made of robust polyacetal (POM) is corrosion-resistant and suitable for the furniture and yacht sector.

The spacers included in the scope of delivery allow adaptation to different panel thicknesses.

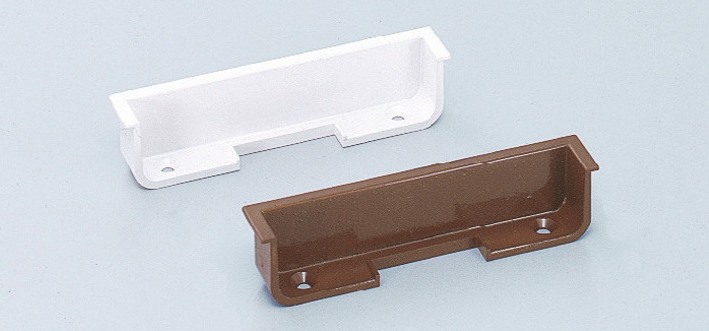

The AK-C60WT cover cap, which is also included in the scope of delivery, can be used if necessary and neatly conceals cut edges.

Thus, the product combines safety, ease of use and aesthetic restraint.

The high-quality snap fastener handles 140-050-215 and 140-050-213 are ideal for, among other things:

• Motorhome
• Shopfitting
• Furniture doors
• Work out
• Doors
• Kitchen wall units
• Yacht Interior
• Motorhome conversion
• Caravan furniture
• camper

Material:

• The snap fastener handles 140-050-215 and 140-050-213 are made of robust polyacetal (POM)
• Polyacetal (POM) combines very high abrasion and wear resistance with a low friction coefficient, so that fittings function smoothly over the long term
• Thanks to its high dimensional and dimensional stability, even with changing humidity, the accuracy of fit of hinges, pull-outs or locks is maintained

Surface:

• White
• White finishes convey a clean and modern aesthetic
• The colour white reflects light effectively, making rooms look brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use



Assembly:



• The fastening is done using the six screws included in the scope of delivery (6 pan head screws, self-tapping (2 pieces 3.5 x 15 mm, 2 pieces 3.5 x 20 mm and 2 pieces 4.0 x 15 mm))

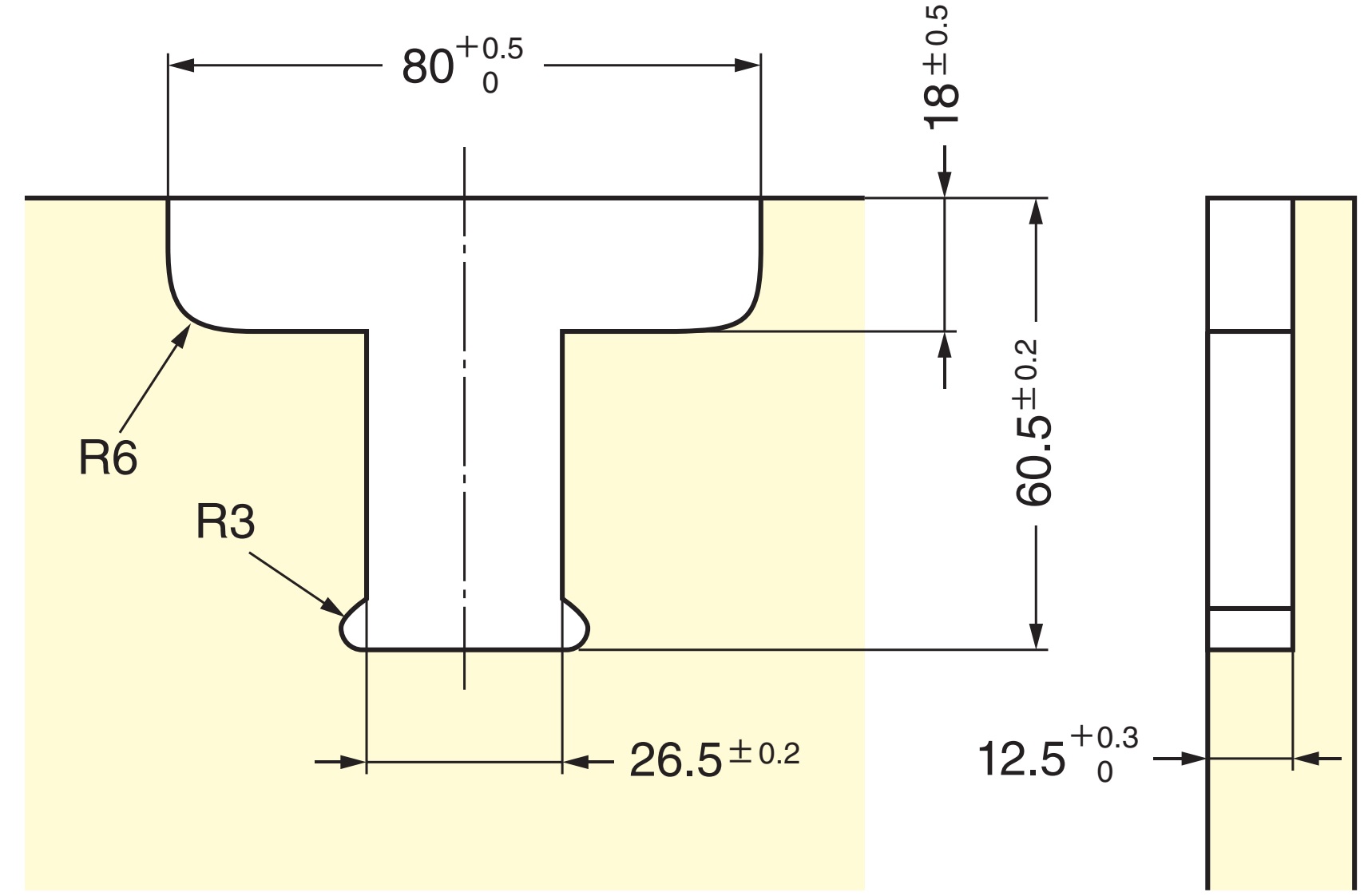

• First, a milling must be carried out on the inside of the door
• The snap fastener is inserted flush and screwed with 3.5 x 15 mm or 3.5 x 20 mm binding head self-tapping screws

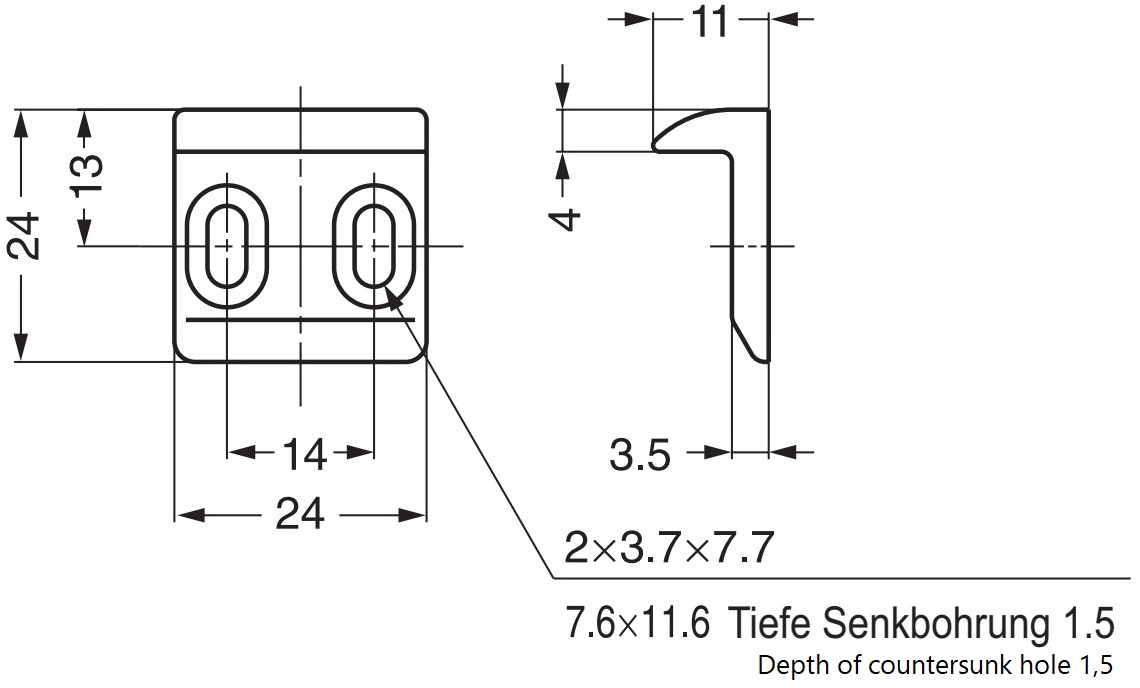

• The counter plate is positioned in the body with a center distance of 60.5 mm (2-3/8″) and screwed in place
• For panel thicknesses of less than 25 mm (63/64″), the supplied spacer plates are placed in between
• Finally, the function is tested by closing the door and opening it with pressure (for more details, see assembly drawing)





Features:

• Weight: 69g
• Load capacity (load capacity): 196 N (20 kp)
• Size: 80 mm (3-5/32″)

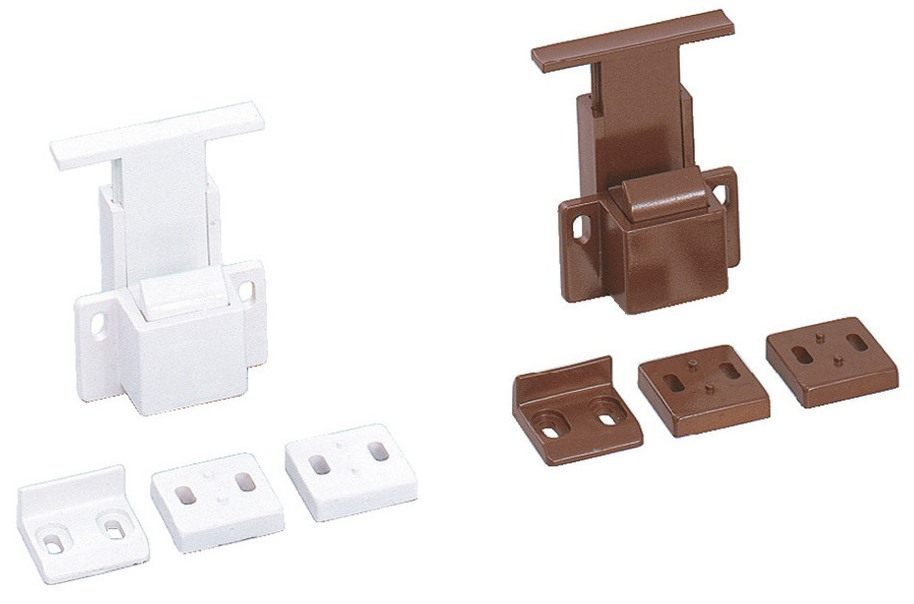

• Available in white and brown colours
• Easy installation, practical, stable
• For surface-mounted doors
• Self-locking push mechanism
• Recessed mounting
• Keeps doors securely closed
• For door thicknesses from 15 mm (19/32″) to 25 mm (63/64″)
• For doors with a maximum height of 700 mm (27-9/16″)
• For doors with a maximum width of 500 mm (19-11/16″)
• Low-noise opening at the touch of a button
• Incl. Cover cap
• Easy adaptation to different door thicknesses
• Suitable for furniture, vehicles and marine
• Low weight
• white
• robust (lightweight)
• high brand quality of Sugatsune / LAMP®



The dimensions:

• Snap Latch Handle Width: 50 mm (1-31/32″)
• Handle width: 80 mm (3-5/32″)

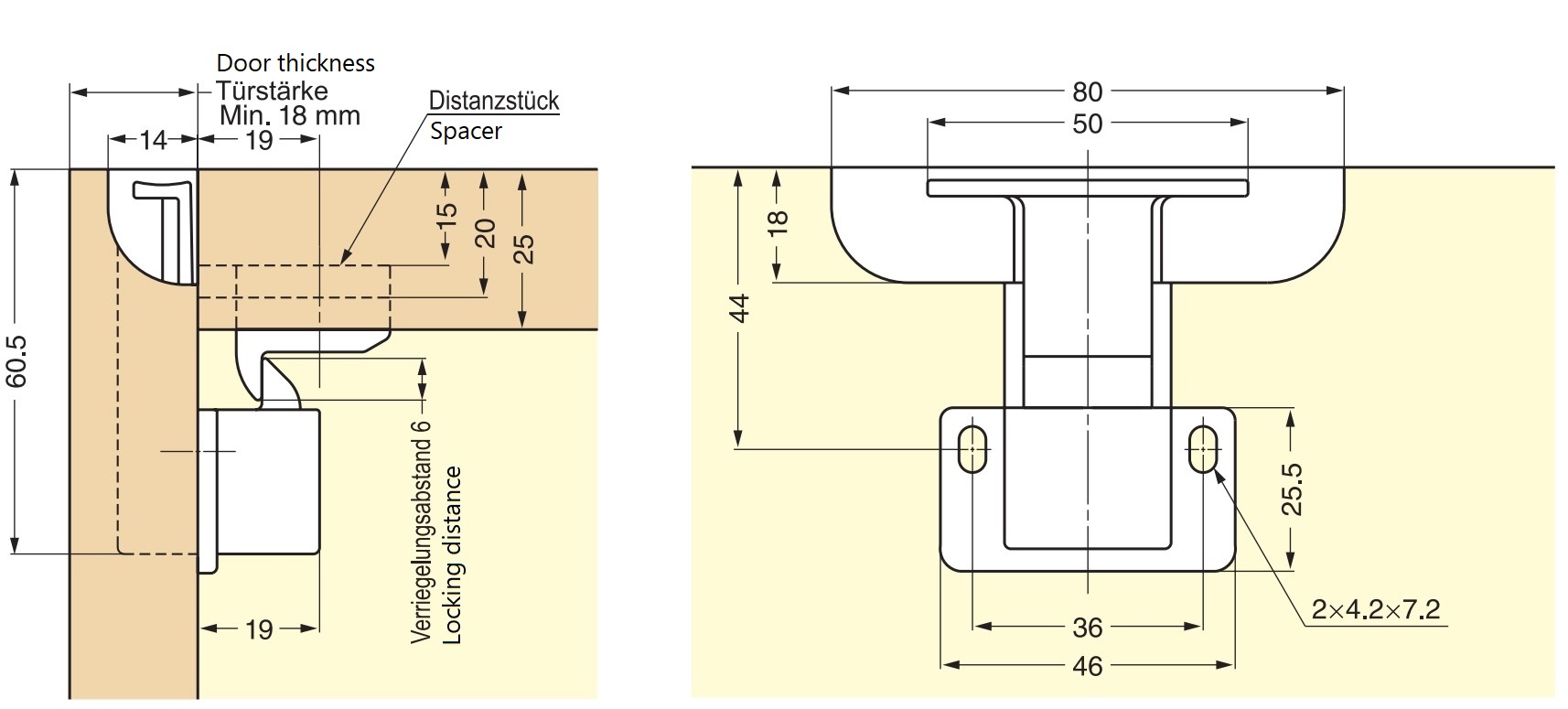

For more dimensions and details, see technical drawing.



Included in delivery:

• 1 piece Snap fastener handle 140-050-215 and 140-050-213 made of robust polyacetal, white
• 1 piece cover cap AK-C60WT

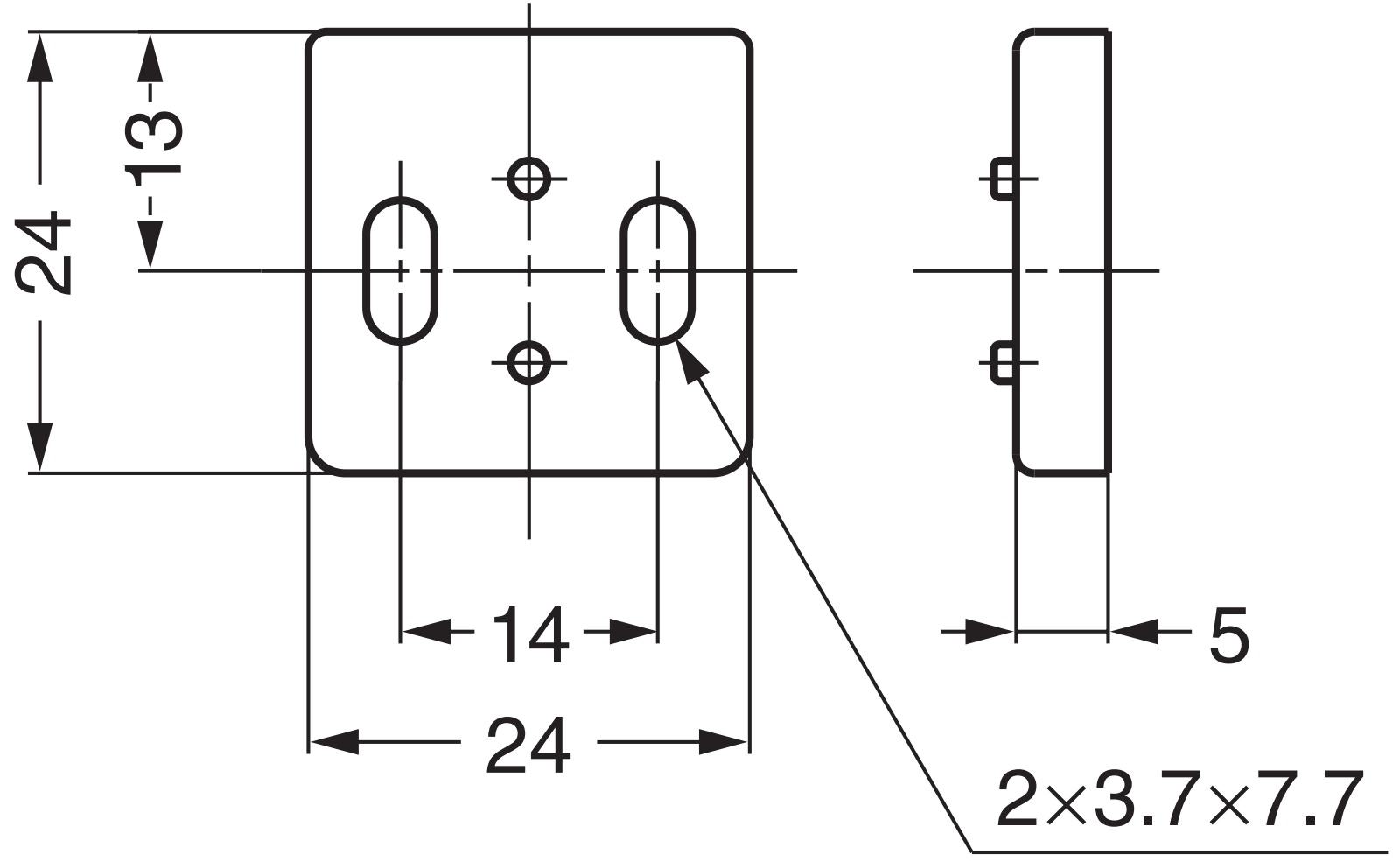

• 2 pieces spacer plate 5 mm for thin doors
• 1 piece of strike plate
• 6 pan head screws, self-tapping (2 pieces 3.5 x 15 mm, 2 pieces 3.5 x 20 mm and 2 pieces 4.0 x 15 mm)

Additional Information:

• Download assembly instructions

Manufacturer’s reference number:

• Article ID: 140-050-215 and 140-050-213
• SKU: AK-60WT and AK-C60WT
• EAN number: 4510932000369 and 4510932000352

Manufacturer: Sugatsune / LAMP® (Japan)
