Description

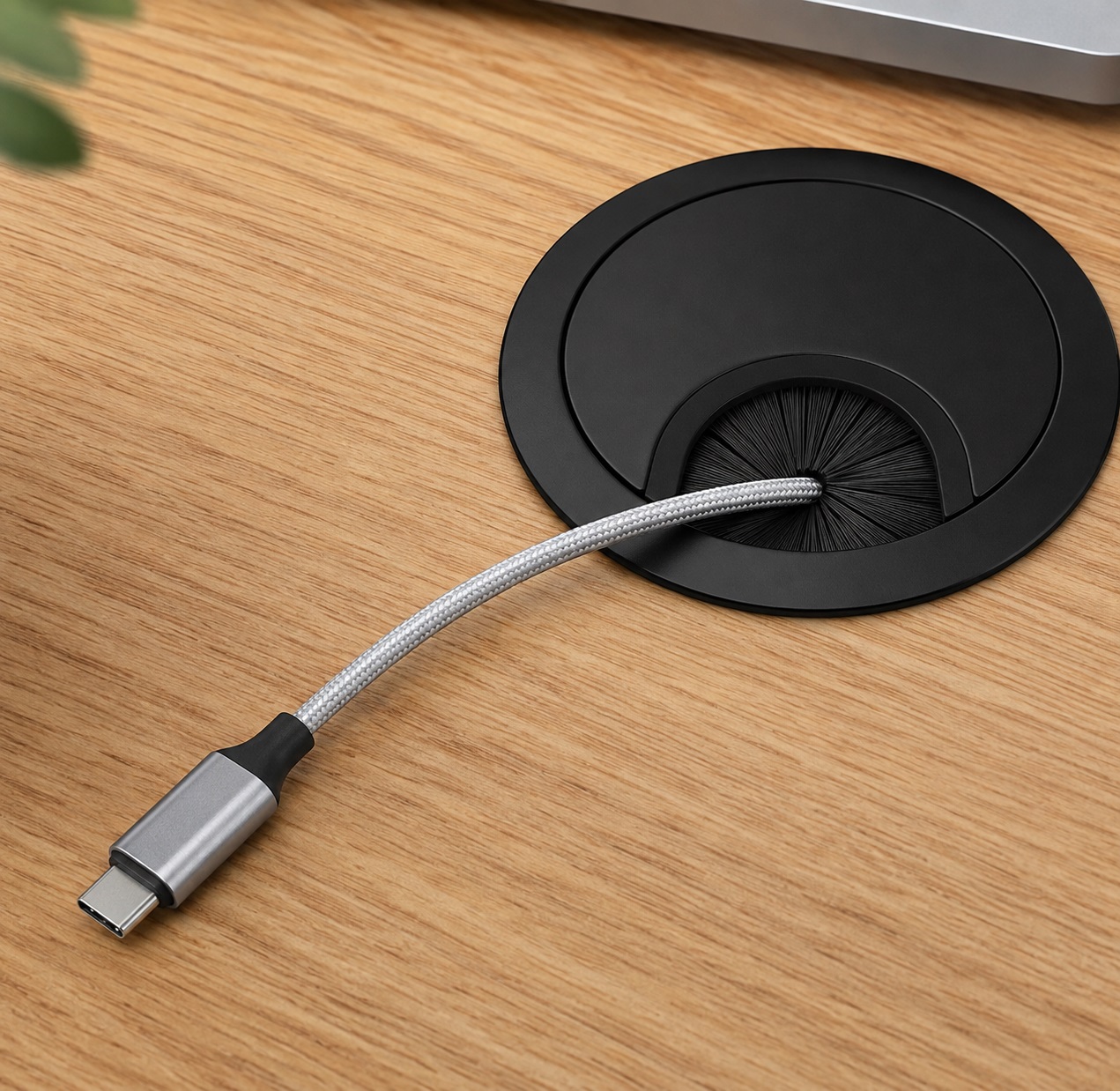

High-quality cable grommet made of zamak, Ø 60 mm (2-3/8″) for desk with brush seal 25.20.434-0
Surface: black
Application:
The round cable outlet is ideal for high-quality worktops, desks, office desks, etc.
The cable grommet is made of high-quality metal (zamak), with a refined surface,
A brush seal is integrated into the lid of the table cable guide to prevent dust from entering
The closure lid can be fixed by turning it slightly and holds firmly in place. It does not slip when using several cables and prevents thick cables from pushing the lid upwards.
The black, powder-coated surface blends discreetly into modern desks, conference tables, reception desks and worktops.
Assembly:
- The desk cable grommet offers a particularly simple assembly for letting in
- For assembly, a circular cut-out with ⌀60 mm (2-3/8″) is made in the table top.
- The cable grommet is then inserted into the cut-out from above.
Features:
- Brush insert for orderly cable routing and a visually clean finish
- Shape: round
- Rotatable lid for flexible alignment of the cable opening
- Free opening: ⌀56 mm (2-13/64″)
Included in delivery:
- 1 piece cable grommet
Material:
- Case: Zamak
- Gasket: Brush
Surface:
- Colour: Black, powder-coated
Dimensions:
- Drill hole diameter: ⌀60 mm (2-3/8″)
- Outer Diameter: ⌀68 mm (2-11/16″)
- Inlet depth: 13 mm (33/64″)
- Overall Height: 16 mm (5/8″)
For more information , see technical drawing
Download:
Manufacturer’s reference number:
- Item number: 25.20.434 (25.20.434-0)
Manufacturer: SISO Denmark
