Description

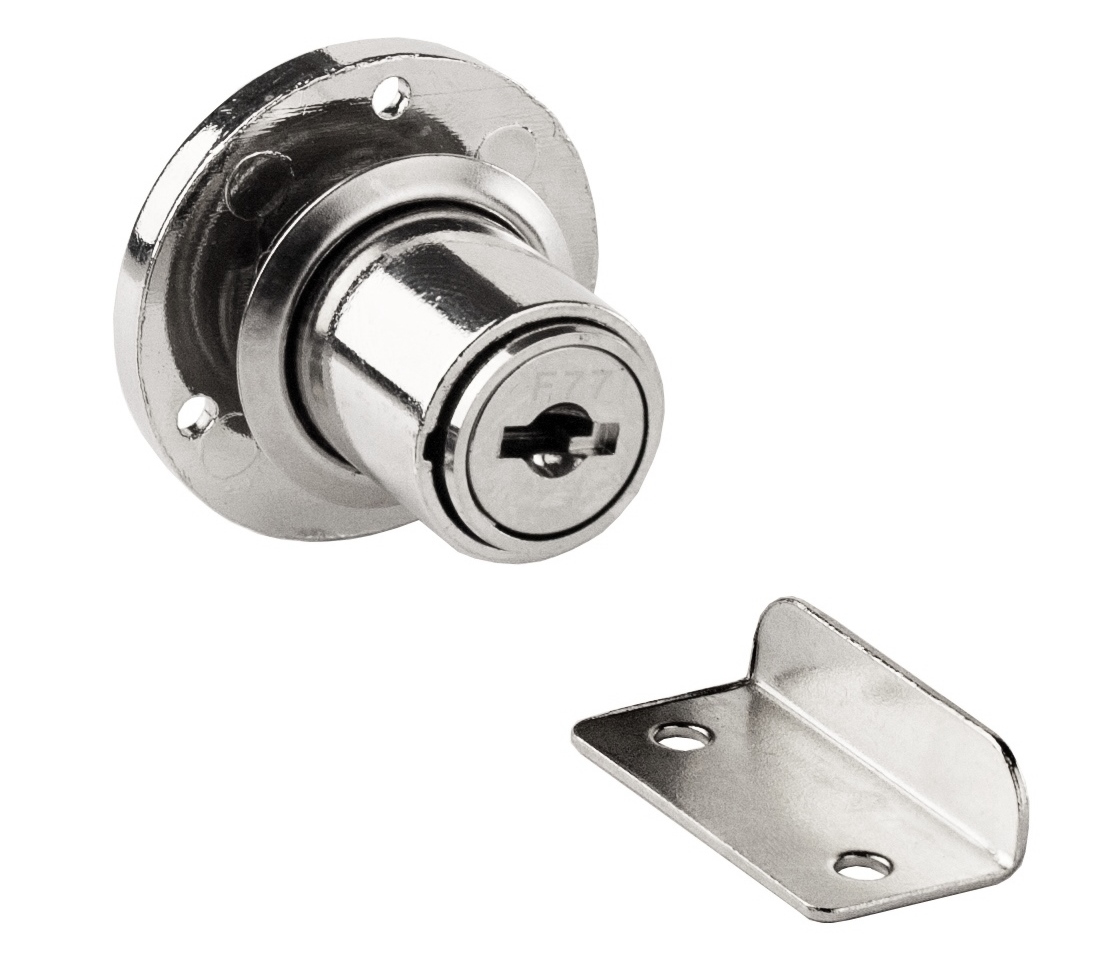

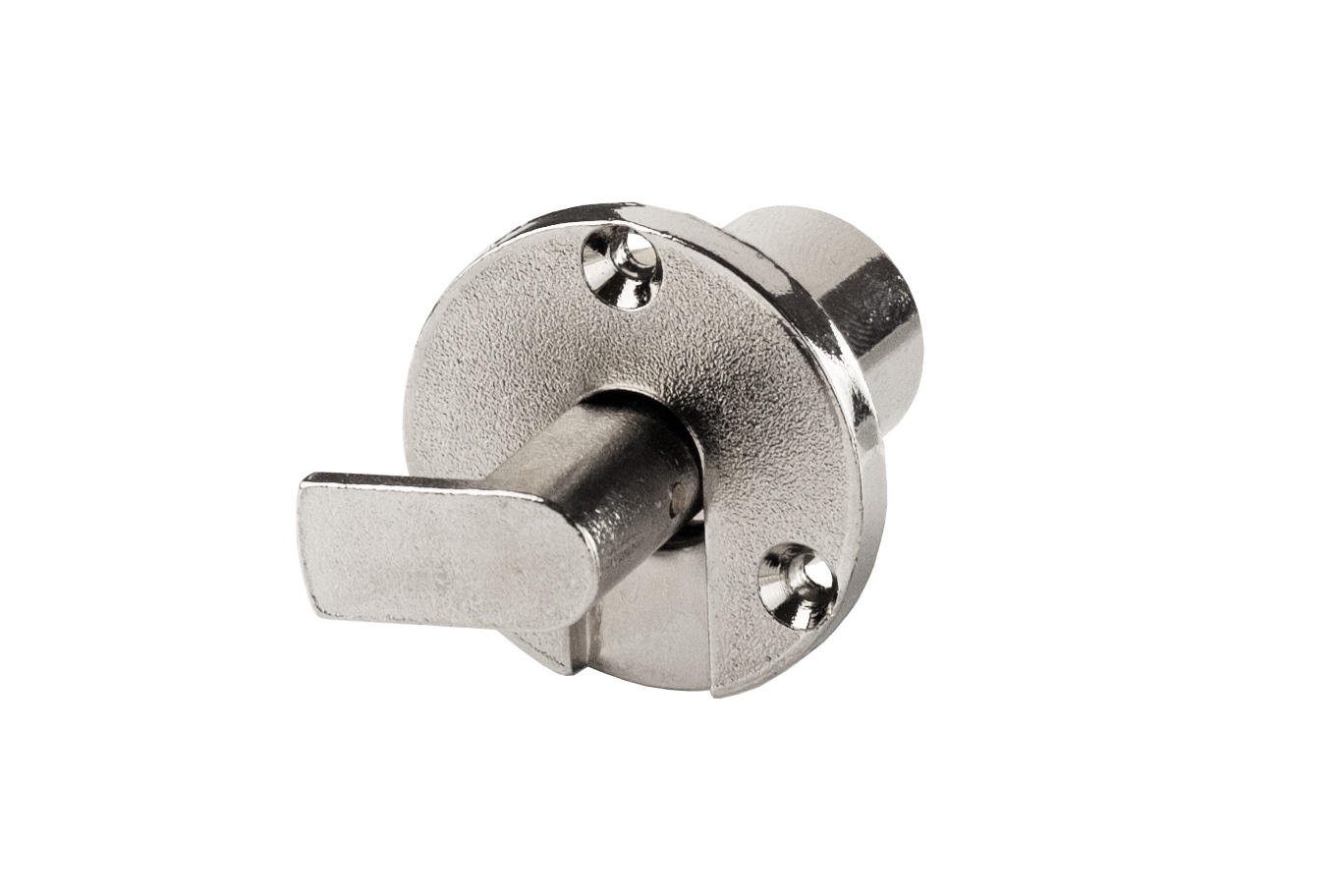

Robust flap lock, with cylinder rosette and two keys, incl. strike plate, made of solid die-cast zinc, surface: nickel-plated, 14.03.004-1, version: with master key system J11
Application:

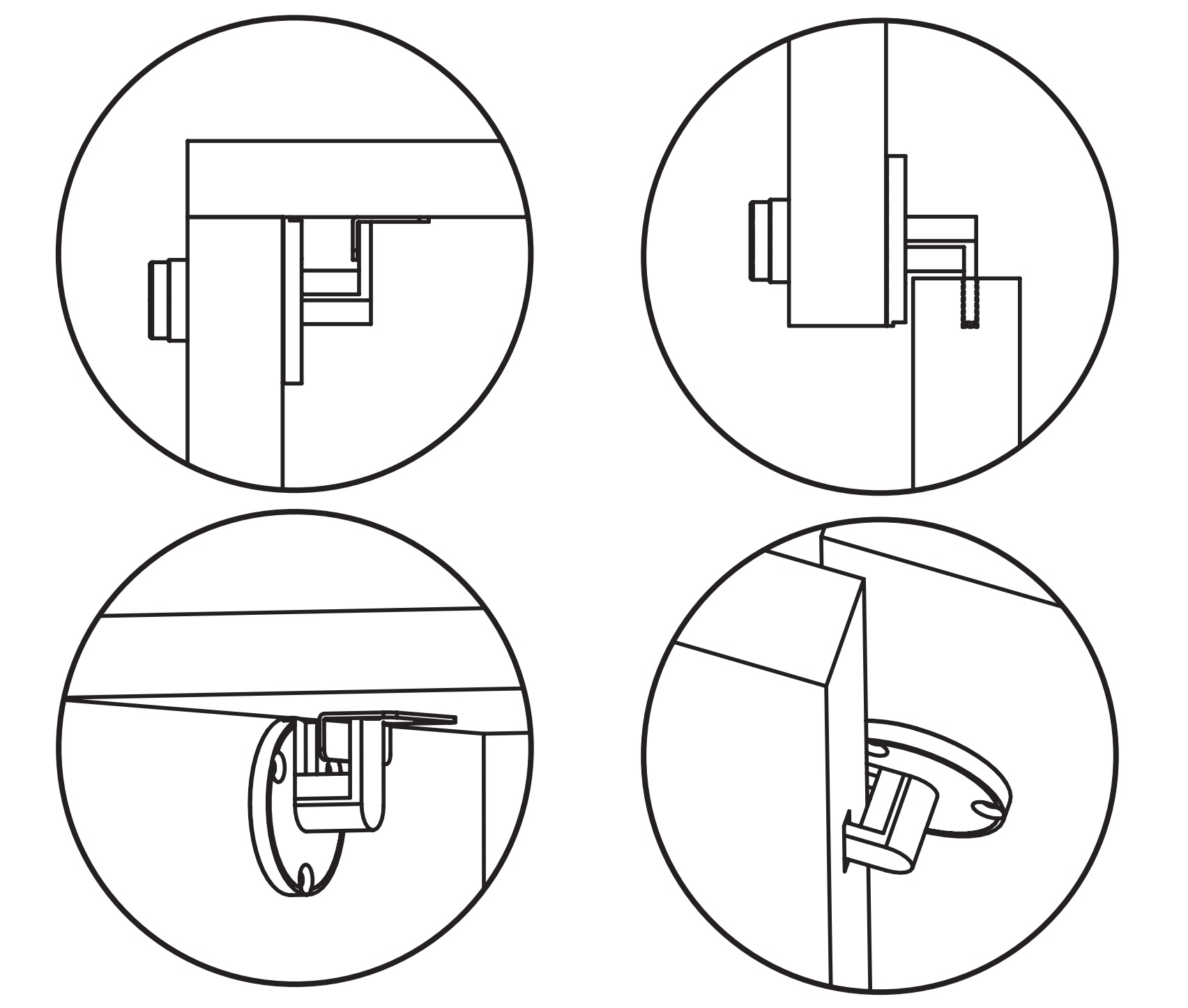

Inlet flap lock for flaps, sliding doors, cabinets and much more.
To close the flap lock 14.03.004-1, the lock cylinder must be pressed and then the key must be turned 90 degrees (push-turn bolt).
The inlet flap lock has a permanently mounted pin cylinder.
No need to lock: key can be removed in open and closed position.
All locks equipped with the J11 master key system can be opened with the J11 master key.
The high-quality flap locks 14.03.004-1 are ideal for, among other things:
- Furniture
- Office furniture
- Work out
- Sliding
- cabinets
Material:
- The flap locks 14.03.004-1 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Surface:
- nickel plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- The fastening is done with wood screws 3 mm screws (not included)
- Flap lock 14.03.004-1 is for screwing
- To install the flap lock, a hole with a diameter of ⌀20 mm (25/32″) must be drilled
- The mounting plate of the flap lock 14.03.004-1 has three mounting holes with a diameter of ⌀3 mm
- The strike plate has two mounting holes with a diameter of ⌀3 mm (for more details see assembly drawing)
Features:
- Version: with master key system J11
- Weight: 90g
- Size: 19 mm (3/4″)
- Also available with master key
- Easy installation, practical, stable
- high-quality
- without compulsory closing
- with permanently mounted pin cylinder
- Cylindrical Shape: Round Cylinder
- Closing movement: 90 degrees
- 2.5 mm stroke
- 400 different key variants
- nickel plated
- Zamak
- Zinc die casting
- high brand quality of UMAXO®

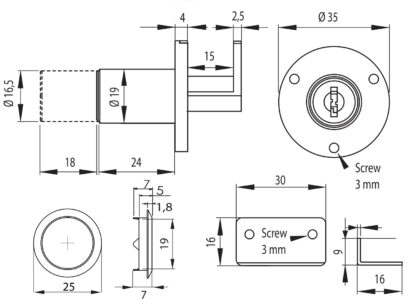

For more dimensions and details, see technical drawing.
The dimensions:
- Flap lock diameter: ⌀19 mm (3/4″)
- Mounting plate diameter: ⌀35 mm (1-3/8″)
- Cylinder rosette diameter: ⌀25 mm (63/64″)
- Strike plate width: 30 mm (1-3/16″)
- Cylinder length: 24 mm (15/16″)
- Latch depth: 15 mm (19/32″)

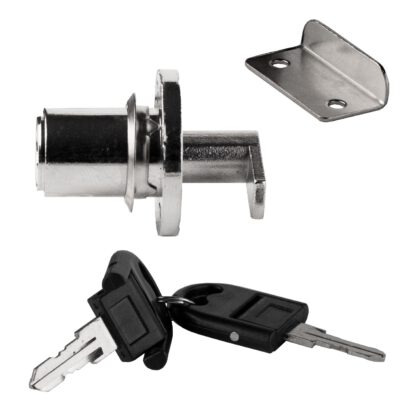

Included in delivery:
- 1 piece flap lock 14.03.004-1 made of solid die-cast zinc, nickel-plated, version: with master key system J11

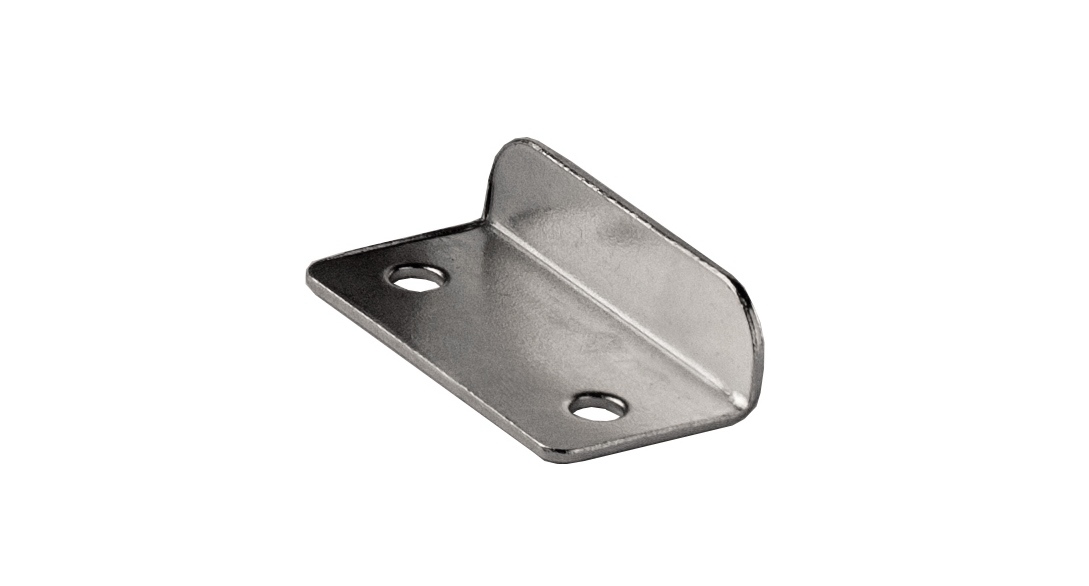

- 1 piece of strike plate
- Two pieces of wrench
- 1 piece cylindrical rosette
Additional Information:
Manufacturer’s reference number:
- Article ID: 14.03.004-1
- EAN number: 5704866034272
Manufacturer: SISO Denmark
