High-quality hook made of stainless steel for quick mounting without tools on plasterboard wall or wall made of plasterboard. Stainless steel hooks PF-22 and PF-30 by Sugatsune / LAMP® (Japan)

Description

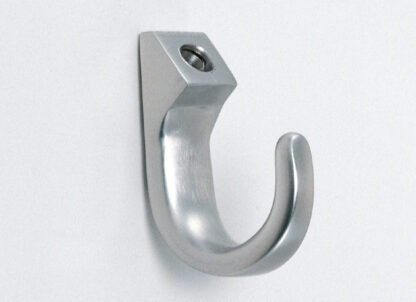

Practical high-quality hook made of stainless steel SUS304 PF-22 and PF-30 by Sugatsune / LAMP® (Japan)

Application:

The peculiarity of the stainless steel hook PF is that it can be quickly attached to plasterboard wall or wall made of plasterboard or plasterboard without tools.

For fastening, the supplied pin is pressed by hand through the opening in the hook into the plasterboard.



Together with the pin on the back of the hook, this ensures a secure hold of up to 2 kg of weight.

The high quality stainless steel hook PF from Sugatsune / LAMP® (Japan) is available in two different sizes: PF-22 (height 30 mm) and PF-30 (height 35 mm).

Perfect for humid environments, can also be used on ships, caravans and boats.

Also suitable for bath, sauna, swimming pool, laboratory and medical area.

Incl. Stainless steel pin for easy installation and long service life.

After installation, the hook does not move because it is securely held by two pins.

Assembly:

For easy and quick installation on plasterboard, stainless steel hook PF has a sharp pin on the back.

First, the hook is firmly pressed into the plasterboard with this pin on its back.

Then the supplied stainless steel pin is inserted firmly into the opening on the hook by hand – done!

The sharp stainless steel pin penetrates the plasterboard with almost no resistance.

The stainless steel pin must be pressed into the hook so that the pin head sinks into the opening.

For disassembly, the hook is pulled out of the wall diagonally upwards by hand and can then be installed in another place.

Included in delivery:

• 1 piece stainless steel hook PF (PF-22 or PF-30)
• 1 piece stainless steel pin

Material:

• Housing: stainless steel V2A, SUS304

Surface:

• Color: Stainless steel, Shiny

Dimensions, see drawing (mm):

For values W, P, H, H₁, A, D and D₁ see table below.

Type	D	W	H	H1	t
PF-22	22	9	30	16	3
PF-30	30	10	35	22	4

Technical data:

mm

mm

Type	Load capacity, N	Load capacity, kp	Weight
PF-22	19.6	2	13 g
PF-30	19.6	2	23 g

Manufacturer’s reference number:

Article description	Article
PF-22	110-020-500
PF-30	110-020-501



Manufacturer: SUGATSUNE / LAMP® (Japan)
