High-quality lever handle lock, made of zamak, surface: chrome-plated, 14.03.080-0+14.03.080-5. Solid handle lever lock with self-locking lock for yacht, caravan, private jet, caravan and much more, by SISO Denmark

Description

Practical lever handle lock 14.03.080-0+14.03.080-5, with self-locking lock, made of solid die-cast zinc, surface: chrome-plated

Application:

Solid handle lever lock with self-locking lock for yacht, caravan, private jet, caravan and much more.



The high-quality lever handle lock 14.03.080-0+14.03.080-5 is a furniture handle with a locking function and, when locked, ensures that the furniture doors, cabinet doors or drawers do not open unintentionally while driving or flying.

The handle lever lock 14.03.080-0+14.03.080-5 is suitable for door thicknesses between 13 mm (33/64″) and 19 mm (3/4″).

To open the furniture door, the lever under the handle of the handle lever lock 14.03.080-0+14.03.080-5 must be pressed upwards with one finger and the lever handle lock must be released.



The handle lever lock 14.03.080-0+14.03.080-5 serves as a practical handle with a depth of 25.6 mm (1-1/64″).

These features make the lever handle lock 14.03.080-0+14.03.080-5 ideal for ships, private planes, motorhomes and caravans.

The high-quality lever handle locks 14.03.080-0+14.03.080-5 are ideal for, among other things:

• Boat
• Motorhome
• Superyacht
• Camper Van
• Yacht
• Caravan
• Private Jet
• Caravan

Material:

• The lever handle locks 14.03.080-0+14.03.080-5 are made of solid die-cast zinc
• Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality

Surface:

• Chrome-plated
• Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
• They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
• In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger

Assembly:

• Fastening is done using the six screws included in the scope of delivery
• For mounting, two holes with a diameter of ⌀6.5 mm (1/4″) and one hole with a diameter of ⌀18 mm (45/64″) must be drilled in the front
• The handle lever lock 14.03.080-0+14.03.080-5 is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)



Features:

• Weight: 162 g
• Size: 164.5 mm (6-15/32″)
• Available in three surface colours: chrome-plated, black and stainless steel look
• Easy installation, practical, stable
• Modern design
• High-quality optics
• Suitable for internal (enclosed) and surface-mounted (existing) furniture doors
• The lever handle locks 14.03.080-0+14.03.080-5 look solid and high-quality
• chrome-plated
• Zamak
• Zinc die casting
• high brand quality of UMAXO®

For more dimensions and details, see technical drawing.

The dimensions:

• Handle Lever Lock Width: 6-15/32″ (164.5 mm)
• Height: 25 mm (63/64″)
• Handle depth: 25.6 mm (1-1/64″)



Included in delivery:

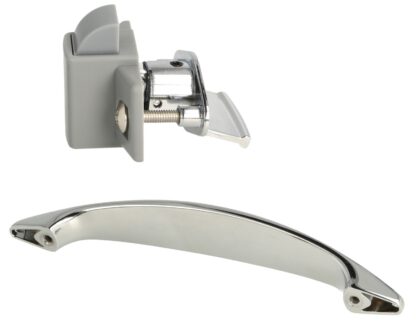

• 1 piece lever handle lock 14.03.080-0+14.03.080-5 made of solid die-cast zinc, chrome-plated
• Six pieces of fastening screw
• 1 piece lock made of ABS, colour: grey
• 1 piece counterpart made of ABS, colour: grey
• 1 piece lever made of zamak, color: chrome-plated



Additional Information:

• Download Reach Declaration

Manufacturer’s reference number:

• Article ID: 14.03.080-0 and 14.03.080-5
• EAN number: 5704866518253 and 5704866520546

Manufacturer: SISO Denmark
