High-quality push-button closure with handle function, made of zinc alloy (ZDC), surface: chrome-plated, version: right, PKL05RCR and PKLW. Solid snap fastener for yacht and much more, by Sugatsune / LAMP® (Japan)

Description

Exclusive snap fastener PKL05RCR and PKLW, made of solid zinc alloy (ZDC), surface: chrome-plated, finish: right

Application:

Massive snap button for yacht and much more.

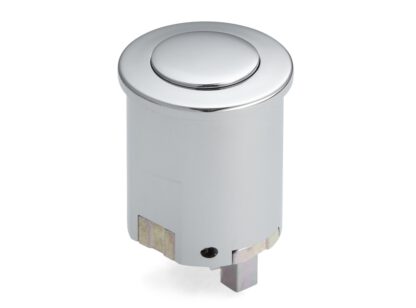

The high-quality push-button closure PKL05RCR and PKLW is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight. When closed, the push button is recessed and thus protects against collisions. For door thicknesses between 15 mm (19/32″) and 25 mm (63/64″). Also possible to install from a door thickness of 13 mm (33/64″) using the optional PKL-Spacer/WHT spacer (the PKL-Spacer/WHT spacer is not included, please order separately).

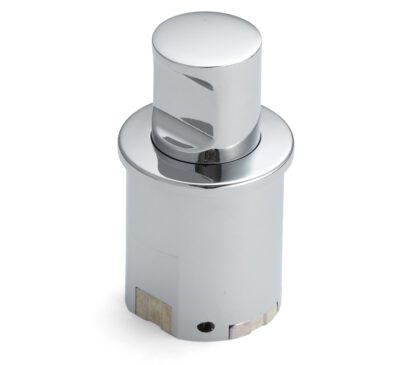

To open the furniture door, the handle of the snap fastener must be PKL05RCR and PKLW pressed and thus released. The push button PKL05RCR and PKLW serves as a practical handle when open. These features make the push-button closure PKL05RCR and PKLW ideal for private planes and motorhomes and caravans.



The push button PKL05RCR and PKLW is suitable for doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″). The high-quality snap fasteners PKL05RCR and PKLW are ideal for:

• Motorhome
• Boat
• Caravan
• Private aircraft
• Superyacht
• Caravan
• Camper Van
• Yacht

Material:

• The PKL05RCR and PKLW snap fasteners are made of solid zinc alloy (ZDC)

Surface:



• Chrome-plated
• Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
• They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
• In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
• The snap fasteners PKL05RCR and PKLW look solid and extremely high-quality
• Available in two surface colours: gold-coloured and chrome-plated



Assembly:

• The fastening is done using the five screws included in the scope of delivery (screws: two round head wood screw 3.1 x 10 mm, two round head wood screw 3.1 x 28 mm and 1 piece flat round head screw M3 x 25 mm)

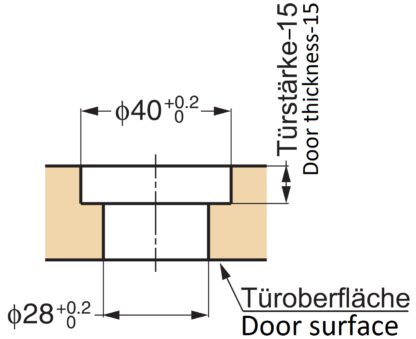

• For installation, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the edge of the door and the bore is 34 mm (1-11/32″)
• The push button PKL05RCR and PKLW is plugged into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the carcass side using the screws supplied. The vertical distance between the edge of the door and the strike plate is 49 mm (1-59/64″) (see assembly drawing for more details)



Features:

• Version: right
• Weight: 97 g
• Load capacity (load capacity): 10 kg (23 lbs)
• Size: 31 mm (1-7/32″)
• Available in two surface colours: gold-coloured and chrome-plated
• Easy to assemble
• Practical
• stable
• Elaborately machined surface
• Exclusive, high-quality optics
• chrome-plated
• Zinc alloy
• ZDC
• high brand quality of Sugatsune / LAMP®

For more dimensions and details, see technical drawing.

The dimensions:

• Snap closure diameter: ⌀31 mm (1-7/32″)



Included in delivery:

• 1 piece Push-button closure PKL05RCR and PKLW made of solid zinc alloy, chrome-plated, version: right
• Five pieces of screws: two pieces of round head wood screw 3.1 x 10 mm, two pieces of round head wood screw 3.1 x 28 mm and 1 piece of flat round head screw M3 x 25 mm made of stainless steel
• 1 piece housing
• 1 piece counterpart

Watch product video:

Additional Information:

• Download assembly instructions

Manufacturer’s reference number:

• Article ID: 140-015-030 and 140-012-822
• Item number: PKL05RCR and PKLW
• EAN number: 4510932000215 and 4510932000185

Manufacturer: Sugatsune / LAMP® (Japan)
