Description

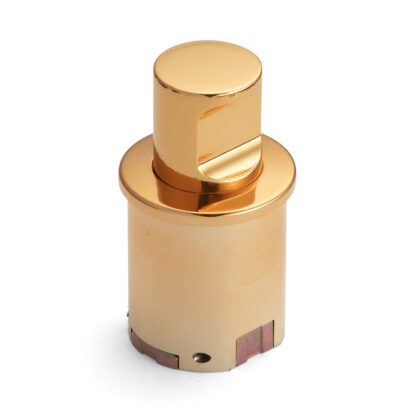

Exclusive snap fastener PKL05LGA and PKLW, made of solid zinc alloy (ZDC), surface: gold-coloured, glossy polished, finish: left
Application:
Massive snap button for yacht and much more.
The high-quality push-button closure PKL05LGA and PKLW is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cupboard doors do not open unintentionally during the journey or flight. When closed, the push button is recessed and thus protects against collisions. For door thicknesses between 15 mm (19/32″) and 25 mm (63/64″). Also possible to install from a door thickness of 13 mm (33/64″) using the optional PKL-Spacer/WHT spacer (the PKL-Spacer/WHT spacer is not included, please order separately).
To open the furniture door, the handle of the snap fastener must be PKL05LGA and PKLW pressed and thus released. The push button PKL05LGA and PKLW serves as a practical handle when open. These features make the push-button closure PKL05LGA and PKLW ideal for private planes and motorhomes and caravans.
The push button PKL05LGA and PKLW is suitable for doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″). The high-quality snap fasteners PKL05LGA and PKLW are ideal for:
- Motorhome
- Boat
- Caravan
- Private aircraft
- Superyacht
- Caravan
- Camper Van
- Yacht
Material:
- The PKL05LGA and PKLW snap fasteners are made of solid zinc alloy (ZDC)
Surface:
- Gold-coloured, shiny polished
- Gold-coloured surfaces give rooms a luxurious and elegant character that exudes warmth and exclusivity
- They reflect light in a subtle way, creating a welcoming atmosphere.
- They can also be combined in a variety of ways with different colours and materials to emphasise modern or classic designs.
- The snap fasteners PKL05LGA and PKLW look solid and extremely high-quality

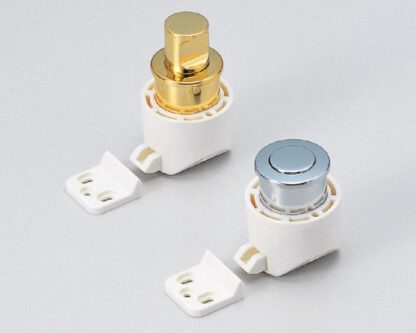

- Available in two surface colours: gold-coloured and chrome-plated
- Available in two orientations: left and right
Assembly:
- The fastening is done using the five screws included in the scope of delivery (screws: two round head wood screw 3.1 x 10 mm, two round head wood screw 3.1 x 28 mm and 1 piece flat round head screw M3 x 25 mm)

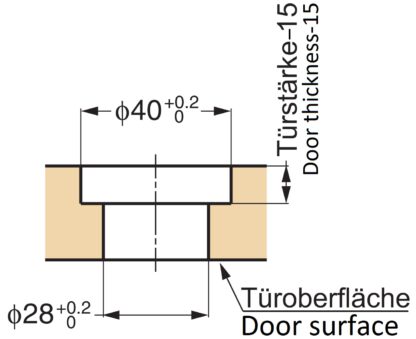

- For installation, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
- The distance between the edge of the door and the bore is 34 mm (1-11/32″)
- The push button PKL05LGA and PKLW is inserted into the front and the housing is screwed on from the back using the supplied screw
- The strike plate is then attached to the carcass side using the screws supplied. The vertical distance between the edge of the door and the strike plate is 49 mm (1-59/64″) (see assembly drawing for more details)
Features:
- Version: left
- Weight: 97 g
- Load capacity (load capacity): 10 kg (23 lbs)
- Size: 31 mm (1-7/32″)
- Available in two surface colours: gold-coloured and chrome-plated
- Available in two variants: left and right
- Easy to assemble
- Practical
- stable
- Elaborately machined surface
- Exclusive, high-quality optics
- gold-coloured, glossy polished
- Zinc alloy
- ZDC
- high brand quality of Sugatsune / LAMP®
For more dimensions and details, see technical drawing.
The dimensions:
- Snap closure diameter: ⌀31 mm (1-7/32″)
Included in delivery:
- 1 piece Push-button closure PKL05LGA and PKLW made of solid zinc alloy, gold-coloured, glossy polished, version: left
- Five pieces of screws: two pieces of round head wood screw 3.1 x 10 mm, two pieces of round head wood screw 3.1 x 28 mm and 1 piece of flat round head screw M3 x 25 mm made of stainless steel

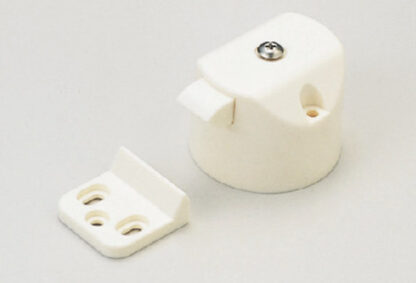

- 1 piece housing
- 1 piece counterpart
Watch product video:
Additional Information:
Manufacturer’s reference number:
- Article ID: 140-015-028 and 140-012-822
- Item number: PKL05LGA and PKLW
- EAN number: 4510932000208 and 4510932000185
Manufacturer: Sugatsune / LAMP® (Japan)
