Description

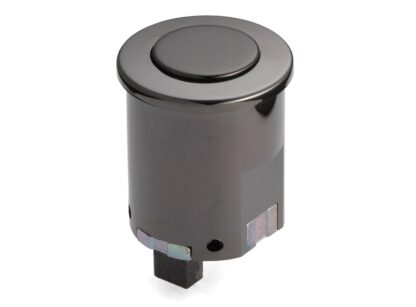

Exclusive push-button closure PKL-08/BN and PKLB, made of solid zinc alloy (ZDC), surface: black nickel
Application:
Massive push button for caravan, yacht and much more.

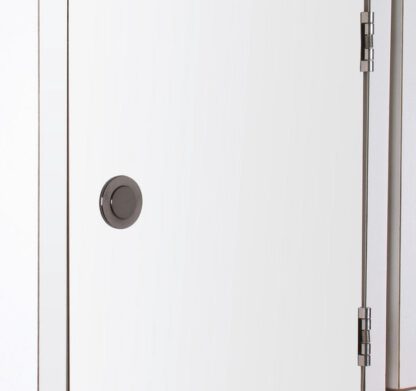

The high-quality push-button closure PKL-08/BN and PKLB is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight. When closed, the push button is recessed and thus protects against collisions. The PKL-08/BN and PKLB push button is suitable for door thicknesses between 15 mm (19/32″) and 30 mm (1-3/16″).
Also possible to install from a door thickness of 11 mm (7/16″) using the optional PKL-Spacer/WHT spacer (the PKL-Spacer/WHT spacer is not included, please order separately). To open the furniture door, the handle of the PKL-08/BN and PKLB push-button fastener must be pressed and thus released. The push button PKL-08/BN and PKLB serves as a practical handle when open.
These features make the PKL-08/BN and PKLB snap fasteners ideal for private ships, aircraft, motorhomes and caravans. The high-quality snap fasteners PKL-08/BN and PKLB are ideal for:
- Private aircraft
- Caravan
- Boat
- Motorhome
- Superyacht
- Camper Van
- Caravan
- Yacht
Material:
- The PKL-08/BN and PKLB snap fasteners are made of solid zinc alloy (ZDC)
- Die-cast zinc is a durable and versatile material for furniture fittings that impresses with its high strength
- The ability to cast it into aesthetically pleasing shapes make it ideal for high-end furniture fittings and accessories
- In addition, ZDC is corrosion-resistant and recyclable
Surface:
- Black nickel
- The surface colour black nickel gives a high-quality look and an elegant and modern look
- It offers high resistance to scratches and wear and tear, which increases its durability in everyday life
- In addition, black nickel is easy to clean and retains its noble shine over a long period of time
- The PKL-08/BN and PKLB snap fasteners look solid and extremely high-quality
- Available in three surface colours: gold-coloured, chrome-plated and black-nickel
Assembly:
- The fastening is done using the six screws included in the scope of delivery (screws: three round head wood screw 3.1 x 10 mm, two round head wood screw 3.1 x 28 mm and 1 piece flat round head screw M3 x 25 mm)

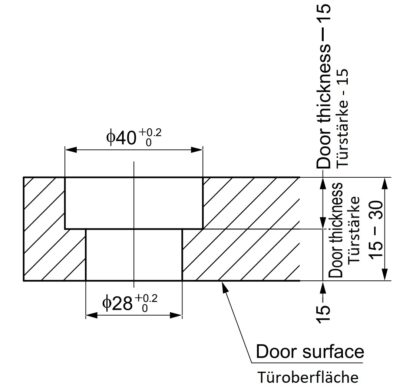

- For installation, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
- The distance between the edge of the door and the bore is 34 mm (1-11/32″)
- The PKL-08/BN and PKLB push button is inserted into the front and the housing is screwed on from the back using the supplied screw
- The strike plate is then attached to the carcass side using the screws supplied. The vertical distance between the edge of the door and the strike plate is 49 mm (1-59/64″) (see assembly drawing for more details)
Features:
- Weight: 89g
- Load capacity (load capacity): 10 kg (23 lbs)
- Size: 31 mm (1-7/32″)
- Available in three surface colours: gold-coloured, chrome-plated and black-nickel
- Easy to assemble
- Practical
- stable
- Elaborately machined surface
- Exclusive, high-quality optics
- Suitable for internal (enclosed) and surface-mounted (existing) furniture doors
- Black nickel
- Zinc alloy
- ZDC
- Zinc die casting
- high brand quality of Sugatsune / LAMP®
For more dimensions and details, see technical drawing.
The dimensions:
- Snap closure diameter: ⌀31 mm (1-7/32″)
Included in delivery:
- 1 piece PKL-08/BN and PKLB snap fastener made of solid zinc alloy, black nickel
- Six pieces of screws: three pieces of round head wood screw 3.1 x 10 mm, two pieces of round head wood screw 3.1 x 28 mm and 1 piece of flat round head screw M3 x 25 mm made of stainless steel
- 1 piece housing
- 1 piece counterpart
Additional Information:
Manufacturer’s reference number:
- Article ID: 140-019-793 and 140-012-821
- Item number: PKL-08/BN and PKLB
- EAN number: 4510932057486 and 4510932000161
Manufacturer: Sugatsune / LAMP® (Japan)
