Description

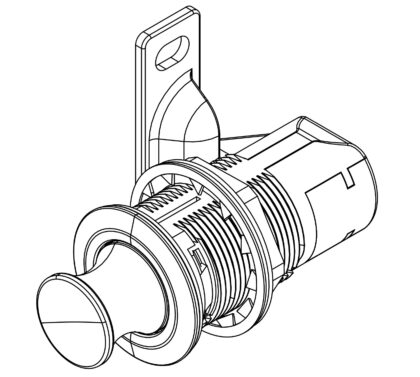

High-quality push-button closure with latch lock Function 14.03.060-0, made of solid die-cast zinc, surface: chrome-plated, version: round
Application:
Solid push button for caravan, yacht, caravan and much more.
The round design offers ergonomic handling, reduces the risk of injury due to sharp edges and blends harmoniously into different furnishing styles. The push-button lock 14.03.060-0 is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight. In addition, the furniture fronts look minimalist thanks to the retractable furniture handle. There are no annoying door handles and the risk of injury is minimized.

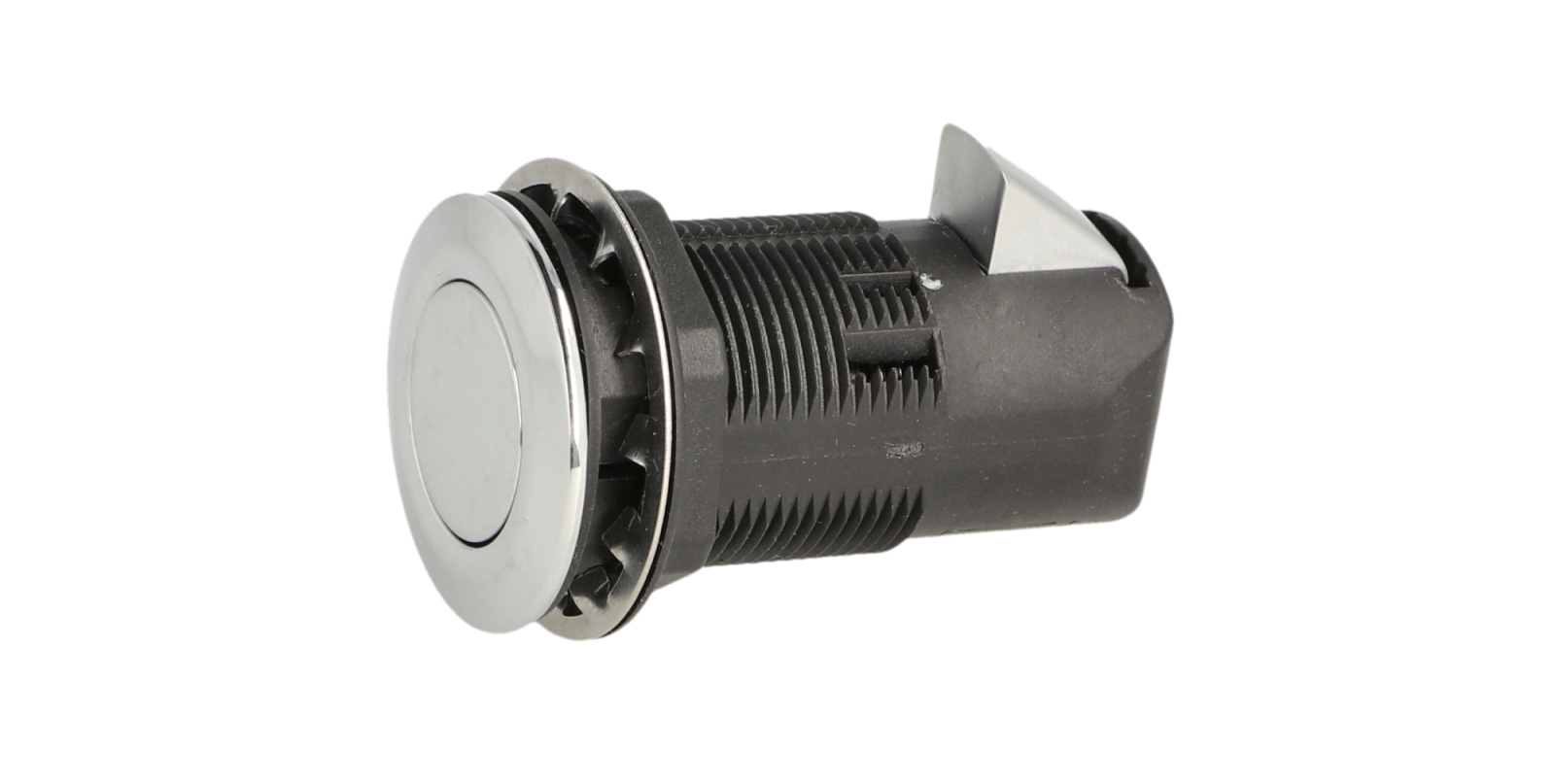

When closed, the push button is recessed and thus protects against collisions. The push button 14.03.060-0 is suitable for door thicknesses between 6 mm (15/64″) and 22 mm (55/64″). To open the furniture door, the handle of the push button lock 14.03.060-0 must be printed and thus released.

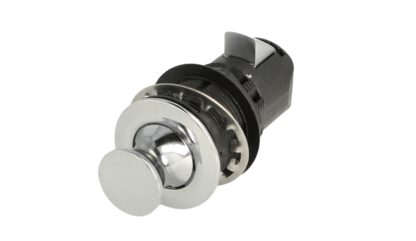

The push button 14.03.060-0 serves as a practical handle with a length of 18.5 mm (47/64″) when open. These features make the 14.03.060-0 snap fastener ideal for private ships, airplanes, motorhomes and caravans. The high-quality snap fasteners 14.03.060-0 are ideal for, among other things:
- Boat
- Cabinet door
- Drawer
- Motorhome
- Superyacht
- Camper Van
- Private aircraft
- Caravan
- Yacht
- Caravan
Material:
- The snap fasteners 14.03.060-0 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Surface:
- Chrome-plated
- Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
- They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
- In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
Assembly:
- Fastening is done using the two screws included in the scope of delivery

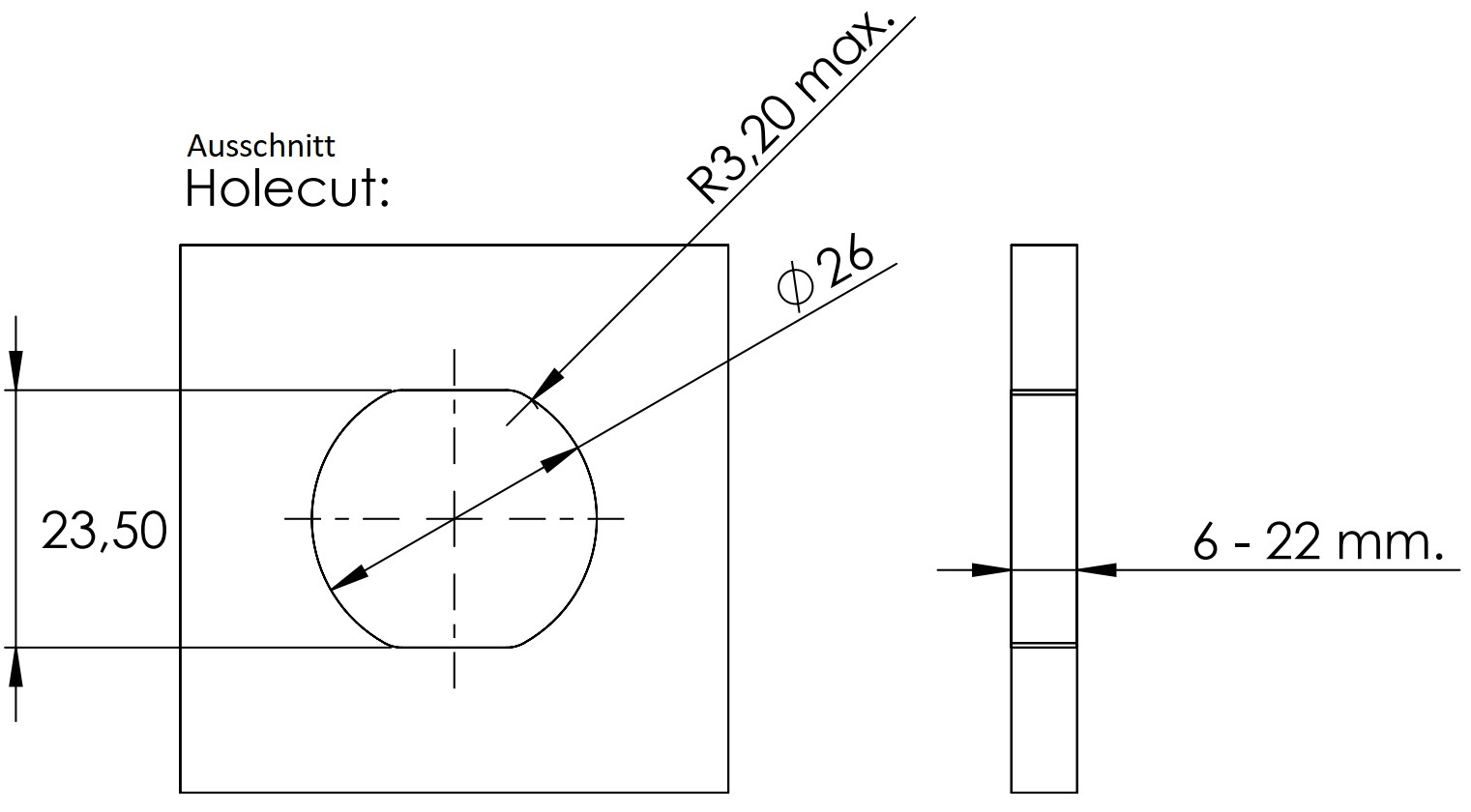

- For mounting, a hole with a diameter of ⌀26 mm (1-1/32″) must be drilled in the front
- The push button 14.03.060-0 is inserted into the front and the housing is screwed on from the back using the supplied fastening nut
- The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)
Features:
- Finish: round
- For door thicknesses from 6 mm (15/64″) to 22 mm (55/64″)
- Weight: 110g
- Size: 32 mm (1-17/64″)
- Available in two surface colours: nickel-plated and chrome-plated
- Easy to assemble
- Practical
- stable
- Compact design
- Suitable for internal (enclosed) and surface-mounted (existing) furniture doors
- The snap fasteners 14.03.060-0 look solid and high-quality
- chrome-plated
- Zamak
- Zinc die casting
- high brand quality of UMAXO®

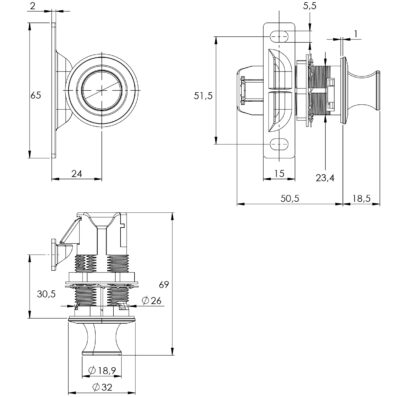

For more dimensions and details, see technical drawing.
The dimensions:
- Snap closure diameter: ⌀32 mm (1-17/64″)
- Pressure Handle Diameter: ⌀18.9 mm (3/4″)
- Lock Depth: 50.5 mm (1-63/64″)
- Button handle length: 18.5 mm (47/64″)

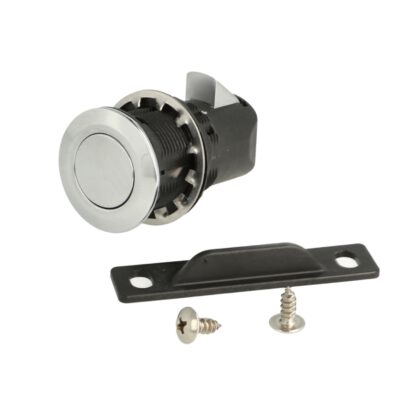

Included in delivery:
- 1 piece push-button fastener 14.03.060-0 made of solid die-cast zinc, chrome-plated, version: round
- Two-piece fastening screw
- 1 piece housing
- 1 piece counterpart
- 1 piece of fastening nut
Additional Information:
Manufacturer’s reference number:
- Article ID: 14.03.060-0
- EAN number: 5704866516907
Manufacturer: SISO Denmark
