High-quality snap fastener with handle function, made of zinc alloy (ZDC), surface: chrome-plated, version: square, DPL-SQ-CR. Solid snap fastener for motorhome, boat and much more, by Sugatsune / LAMP® (Japan)

Description

Exclusive DPL-SQ-CR snap fastener, made of solid zinc alloy (ZDC), surface: chrome-plated, finish: square

Application:

Massive push button for RV, boat and much more.



The square design offers a modern, clean aesthetic as well as high stability, and facilitates precise assembly thanks to straight edges and symmetrical shapes. The high-quality DPL-SQ-CR push-button closure is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight. When closed, the push button is recessed and thus protects against collisions.



To open the furniture door, the handle of the DPL-SQ-CR snap fastener must be printed and thus released. The DPL-SQ-CR push button serves as a practical handle when open. These features make the DPL-SQ-CR snap fastener ideal for private planes and motorhomes and caravans.



The DPL-SQ-CR push button is suitable for doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″). The high-quality DPL-SQ-CR snap fasteners are ideal for:

• Caravan
• Private aircraft
• yacht
• Caravan
• Motorhome
• Boat

Material:

• The DPL-SQ-CR snap fasteners are made of solid zinc alloy (ZDC)

Surface:



• Chrome-plated
• Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
• They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
• In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
• The DPL-SQ-CR snap fasteners look solid and extremely high-quality
• Available in three surface colours: gold-coloured, chrome-plated and nickel-plated matt



Assembly:

• The fastening is done using the seven screws included in the scope of delivery (screws: two pan head screws, self-tapping 4 x 20 mm and five pieces flat head self-tapping screw 3 x 14 mm)

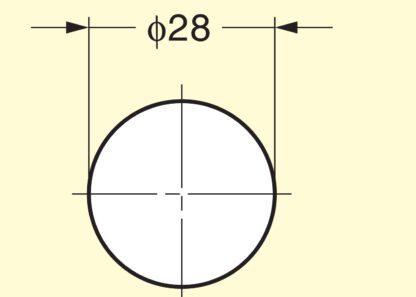

• For installation, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the bore is 38 mm (1-1/2″)
• The DPL-SQ-CR push button is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)



Features:

• Design: square
• Weight: 78g
• Load capacity (load capacity): 10 kg (23 lbs)
• Size: 32 mm (1-17/64″)
• Available in three surface colours: gold-coloured, chrome-plated and nickel-plated matt
• Easy to assemble
• Practical
• stable
• Elaborately machined surface
• Exclusive, high-quality optics
• chrome-plated
• Zinc alloy
• ZDC
• high brand quality of Sugatsune / LAMP®

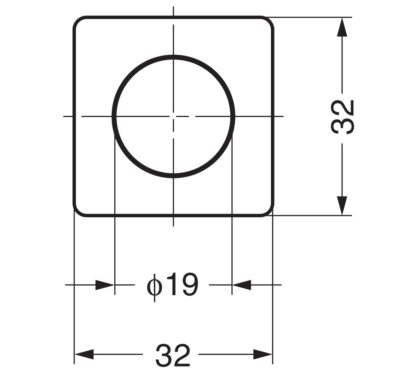

For more dimensions and details, see technical drawing.

The dimensions:

• Snap closure diameter: ⌀32 mm (1-17/64″)
• Snap Diameter: ⌀19 mm (3/4″)
• Closing Housing Length: 30 mm (1-3/16″)





Included in delivery:

• 1 piece DPL-SQ-CR snap fastener made of solid zinc alloy, chrome-plated, version: square
• Seven pieces of screws: two pieces of pan head screw, self-tapping 4 x 20 mm and five pieces of flat head self-tapping screw 3 x 14 mm made of stainless steel
• 1 piece housing
• 1 piece counterpart

Watch product video:

Additional Information:

• • Download assembly instructions

Manufacturer’s reference number:

• • • Article ID: 140-014-738
    • SKU: DPL-SQ-CR
    • EAN number: 4510932016797

Manufacturer: Sugatsune / LAMP® (Japan)
