Description
Exclusive push-button closure with soft-close damper 14.03.045-0, made of solid die-cast zinc, surface: white, design: rectangular
Application:
Massive push button for caravan, yacht and much more.
The high-quality push-button closure 14.03.045-0 is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight.
When closed, the push button is recessed and thus protects against collisions.
The push button 14.03.045-0 is suitable for door thicknesses between 12 mm (15/32″) and 16 mm (5/8″).
To open the furniture door, the handle of the push-button lock 14.03.045-0 must be printed and thus released.
The push button 14.03.045-0 serves as a practical handle with a length of 56 mm (2-13/64″) when opened.
The special feature of the push-button fastener 14.03.045-0 is that the counterpart (strike plate) has two spring-loaded buffers. When closing, these buffers ensure that the door closes smoothly and does not make any noise while driving.
These features make the 14.03.045-0 snap fastener ideal for private ships, aircraft, motorhomes and caravans.
The high-quality snap fasteners 14.03.045-0 are ideal for, among other things:
- Private aircraft
- Caravan
- Boat
- Motorhome
- Superyacht
- Camper Van
- Caravan
- Yacht
Material:
- The snap fasteners 14.03.045-0 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Surface:
- White
- White finishes convey a clean and modern aesthetic
- The colour white reflects light effectively, making rooms look brighter and visually larger
- In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use
Assembly:
- Fastening is done using the five screws included in the scope of delivery
- For installation, a cut-out with a width of 56 mm (2-13/64″) and a height of 14.5 mm (37/64″) must be made in the front
- The push button 14.03.045-0 is inserted into the front and the housing is screwed on from the back using the supplied screw
- The strike plate is then attached to the carcass side using the screws supplied
- A 3 mm thick spacer for thin fronts is included in the scope of delivery and can be used if necessary (for further details see assembly drawing)
Features:
- Finish: rectangular
- Weight: 124 g
- Size: 79.5 mm (3-1/8″)
- Available in four surface colours: nickel-plated, white, black and stainless steel look
- Easy to assemble
- Practical
- stable
- Compact design
- Elaborately machined surface
- Exclusive, high-quality optics
- Suitable for internal (enclosed) and surface-mounted (existing) furniture doors
- The snap fasteners 14.03.045-0 look solid and extremely high-quality
- white
- Zamak
- Zinc die casting
- high brand quality of UMAXO®

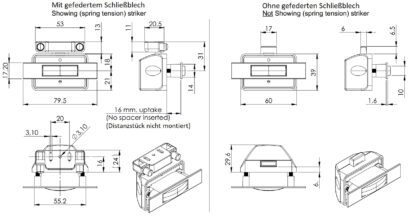

For more dimensions and details, see technical drawing.
The dimensions:
- Snap closure width: 79.5 mm (3-1/8″)
- Height: 17.2 mm (43/64″)
- Lock width: 60 mm (2-23/64″)

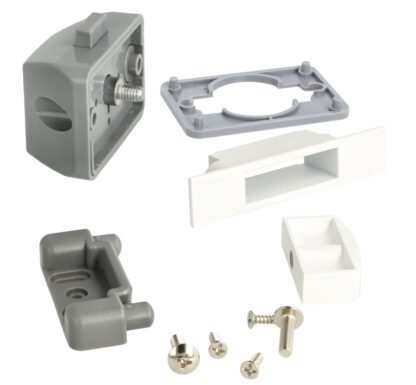

Included in delivery:
- 1 piece snap fastener 14.03.045-0 made of solid die-cast zinc, white, design: rectangular
- Five pieces of fastening screw
- 1 piece lock made of ABS, colour: grey
- 1 piece front cover made of zamak, colour: white
- 1 piece counterpart made of ABS with spring-loaded buffers, colour: grey
- 1 piece spacer (3 mm), colour: grey
Additional Information:
Manufacturer’s reference number:
- Article ID: 14.03.045-0
- EAN number: 5704866034630
Manufacturer: SISO Denmark
