Description
Folding top suction made of high-quality stainless steel (V4A), with damping, surface: glossy polished, EY-R50
Application:
V4A folding padeye for shipbuilding, yachts, loops stops, outdoor, humid environment, harsh environment and much more.
The EY-R50 folding deck vacuums have a soft-motion function in the hinge. It has a constant torque that prevents rattling on the deck.
The EY-R50 folding padeye is perfect for the seat belt or safety line, if necessary it can be easily folded up.
The EY-R50 folding deck suction is the optimal solution for attachment points.
The folding function of the EY-R50 folding padeyes helps to keep the deck and aisles clear.

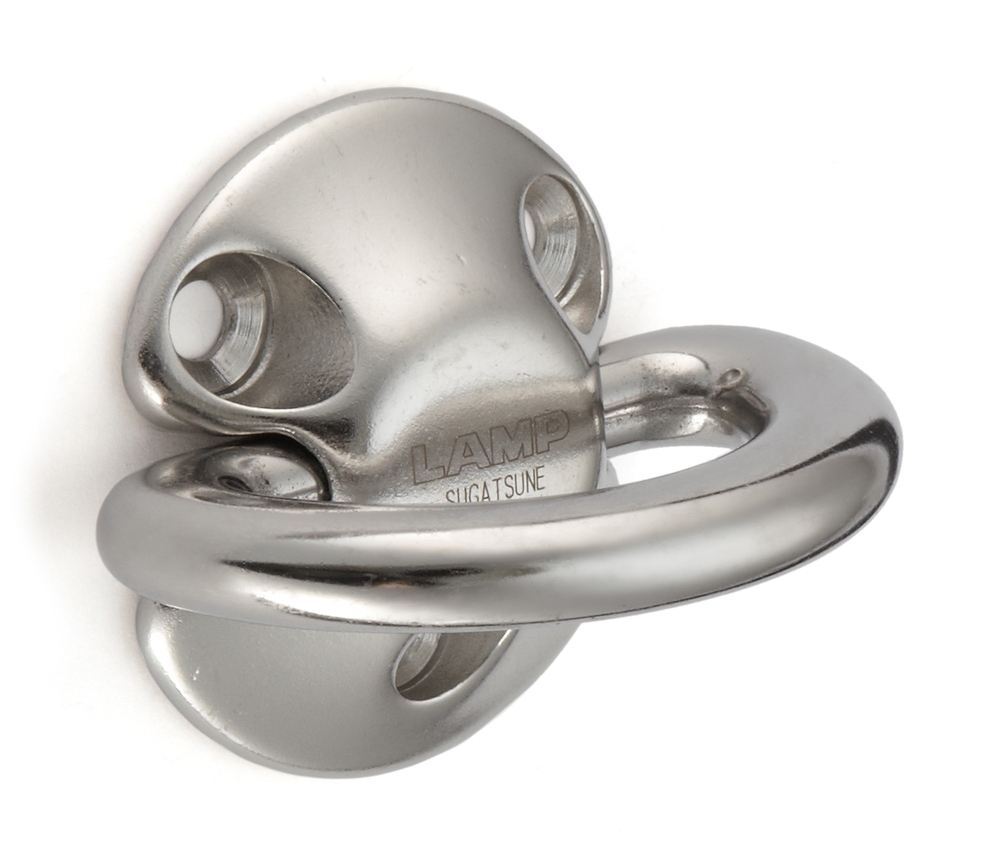

You can open these hinged deck eyes at any time and attach a snap block or fender. Otherwise, they are folded safely and flat on the deck.
The base with three mounting screws is also ideal for heavy loads.
The high-quality EY-R50 folding deck vacuums have a simple and robust design and are ideal for:
- Cordage Stops
- Stretch rope
- Gripes
- Hole Point
- Lashing
- Lifting Points
- Fender
- Leash
- Shipbuilding
- Yachts
- Loops Stops
- Outdoor area
- humid environment
- harsh environment
Material:
- The EY-R50 folding deck vacuums are made of high-quality stainless steel (V4A)
- SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
- Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used for use near the coast and are expressly recommended
Surface:
- Shiny polished
Assembly:
- Fastening is done using the screws included in the scope of delivery (countersunk screw M5 × 16 mm)
- The fastening screws are also made of stainless steel
- The EY-R50 folding deck suction has three mounting holes with the distance horizontally (P1) 28 mm (1-7/64″) and vertically (P2) 24 mm (15/16″)
- The diameter of the mounting holes is ⌀5.5 mm (7/32″)
Features:
- Weight: 116g
- Load capacity (load capacity): 4900 N (500 kp)
- Size: 56.5 mm (2.3″)
- high-quality
- stable
- Shiny polished
- weatherproof
- Stainless (corrosion-free)
- high brand quality from Sugatsune / LAMP®

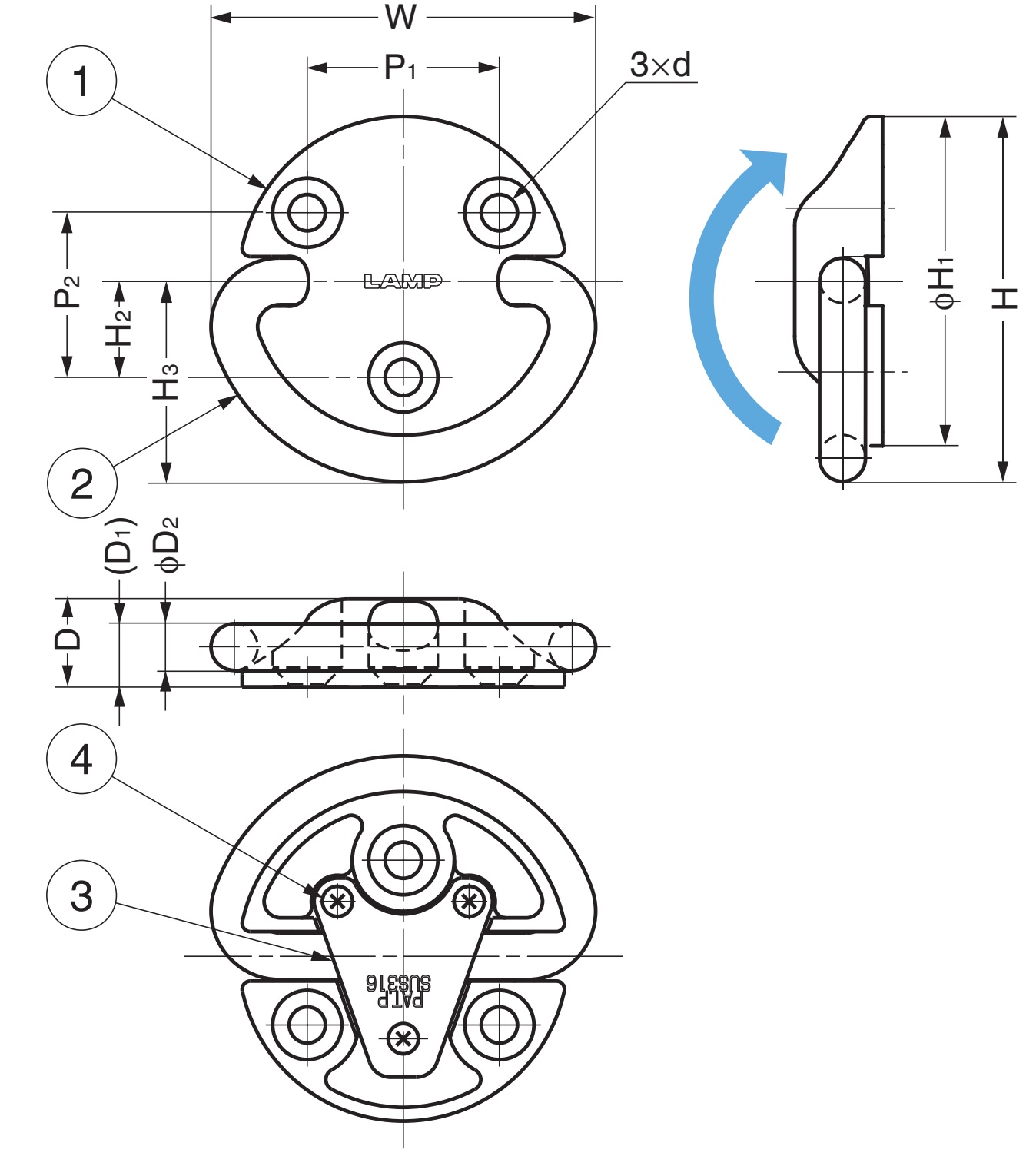

For more dimensions and details, see technical drawing.
The dimensions:
- Width of the hinged padeye (W): 56.5 mm (2-7/32″)
- Length (H): 54 mm (2-1/8″)
- Height (D): 14.5 mm (37/64″)
- Shackle material thickness (⌀D2): ⌀7.5 mm (19/64″)

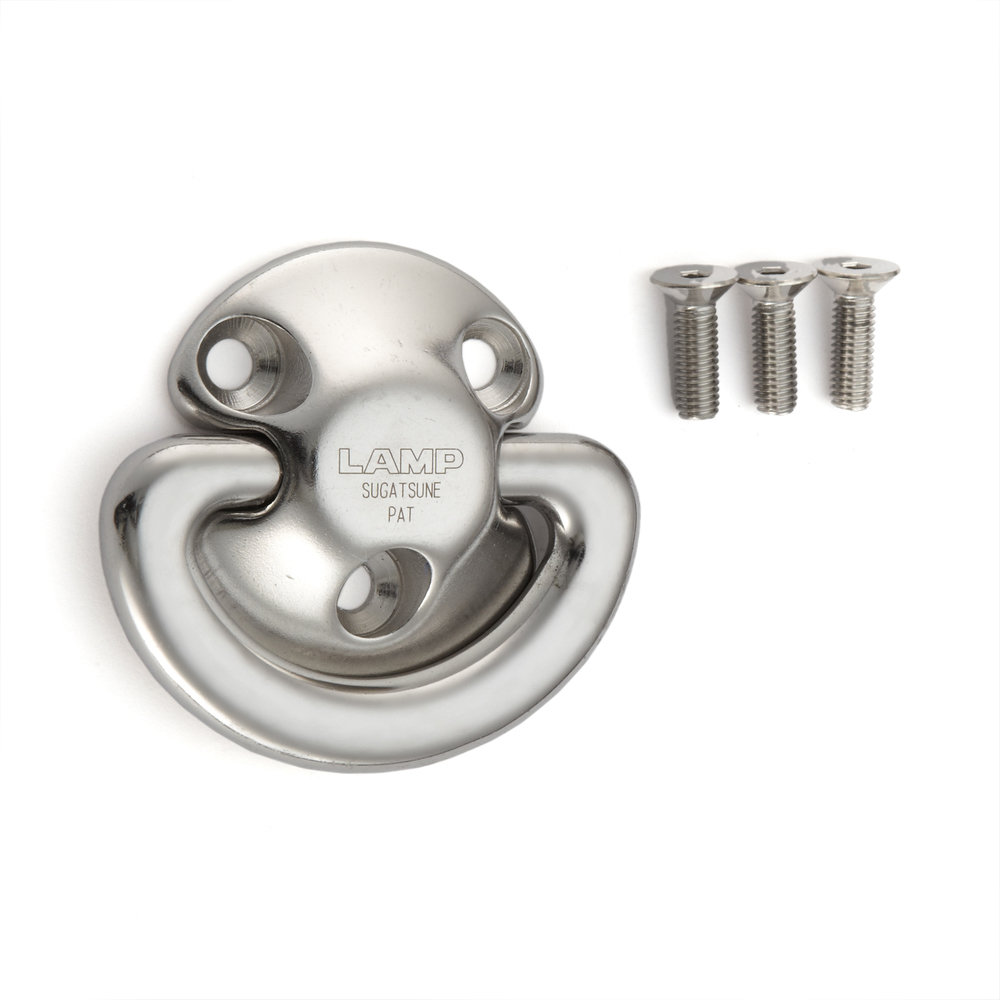

Included in delivery:
- 1 piece folding top suction EY-R50 made of high-quality stainless steel, polished to a gloss finish
- 3 pcs countersunk screw M5 × 16 mm made of stainless steel
Watch product video:
Manufacturer’s reference number:
- Article ID: 110-012-542
- Item number: EY-R50
- EAN number: 4510932013048
Manufacturer: Sugatsune / LAMP® (Japan)
