Description
Hook with safety flap made of high-quality stainless steel (V4A), surface: glossy polished, EN-E107
Application:
Rope hook with safety lock made of V4A for shipbuilding, outdoor, humid environment, harsh environment and much more.
The hooks with safety flap EN-E107 (eyelet hook) have a spring-loaded cap that closes automatically as soon as the rope, cord or cable has been hung up. This prevents these objects from detaching from the hook on their own.
The special feature of this rope hook is that the safety flap opens not only downwards, but also upwards. To do this, the spring-loaded front has to be pushed down, then the safety flap opens automatically upwards.
This means that, despite the compact design of the hook with EN-E107 safety device, ropes with a diameter of up to ⌀20 mm (25/32″) can also be attached
The EN-E107 spring hook can also be used perfectly as a line holder.
The stainless steel hook EN-E107 is suitable for rope or chain with a maximum diameter of ⌀20 mm (25/32″).
The EN-E107 high-quality hooks with safety flap have a simple and robust design and are ideal for:
- Leash
- Shipbuilding
- outdoor area
- humid environment
- harsh environment
Material:
- The hooks with safety flap EN-E107 are made of high-quality stainless steel (V4A)
- SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
- Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used for use near the coast and are expressly recommended
Surface:
- Polished to a shine
Assembly:
- The fastening is done with the help of the screws included in the scope of delivery (countersunk self-tapping screw 4 x 25 mm)
- The fastening screws are also made of stainless steel
- The hook with safety flap EN-E107 has two mounting holes with a distance of 86 mm (3-25/64″)
Features:
- Weight: 131 g
- Load capacity: 392 N (40 kp)
- Size: 107 mm (4.3″)
- high-quality
- stable
- Polished to a shine
- weatherproof
- Stainless (corrosion-free)
- high brand quality of Sugatsune / LAMP®

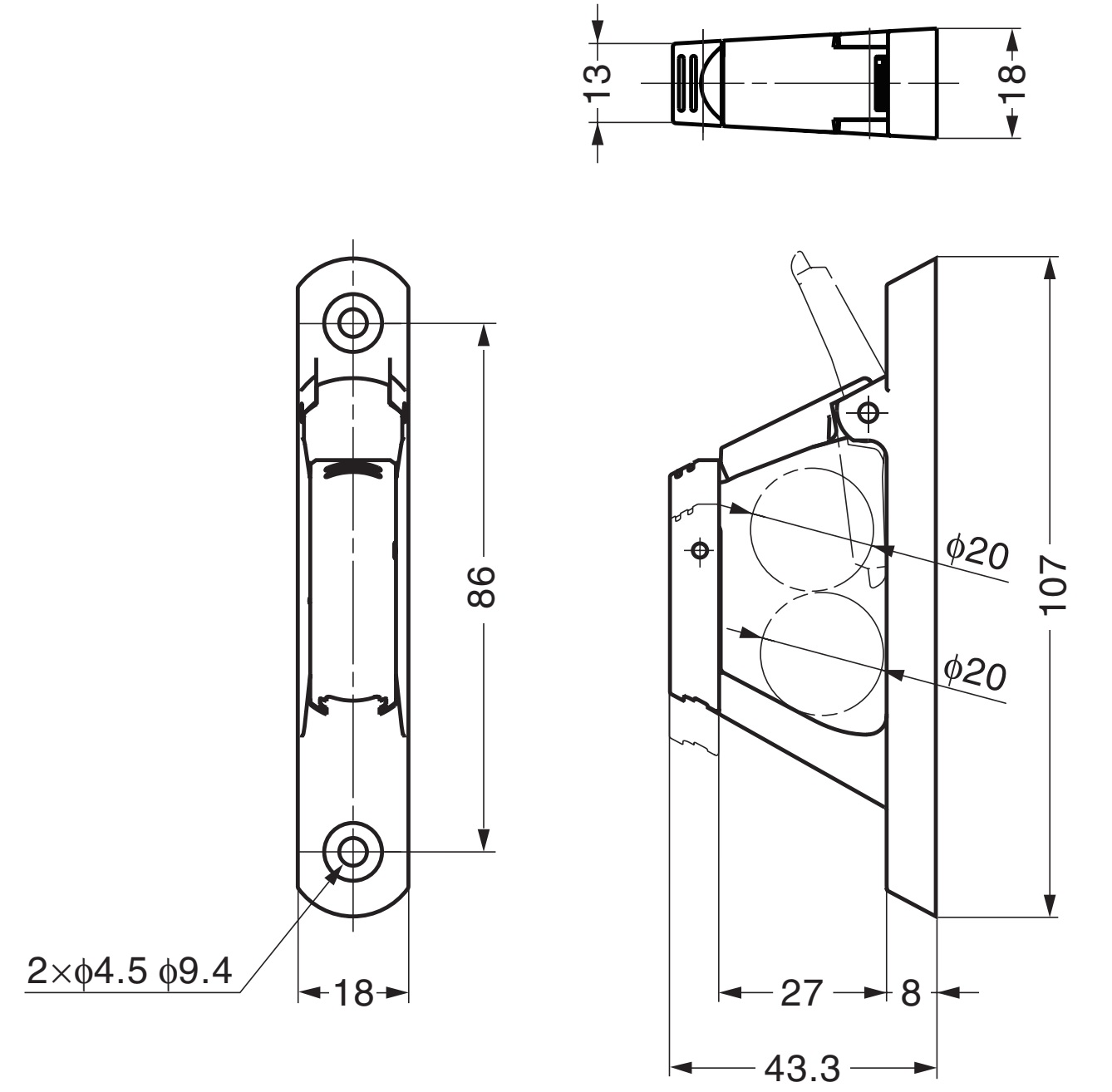

For further dimensions and details see technical drawing .
The dimensions:
- Length of hook with safety: 107 mm (4-7/32″)
- Depth: 43.3 mm (1-45/64″)
- Width: 18 mm (45/64″)
Included in delivery:
- 1 piece hook with safety flap EN-E107 made of high-quality stainless steel, glossy polished
- 2 pieces countersunk self-tapping screw 4 x 25 mm made of stainless steel
Watch product video:
Manufacturer’s reference number:
- Article ID: 110-028-722
- Item number: EN-E107
- EAN Number: 4510932161756
Manufacturer: Sugatsune / LAMP® (Japan)
