Large stainless steel handle shell V2A (SUS304), 260 mm (10.3″) HH-M200. High-quality, solid and robust stainless steel handle shell made of stainless steel V2A (SUS304), mirror polished, for large doors, ships, special vehicles from Sugatsune / LAMP® (Japan)

Description

Large robust stainless steel handle shell made of stainless steel V2A (SUS304 or 1.4301) HH-M200

Application:



High-quality solid and robust stainless steel handle shell made of stainless steel V2A (SUS304), glossy polished, for large doors, ships, special vehicles.

Completely made of stainless steel.

Large grip area allows easy grip even with gloves.



The handle does not protrude beyond the surface of the door.

The HH-M200 stainless steel handle shells can be used both horizontally and vertically.

The information on the load capacity refers to the handle shell. The door must also have a correspondingly high load capacity.

Thanks to its mirror-polished surface, the handle shell also blends seamlessly into high-quality stainless steel and glass systems and gives doors a maritime premium look.

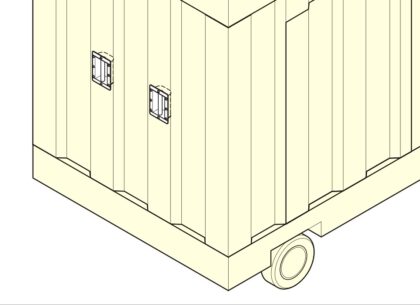

The high quality HH-M200 stainless steel handle shells are ideal for:

• Big doors
• Ships
• Special vehicles
• humid environments
• Container
• Cruise ships

Material:

The HH-M200 stainless steel handle shells are made of high quality SUS304 stainless steel.

They are corrosion resistant and rustproof.

Surface:

• Polished to a shine
• The HH-M200 stainless steel handle shells appear high-quality and robust

Assembly:

• Fastening is done using the screws included in the scope of delivery (M6 x 16 mm)
• The fastening screws are also made of stainless steel

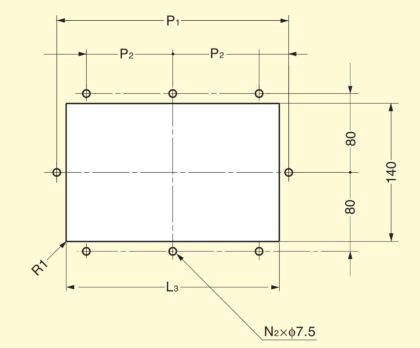

• For installation, a 218 mm (8-19/32″) x 140 mm (5-1/2″) cut-out must be made on the door (see assembly drawing for more details)



Features:

• Weight: 2600g
• Load capacity (load capacity): 4500 N (459.2 kp)
• Size: 260mm (10.3″)
• Completely made of stainless steel
• Large grip area
• Suitable for use with gloves
• Housing and handle area: rectangular
• Available in two sizes
• Stable
• Solid
• Robust
• stainless
• Corrosion resistant
• High quality

Dimensions:

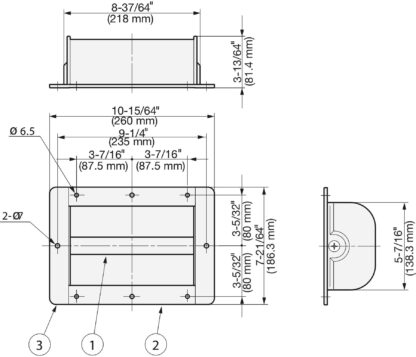

For more dimensions and details, see technical drawing.

• Width of stainless steel handle shell: 260 mm (10-1/4″)
• Height: 186.3mm (7-11/32″)
• Handle bar diameter: ⌀27.2 mm (1-2/32″)
• Distance between holes (P1): 235 mm (9-1/4″)
• Distance between holes (P2): 87.5 mm (3-7/16″)



Included in delivery:

• 1 piece stainless steel handle shell HH-M200 made of stainless steel SUS304 (V2A or 1.4301)
• Eight pieces of fastening screws M6 x 16 mm made of stainless steel
• Eight Pieces Stainless Steel M6 Screw Nut

Manufacturer’s reference number:

• Article number: 100-012-306
• Item name: HH-M200
• EAN number: 4510932010047

Manufacturer: SUGATSUNE / LAMP® (Japan)
